12-1. GENERAL DESCRIPTION
In this gear shifting control system, by its mechanical structure, the movement of the gear shift lever,
which is located beside the driver’s seat, directly actuates the gear shift fork shaft to shift the gear into the
selected position. This system consists of the following parts.
I.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
Gear shift lever knob
Gear shift lever
Gear shift lever boot No. 2
Gear shift lever boot No. 1
Gear shift lever case cover
Gear shift lever locating bolt
Gear shift lever case
Reverse select pin screw
Reverse select locating springs
Reverse select locating ball
Reverse select guide pin
Reverse gear shift fork shaft
High speed gear shift fork shaft
Select return springs
Low speed select pin bolt
Low speed select guide pin
Low speed gear shift fork shaft
Gear shift lever wave washer
Gear shift lever seat

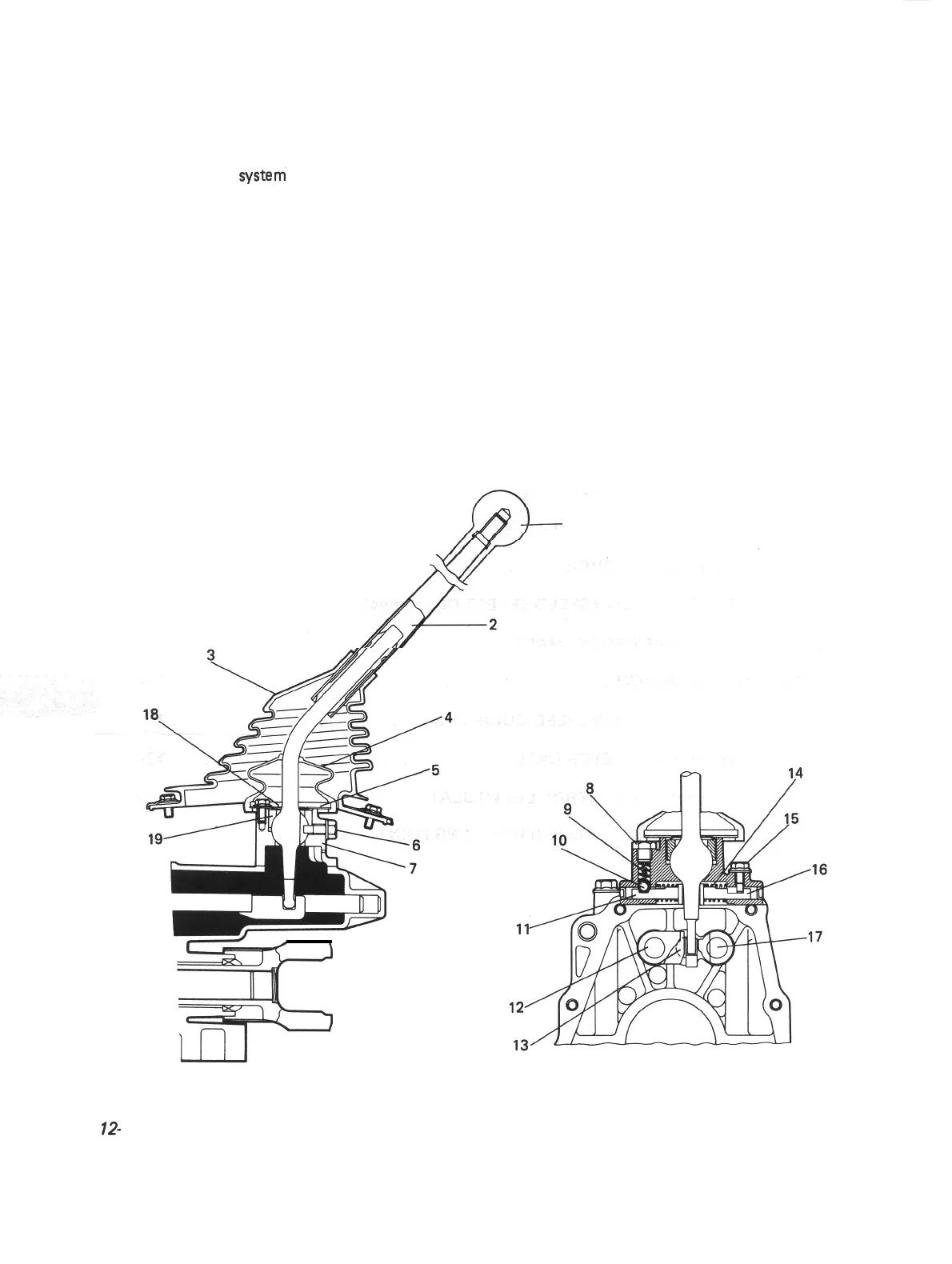

1
Fig. 12- 1
12-2
