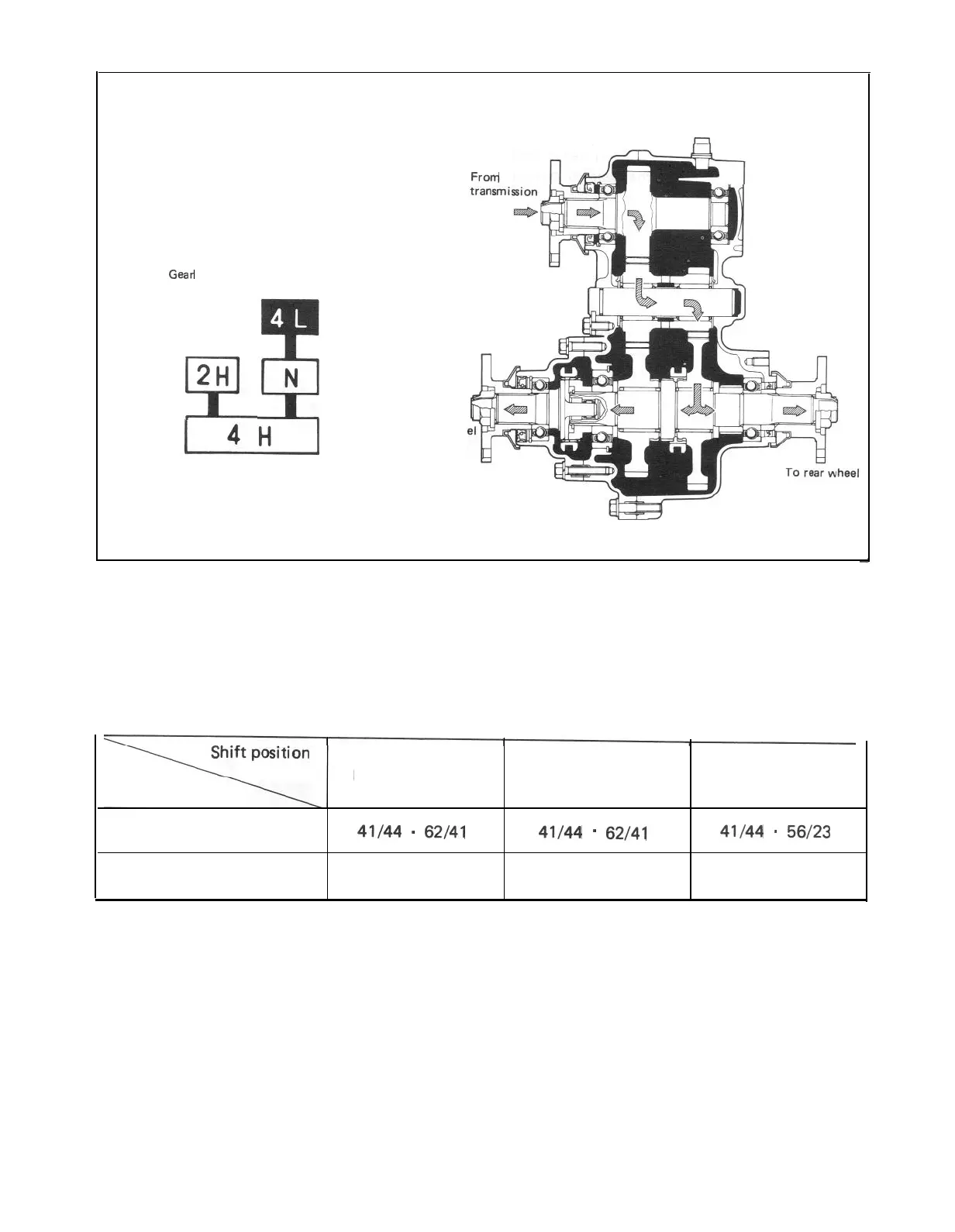

4-Wheel Drive LOW (All-Wheel Drive on LOW)

Gear shift control lever position

4-wheel

drive LOW

Front shifterforkactuates front clutch to couple

rear shaft to front shaft; and rear shifter fork

actuates rear clutch to couple “low” gear to rear

shaft. Front shaft and rear shaft run together on

From

LOW.

To front whe

Fig. 14-4

14-3. GEAR RATIO DATA

Gear

Reduction

Rear-wheel drive

41/44

62/41

1.409

All-wheel drive high

41/44

62/41

1.409

All-wheel drive low

41/44

56/23

2.268

14-4
