4-4. ACCELERATOR PEDAL
PRECAUTIONS TO BE TAKEN IN ACCELERATOR PEDAL INSTALLATION
“A’,
-w/i
Apply grease to accelerator
cable hook hole of pedal.
Install accelerator pedal
return spring securely as
shown in figure.

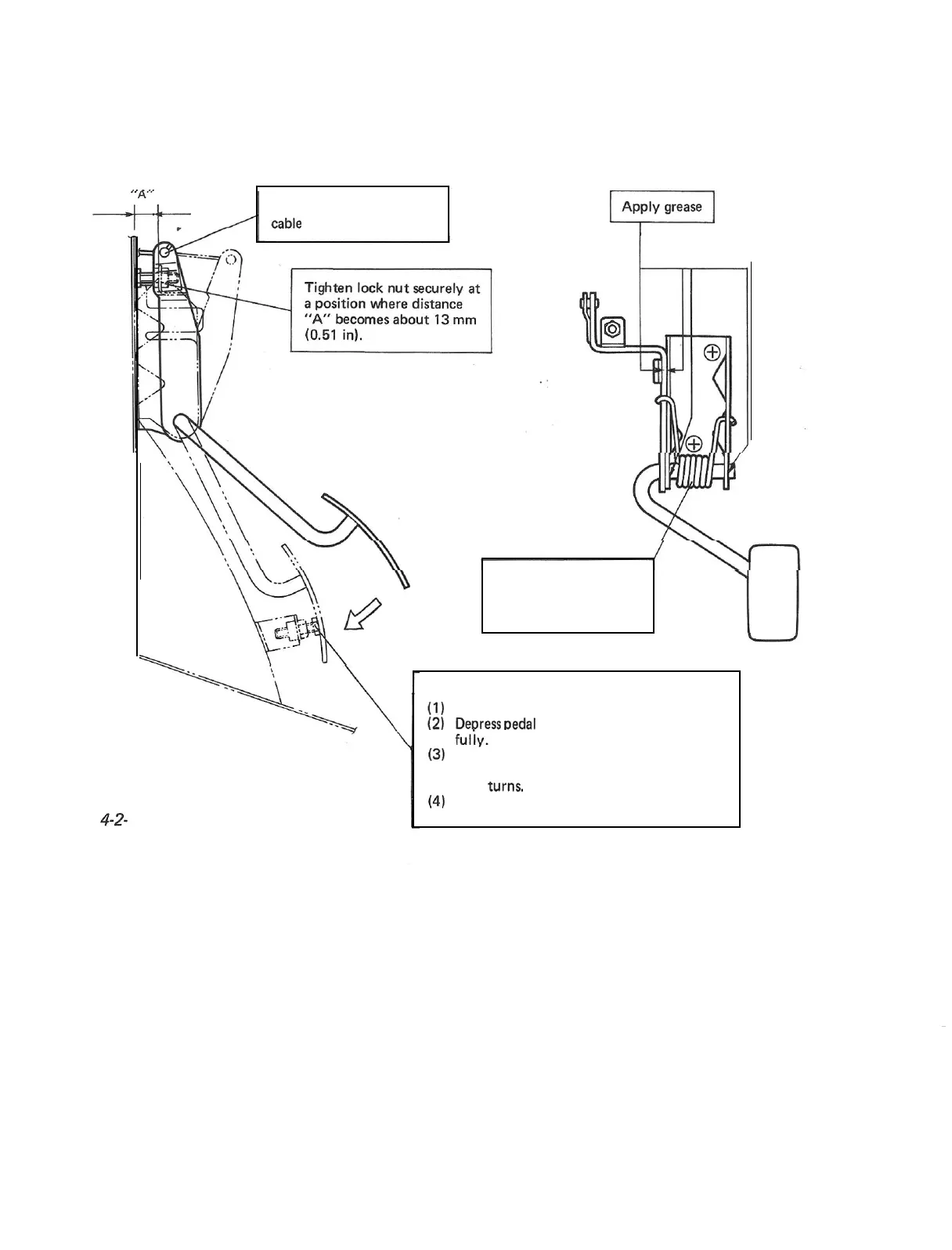

Fig. 4-2- 16
Adjustment of full open position
(1) Loosen lock nut and tighten bolt slightly.
(2) Depress Dedal as far as throttle valve opens
f&
(3) In this state. bring bolt into contact with
pedal by turning bolt and then loosen bolt
by 2 tums.
(4) Tighten lock nut there securely.
