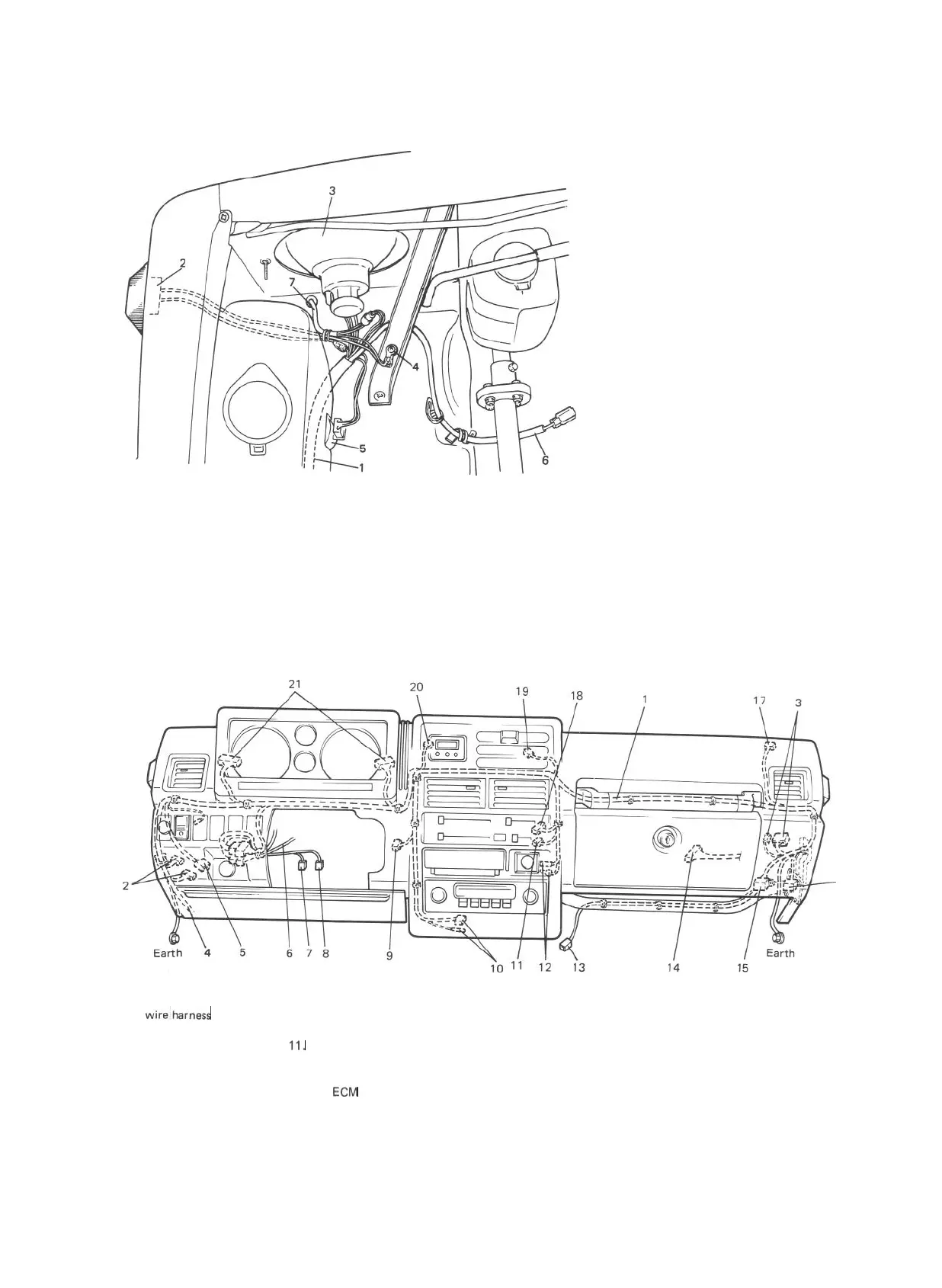

Fig. 21-39
Instrument Panel Wiring
1. Wire harness No.
2
2. Side marker light
3. Head light
4. Earth
5. Washer motor
6. To oil pressure gauge
7. To combination light
16
1. Wire harness No. 1
2. To wire~harness No.
2
3. To wire harness No.
2
4. To fuse box
5. Horn relay
6. To combination switch
7. To clutch switch
8.
To stop lamp
switch
15.
Door warning buzzer
9. To heater blower motor
16. Check relay
10.
To radio
17.
To wiper
motor
Il. To heater fan switch 18.
To illumination lamp
12. To cigar light 19. To optional meter
13.
To radio
20.
To clock
14.
To ECM
21.
To meter
Fig. 21-40
21-21
