4. Turn over the completely empty stapler cartridge. With a slight pinching motion, release the cartridge
cover. It will swing away, exposing the empty staple stack container.
5. Take note of the way the container is housed in the cartridge. Grasp the white handle of the container,
and pull it out of the housing. Discard this cardboard container.
6. Slide the new staple stack into the cartridge. Remove the white retainer strip.
7. Swing the cartridge cover back up into place.
8. Slide the stapler cartridge back into the drawer.

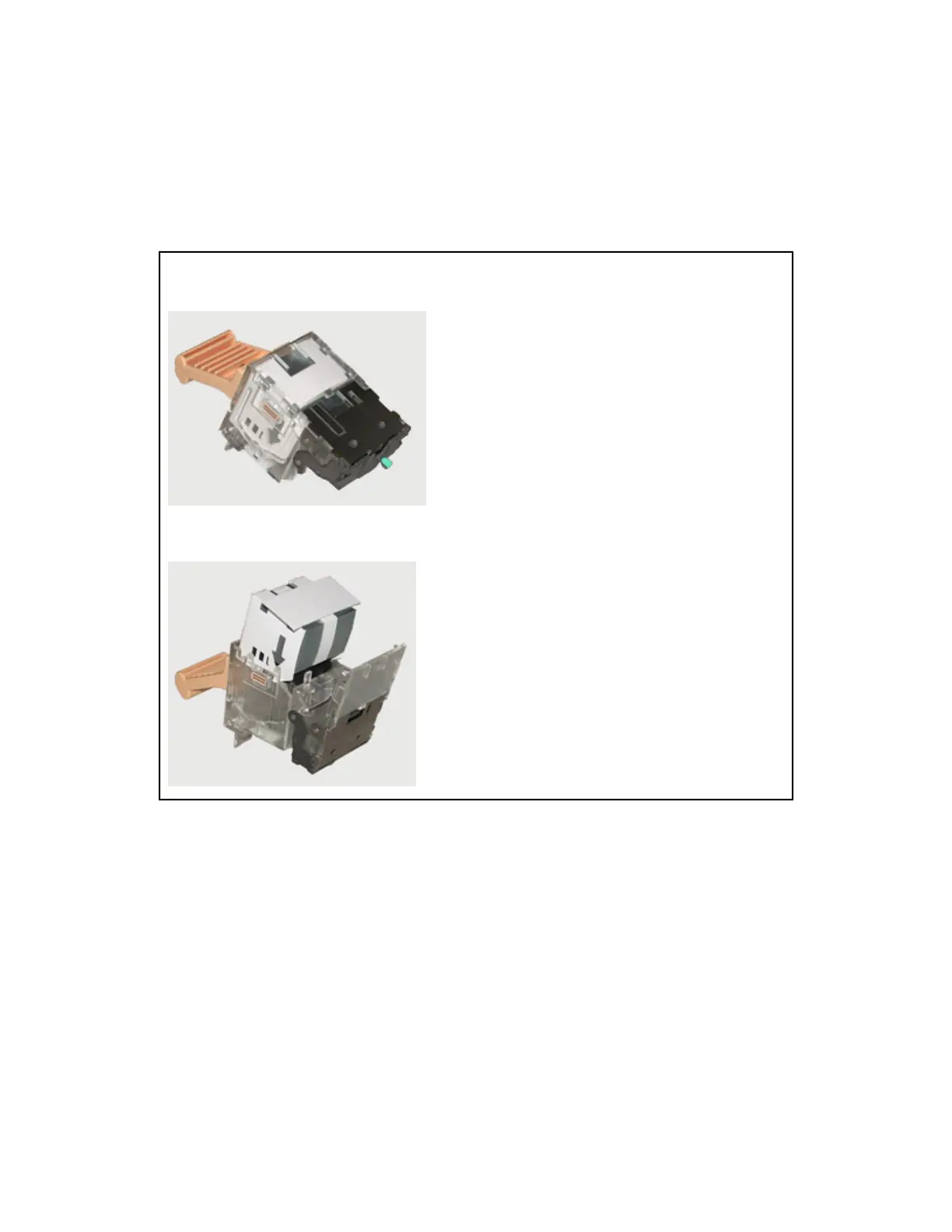

Figure 17: Full cartridge
Figure 18: Ready to load position - note position of new staple cartridge.
Booklet Tray Stapler
1. Rotate the handle (Area 2) to the up position.
2. Access the Booklet Stapler by pulling out the Booklet folding drawer (Area 4) in the MFF.
3. In the lower right area of the drawer, swing out the mechanism by grasping the green handle. You
should now see the twin stapler heads.
4. Grasp one of the staple head assemblies, and with a slight pinching action, pull out the empty staple
cartridge.
5. Replace with a new cartridge. Contacting Xerox to order this consumable part.
Note
Before inserting new cartridge, remove the small orange clip. It is there to ensure the staples remain
in the housing during shipment/handling.
6. Repeat #4 and 5 for the second stapler cartridge.
Xerox
®
Nuvera
®
15-6
User Guide and Training Aid (UGTA)
Replacing Consumables
