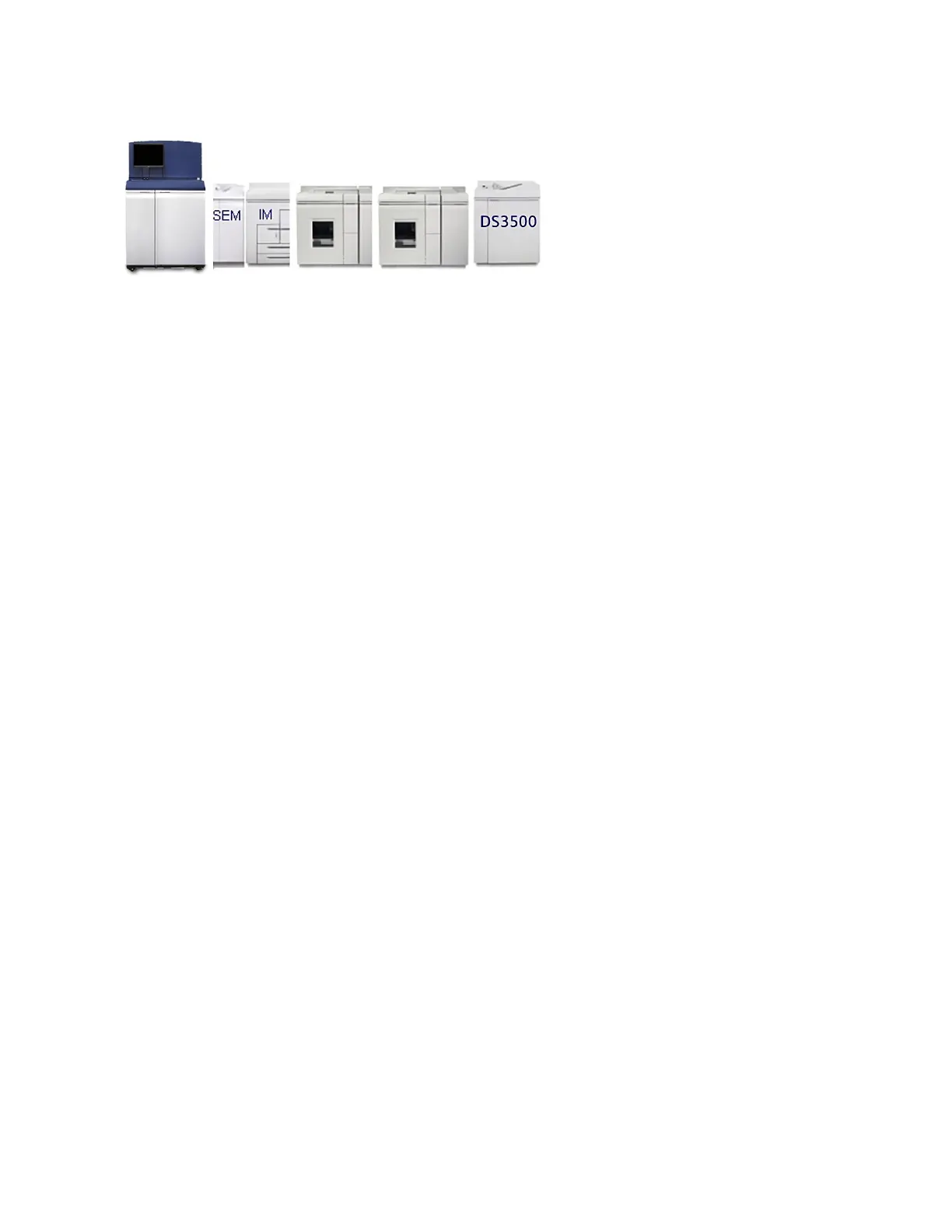

Figure 35: Print Engine / Sheet Enhancement Module / Insertion Module / BFM Plus / BFM Plus/ DS3500 or XPS
-->connects to DFA compliant 3rd party Finisher
Note
If you have a GBC AdvancedPunch
®
Pro finisher, it will be installed before the XPS Modules.
Configuration examples for the 157/314 systems with a BFM:
For a Xerox Nuvera 157/314, if a single BFM (BFM, BFM Plus or BFM Direct Connect) is in the system
configuration, the Sheet Retime Module (SRM) is required to be installed directly in front of the BFM.
The following lists some of the common SRM/BFM configurations.
• Print Engine / Sheet Enhancement Module / Sheet Retime Module / BFM
• Print Engine / Insertion Module / Sheet Retime Module / BFM
• Print Engine / Sheet Enhancement Module / Sheet Retime Module / BFM Plus / XPS
• Print Engine / Sheet Enhancement Module / Insertion Module / Sheet Retime Module / BFM Plus /
XPS
• Print Engine / Sheet Enhancement Module / Sheet Retime Module / BFM Direct Connect / XTB
• Print Engine / Sheet Enhancement Module / Insertion Module / Sheet Retime Module/ BFM Direct
Connect / XTB
Stapler Specifications
• Basic Finishing Module Stapler
• Multifunction Finisher
• Stapler Maintenance
Basic Finishing Module Stapler
For more information, see Basic Finishing Module Specification
Multifunction Finisher
If the Xerox Nuvera is equipped with a Multifunction Finisher, this finisher includes two stapling systems:
• Main Stapler
• Booklet Stapler
Before using any of the staplers on the Xerox Nuvera , take the time to learn about their capabilities
and capacities.
