SETUP PROCEDURES
MM9000 Rev C.8 01/13 Page 100
MM9000 ClearCommand User Manual
Set Up Procedure

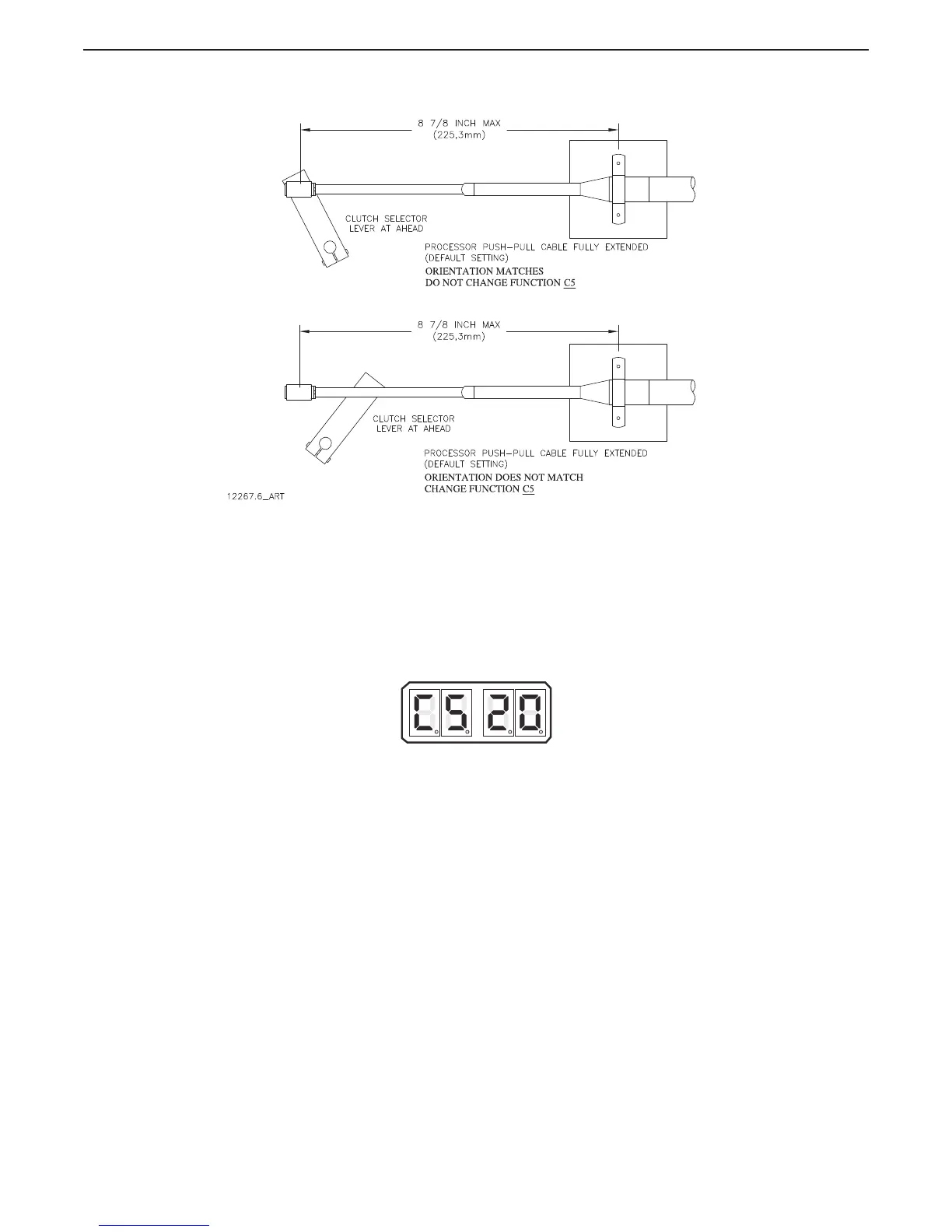

Figure 5-35: Clutch Push-Pull Cable Orientation
C Check the Shift Push-Pull cable to see if it drove in the correct direction.
• If the cable drove in the correct direction, no change to this
Function Code is required.
• If the cable drove in the opposite direction, continue with the next
step.
D Scroll to Function Code C5.
E Activate Set Up Mode.
F Scroll Up to change the Value to 21.
G Store the Value to memory.
Figure 5-36: Display LED Function C5 Set Up Activated
