2.12.7.2 One Long, Four Short - High Repetitive Rate Tone
Detail information on this tone is in the Manual supplied with the 9001 Trolling Actuator.
This tone indicates that Trolling Actuator Servo cannot reach the commanded position.
2.12.8 Troll Integrated Solenoid Tones
2.12.8.1 Three Second Steady Tone
This tone indicates that the Troll Solenoid is OPEN or shorted. Refer to the Error Code displayed for
further information.
2.13 Push Button Set Up
There are four push buttons mounted to the Processor’s circuit board. These push buttons allow the installer/
technician access to all of the Functions required for programming and troubleshooting the Processor.
A full description of their usage is provided in Section 5.1.2: Push Buttons.
2.14 Visual System Diagnostics, Set Up And Status Indication
There are four, seven segment LED’s (hereafter referred to as the Display LED) mounted to the Processor’s
circuit board. The Display LED is visible through a transparent window in the Processor’s cover. The
information displayed on the Display LED is used in conjunction with the push buttons to program the
Processor. The Display LED also displays Error Codes in the event that an anomaly is detected.
For a full description of the Display LED, its capability and usage, refer to Section 5.1.1: Processor Display
LED.

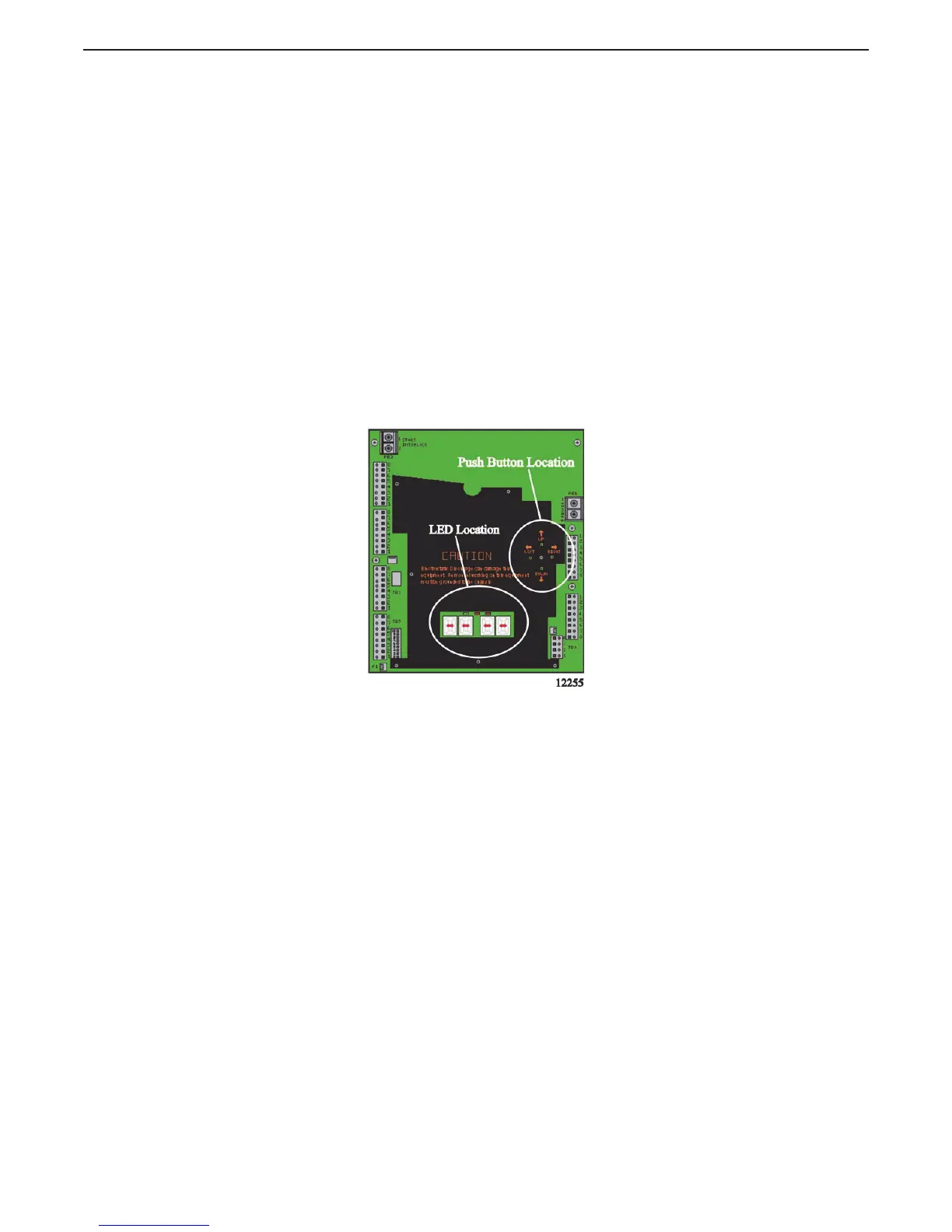

Figure 2-14: Circuit Board Shield Layout
