SETUP PROCEDURES
MM9000 Rev C.8 01/13 Page 107
MM9000 ClearCommand User Manual
Set Up Procedure
F Store the Value to memory

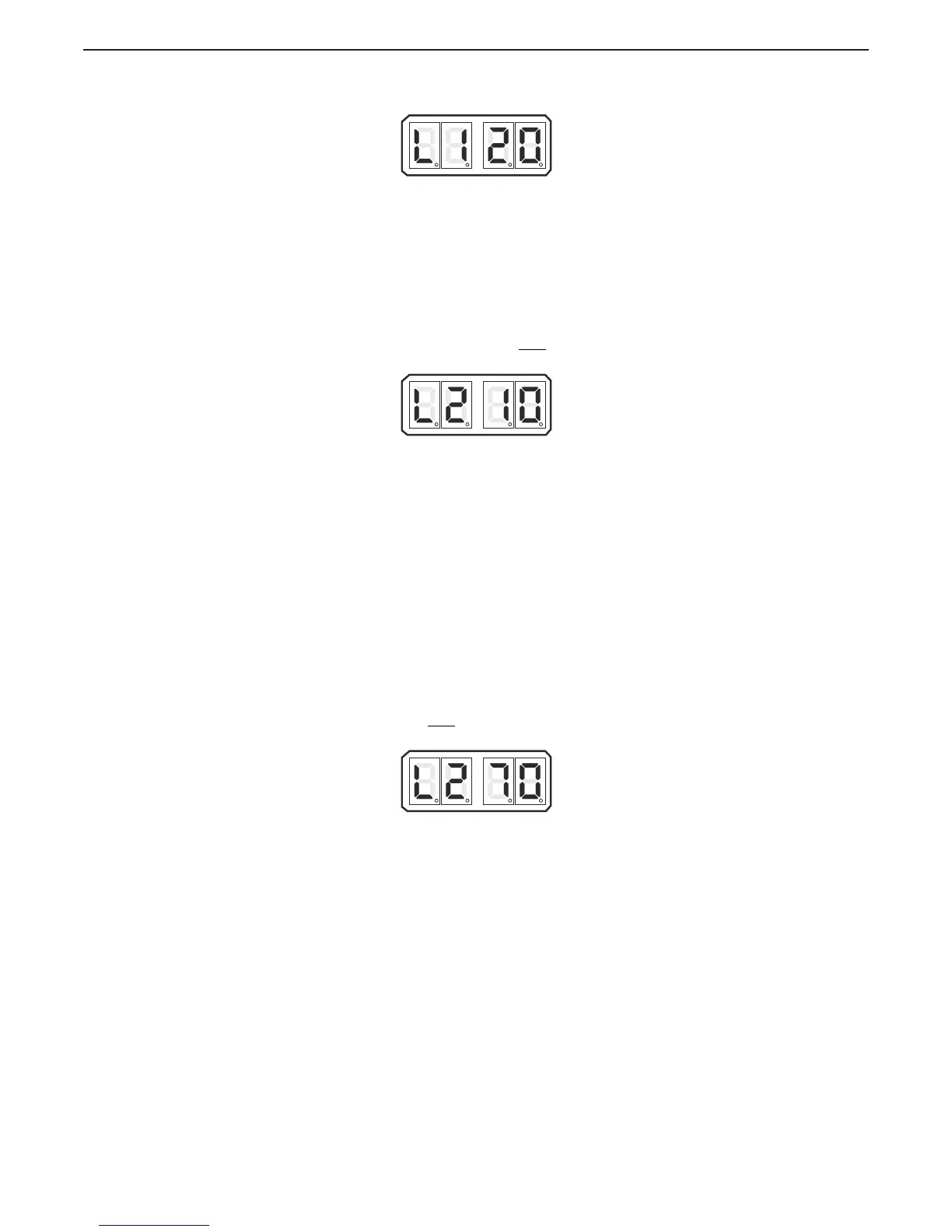

Figure 5-50: Display LED Function L1 Set Up Activated
5.7.2.1.4 Function Code L2 – Solenoid Troll Minimum Pressure
This Section along with the Basic Troll Command Functions allows the adjustment of the
Processor’s Integrated Solenoid Troll command.
This Function fine tunes the amount of current delivered to the proportional solenoid, so that
clutch pressure is at the minimum point where shaft rotations are still possible.
The hydraulic pressure on the Clutch plate can typically be decreased to a point where the
shaft is rotating at 30% to 50% of normal shaft RPM at Idle.
The available Values are 0.00 to 80.0 percent of the maximum current available. The Default
Value is 10.0%. The Value selected must
always be at least 20% below or above (Normal/
Inverted) the value selected with Troll Maximum Pressure L3.
Figure 5-51: Display LED Solenoid Function L2 Set Up Activated
A Move the Control Head lever to the Ahead detent.
B Scroll to the Function Code.
C Activate Set Up Mode.
D Scroll Up or Down to the appropriate Value.
E Store the Value to memory
5.7.2.1.5 Function Code L2 – Servo Troll Minimum Pressure
This Function Code along with the Basic Troll Command Functions allows the adjustment of
the Processor’s Integrated Servo Troll command.
Function L2 adjusts the Troll Push-Pull cable travel to the point where clutch pressure is at
the minimum point where shaft rotations are still possible.
The hydraulic pressure on the Clutch plate can typically be decrease to a point where the
shaft is rotating at 30% to 50% of normal shaft RPM at Idle.
The available Values are 0.10 to 80.0 percent of the 3.00 inches (76,2mm) of Troll Push-Pull
cable travel.
The Default Value is 70.0%.
The Value selected must
always be at least 10% below the Troll Maximum Pressure L3
selected.
Figure 5-52: Display LED Servo Function L2 Set Up Activated
A Move the Control Head lever to the Ahead detent.
B Scroll to the Function Code.
C Activate Set Up Mode.
D Scroll Up or Down to the appropriate Value.
E Store the Value to memory
