CABLE/HARNESS CONNECTIONS:
Dual Control Head Connections

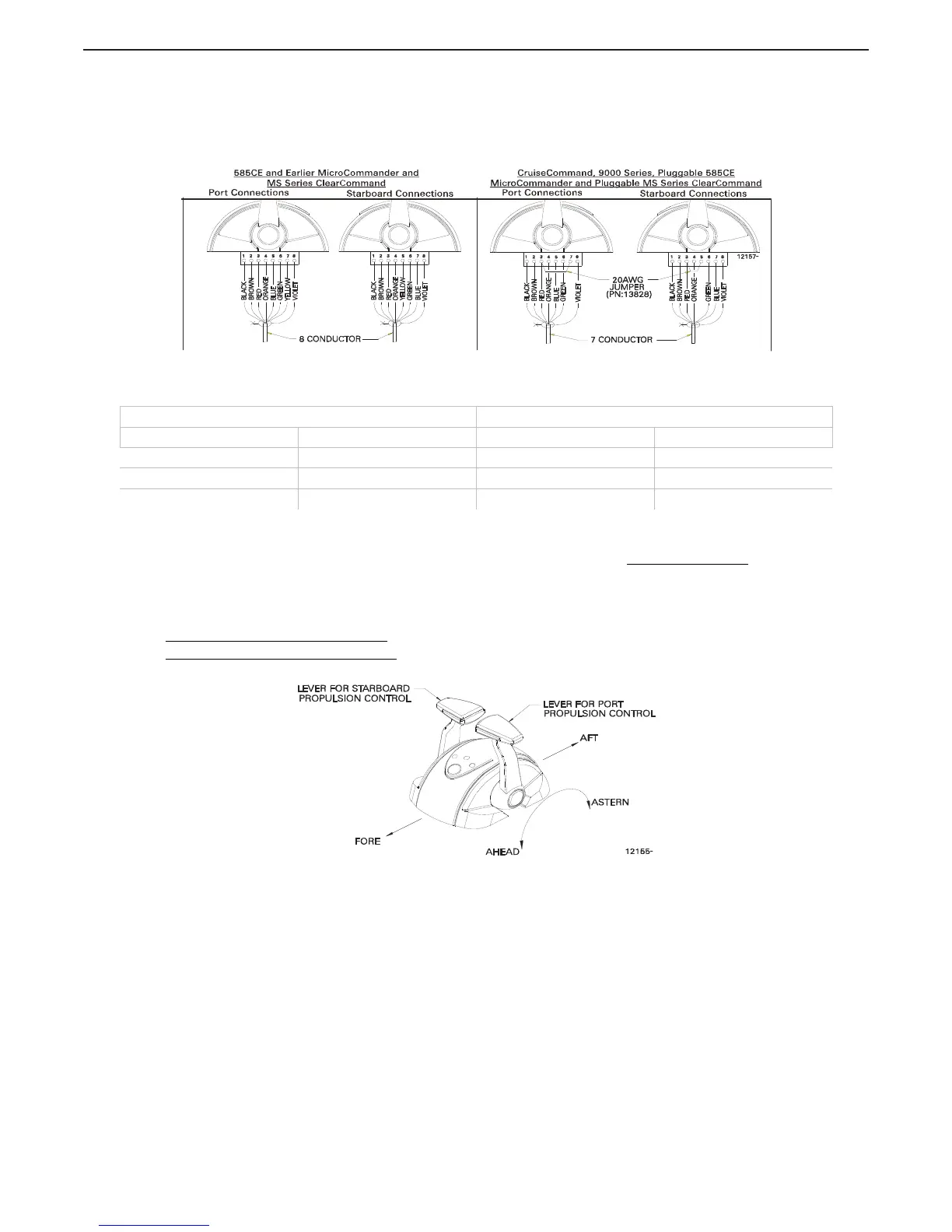

Figure MMC-329-3: Terminal Connections
Cable/Jumper connections 5 and 7 at the Port and Starboard terminal block are direction sensitive.
Pluggable Connections
Pluggable Control Heads are supplied with a harness pigtail for each lever. When disconnecting/
connecting the plugs, ensure that the release button or buttons are depressed and held
until plug is
fully disconnected or connected. Disconnecting/connecting plugs without depressing and holding the
release button or buttons WILL damage the plug.
Aft Facing Control Heads
For dual lever Control Head Stations that have the user facing aft: Reverse connections 5 and 7.
For single lever Control Head Stations
that have the user facing aft and the one Control Head lever on the
user’s right, reverse connections 5 and 7.
Figure MMC-329-4: AFT Facing Control Head
Handheld Control is an option. Contact your ZF Dealer for further information on Handheld requirements and
options.
MicroCommander/ClearCommand CruiseCommand/9000 Series
Port Lever: Starboard Lever: Port Lever: Starboard Lever:
Terminal 3 Red Terminal 3 Red Terminal 3 Red & JUMPER Terminal 3 Red & JUMPER
Terminal 5 Blue Terminal 5 Yellow Terminal 5 Blue Terminal 5 JUMPER
Terminal 7 Yellow Terminal 7 Blue Terminal 7 JUMPER Terminal 7 Blue
