5.7.0.1.3 Function Code E3 – Throttle Maximum
This Function adjusts the position of the Throttle Push-Pull cable at Full Throttle.
The available Values for this Function are 10.0% to 100.0%.
The Default Value is 33.0%. This value will always be 10% or more above E2 Throttle
Minimum.
The Value entered is the percentage of the servo’s maximum travel of 3.00 inches
(76,2mm).
Example: A Value of 50.0, will equal 1.50 inches (38,1mm) of travel from Idle to Full
Throttle.
To determine and change the Value (Refer to Sections Section 5.2: Activating Set Up Mode
and Section 5.3: Storing Values To Memory):

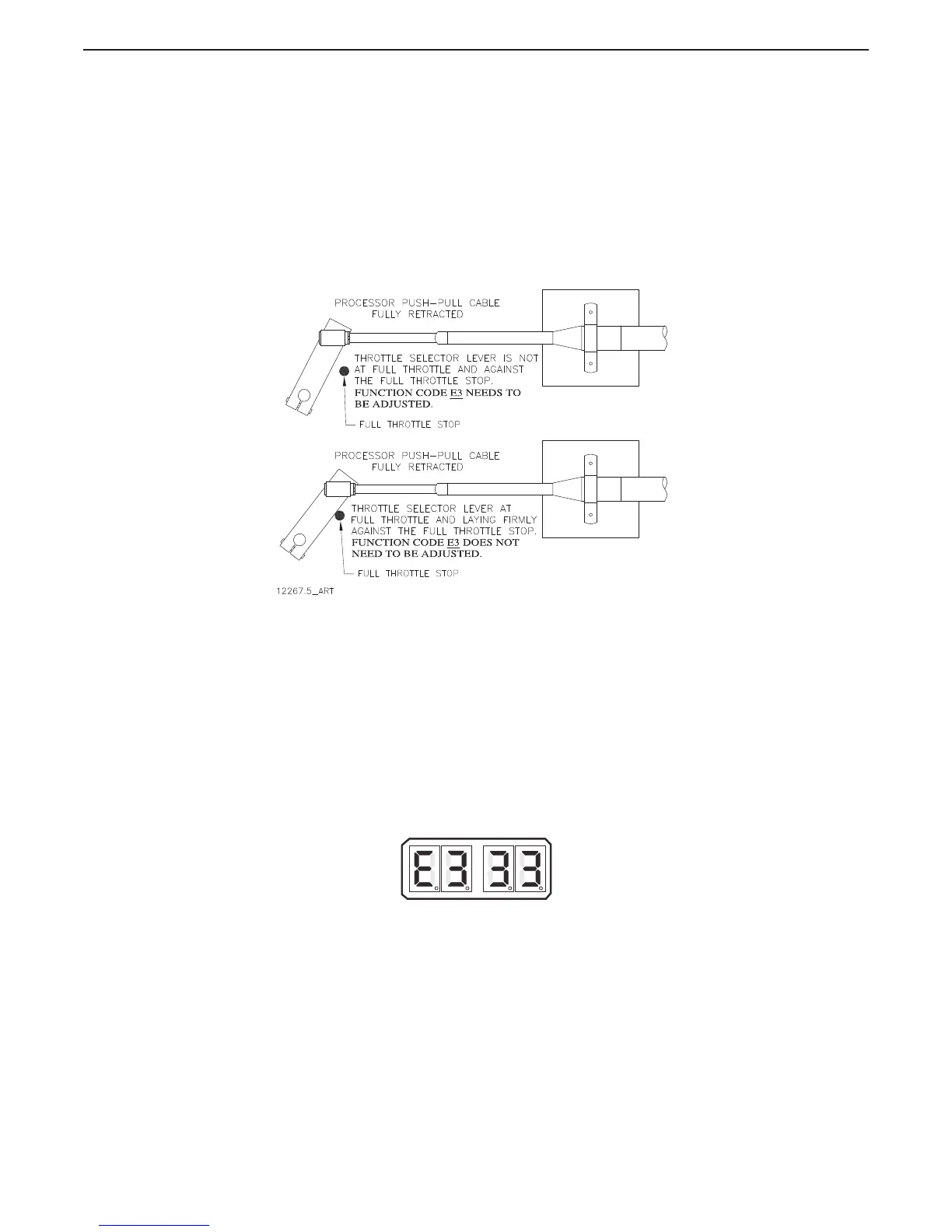

Figure 5-25: Throttle Push-Pull Cable Full Throttle Position
A Take command at a Remote Station.
B Move the Control Head lever to the Full Ahead position.
C Check to see if the Throttle Push-Pull cable reaches the Full Throttle stop.
• If the Throttle lever is firmly (not bound) against the Full Throttle
stop, no adjustment to Function Code E3 is required.
• If the Throttle lever does not reach the Full Throttle stop, continue
with the next step.
D Scroll to Function Code E3.
E Activate Set Up Mode.
F Scroll Up until the Throttle lever is firmly (not bound) against the Full Throttle
Stop.
G Store the Value to memory.
H Return the Control Head lever to the Neutral/Idle position.
Figure 5-26: Display LED Function E3 Set Up Activated
