4.6.2 Throttle Selector Lever
A Ensure that the Throttle push-pull cable and the engine’s throttle lever are in close proximity to
one another at Idle. If so, proceed to step C) and if not continue with step B).

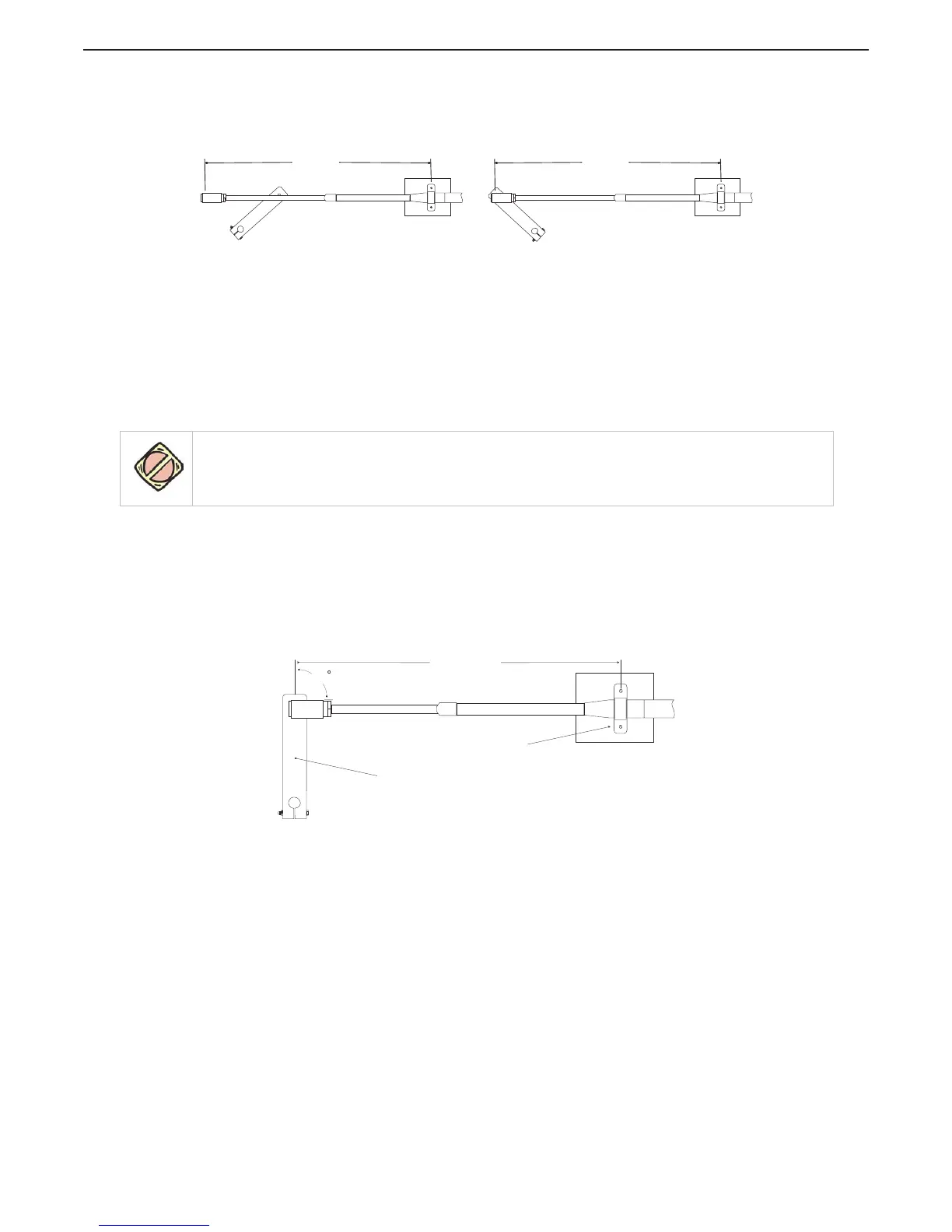

Figure 4-29: Throttle Push-Pull Idle Orientation to Selector Lever
B If the throttle lever is at the opposite side from the push-pull cable, change the Throttle Servo
Direction E0 as described in Section Section 5.7.0.1.1: Function Code E0 – Throttle Servo
Direction.
C Adjust the ball joint on the Throttle cable to match the throttle lever at the Idle stop position.
D Ensure that adequate cable threads are showing.
E Tighten the jam nut.
4.6.3 Shift Selector Lever
A Check the engine and transmission to see if the push-pull cable anchor brackets have been
installed. If the brackets are not on the transmission, select from MMC-289 Morse Clutch and
Throttle Kit or fabricate brackets as shown in MMC-290 Universal Mounting Kit.
B Turn power ON to the Control System, to ensure that Neutral/ Idle is commanded.
C With the Shift Push-Pull cable disconnected at the clutch selector lever, adjust the Shift
cable’s ball joint at the transmission to align with the clutch selector lever at Neutral. The
push-pull cable must form a 90 degree angle to the clutch selector lever. (Refer to Figure 4-
30: Shift Push-Pull Cable Neutral Connection at Transmission)
Figure 4-30: Shift Push-Pull Cable Neutral Connection at Transmission
D Connect the ball joint to the clutch selector lever.
CAUTION: Mis-adjusted Shift Push-Pull Cables can cause damage to the Transmission’s Clutch Pack. Ensure
adjustments are made correctly and completely.
Throttle Selector
Lever at IDLE
Processor Push-Pull Cable Fully Extended
(Default Setting)
8 7/8 inch Maximum
(225,3mm)
ORIENTATION DOES NOT MATCH
CHANGE FUNCTION E0
Throttle Selector
Lever at IDLE
Processor Push-Pull Cable Fully Extended
(Default Setting)
12267.1_ART
8 7/8 inch Maximum
(225,3mm)
ORIENTATION MATCHES
DO NOT CHANGE FUNCTION E0
90
7 3/8 inches
(187mm)
12267.2_ART
Anchor
Bracket
Transmission Selector
Lever in Neutral Position
