MM9000 ClearCommand User Manual
Set Up Procedure
5.7 Function Code E1 – Throttle in Neutral
This Function allows the engine RPM at Neutral to be adjusted independently of the RPM at Idle Ahead and
Astern.
The available Values for this Function are 00.0 to 25.0 percent of the Throttle Range.
The Default Value is 00.0%.
To change the Value (Refer to Sections Section 5.2: Activating Set Up Mode and Section 5.3: Storing Values
To Memory):
A Scroll to Function Code E1.
B Activate Set Up Mode.
C Scroll Up or Down to the desired Value.
D Store the Value to memory

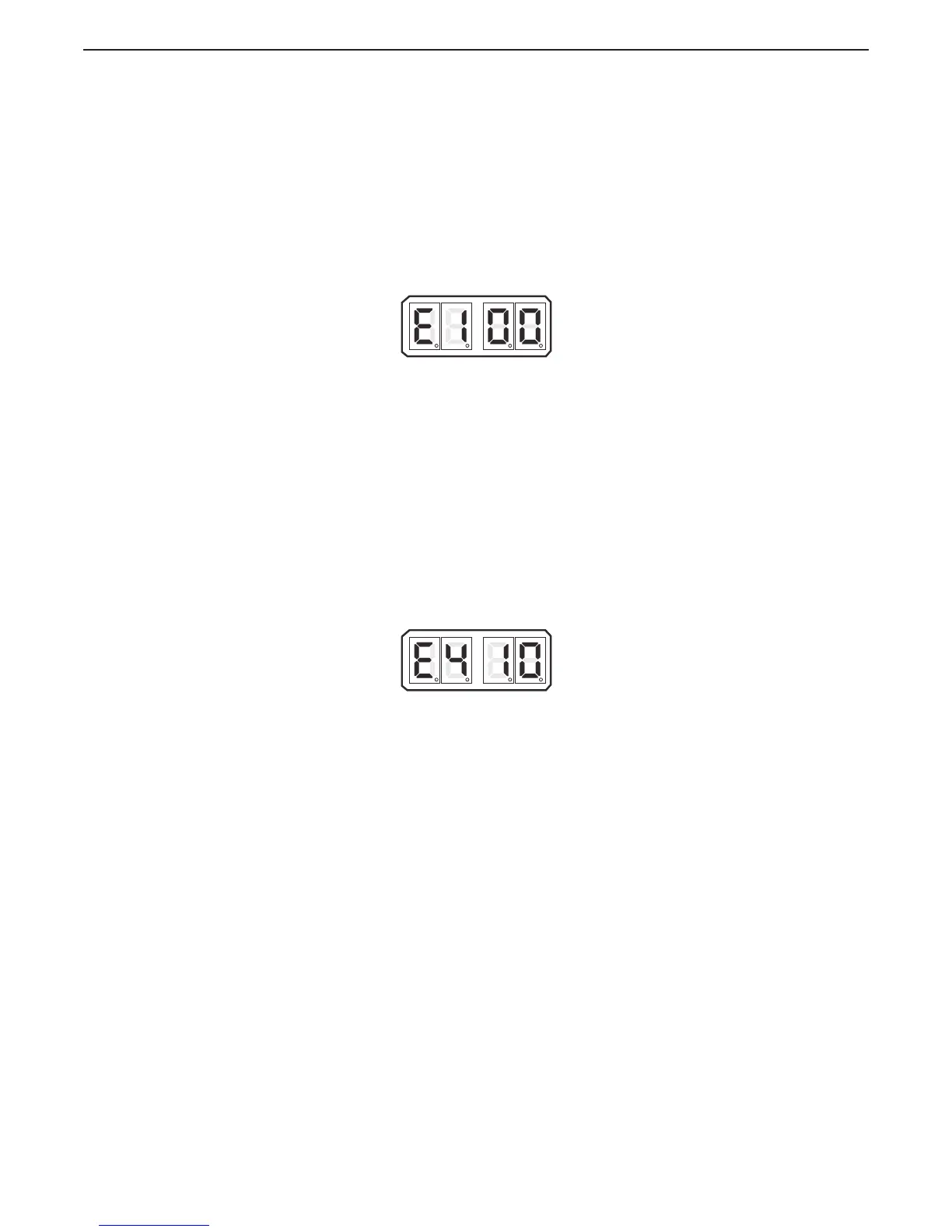

Figure 5-18: Display LED Function E1 Set Up Activated
5.7.0.0.1 Function Code E4 – Throttle Maximum Astern
This Function limits the amount of Throttle permitted in Astern.
The available Values for this Function are 00.0% to 100.0%.
The Default Value is 100.0% of Throttle Maximum.
The Value selected is a percentage of the Value selected in Function Code E3 – Throttle
Maximum.
Example: A Value of 50.0 will allow 50% of Throttle Maximum when commanding Astern.
The Value selected is a matter of personal preference.
To change the Value (Refer to Sections Section 5.2: Activating Set Up Mode and Section
5.3: Storing Values To Memory):
A Scroll to Function Code E4.
B Activate Set Up Mode.
C Scroll Up or Down to the desired Value.
D Store the Value to memory.
Figure 5-19: Display LED Function E4 Set Up Activated
5.7.0.0.2 Function Code E7 – Synchronization
This Function Code selects the type of Synchronization, if Synchronization is required. The
types are described in Section 2.10: Engine Synchronization (Twin Screw).
The available Values for this Function are:
00 Equal Throttle (Open Loop) Synchronization
01 Active (Closed Loop) Synchronization (reverts to Equal Throttle Synch if
there is no Tachometer Sensor signal)
02 No Synchronization (Default Value)
03 Active (Closed Loop) Synchronization (reverts to no Synchronization if
there is no Tachometer Sensor signal)
The Default Value is 02.
To change the Value (Refer to Sections Section 5.2: Activating Set Up Mode and Section
5.3: Storing Values To Memory):
A Scroll to Function Code E7.
