4.4.3 9000 Series Hard-Wired Connection Locations
All cables that enter the Enclosure must go through a Liquid Tight Connector in order to maintain the
moisture resistant integrity of the Processor. These connectors must be assembled as shown in Figure
4-4: Liquid Tight Installation.
When hard-wiring a Processor or installing additional Station pigtails, the cables must enter the
enclosure through Liquid Tight Connectors in the appropriate holes. Refer to the appropriate Section
for the Cable Hole designations for the Processor being used on this application.
4.4.3.1 9120 and 9121 (Clutch Solenoid) Cable Hole Locations
1. Station 5
2. Station 3
3. Station 1
4. Alarm, Clutch Pressure, and Start Interlock
5. Power
6. Station 4
7. Station 2
8. Serial Communication
9. Tachometer
10. Clutch Solenoids

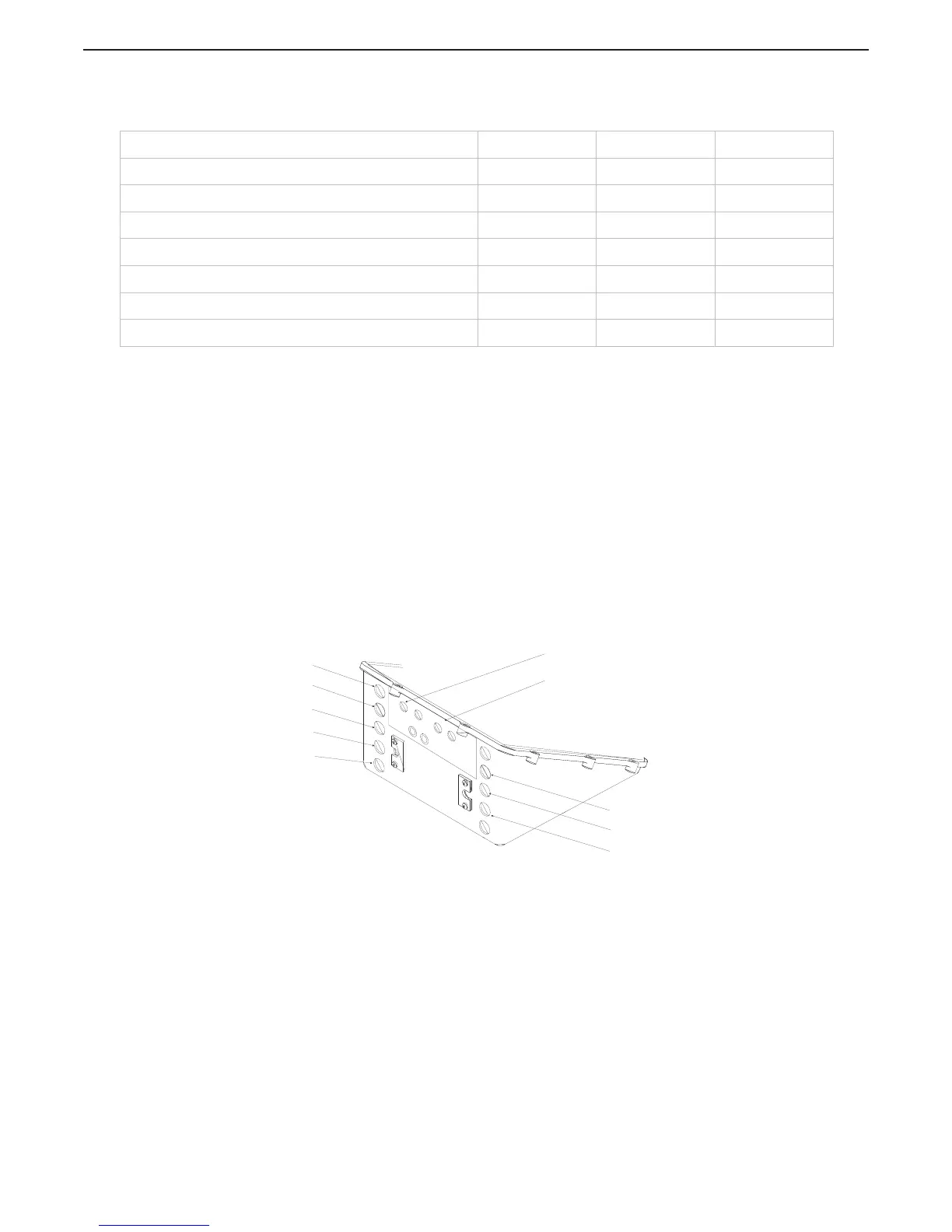

Figure 4-7: 9120 and 9121 Enclosure Cable Holes
Table 4-1: ClearCommand Processor Optional Hard-Wiring Cable List
ZF Marine Propulsion Systems Miramar, LLC ENGINE CLUTCH TROLL
Processor Part No. Electronic Solenoid Solenoid
9120 (Figure 4-7: 9120 and 9121 Enclosure Cable Holes) 10
9121 (Figure 4-7: 9120 and 9121 Enclosure Cable Holes) 10
9122 (Figure 4-8: 9122 Enclosure Cable Holes) 10 11
9210 (Figure 4-9: 9210 and 9211 Enclosure Cable Holes) 12
9211 (Figure 4-9: 9210 and 9211 Enclosure Cable Holes) 12
9221 (Figure 4-10: 9221 Enclosure Cable Holes) 12 10
1
2
3
4
5
6
7
10
8
9
12282.2_ART
