ZF MM9000 User Manual

140 EN 3340.758.003a - 2014-11
TROUBLESHOOTING
MM9000 Rev C.8 01/13 Page 140
MM9000 ClearCommand User Manual
Troubleshooting
10.1.1.4 9211 (Throttle Electronic, Shift Servo 1, Troll Servo 2) Processor
The 9211 Processor is designed to precisely control speed, direction, and trolling valve on vessels
equipped with electronic Throttle, and mechanical Clutch and Troll Selectors.

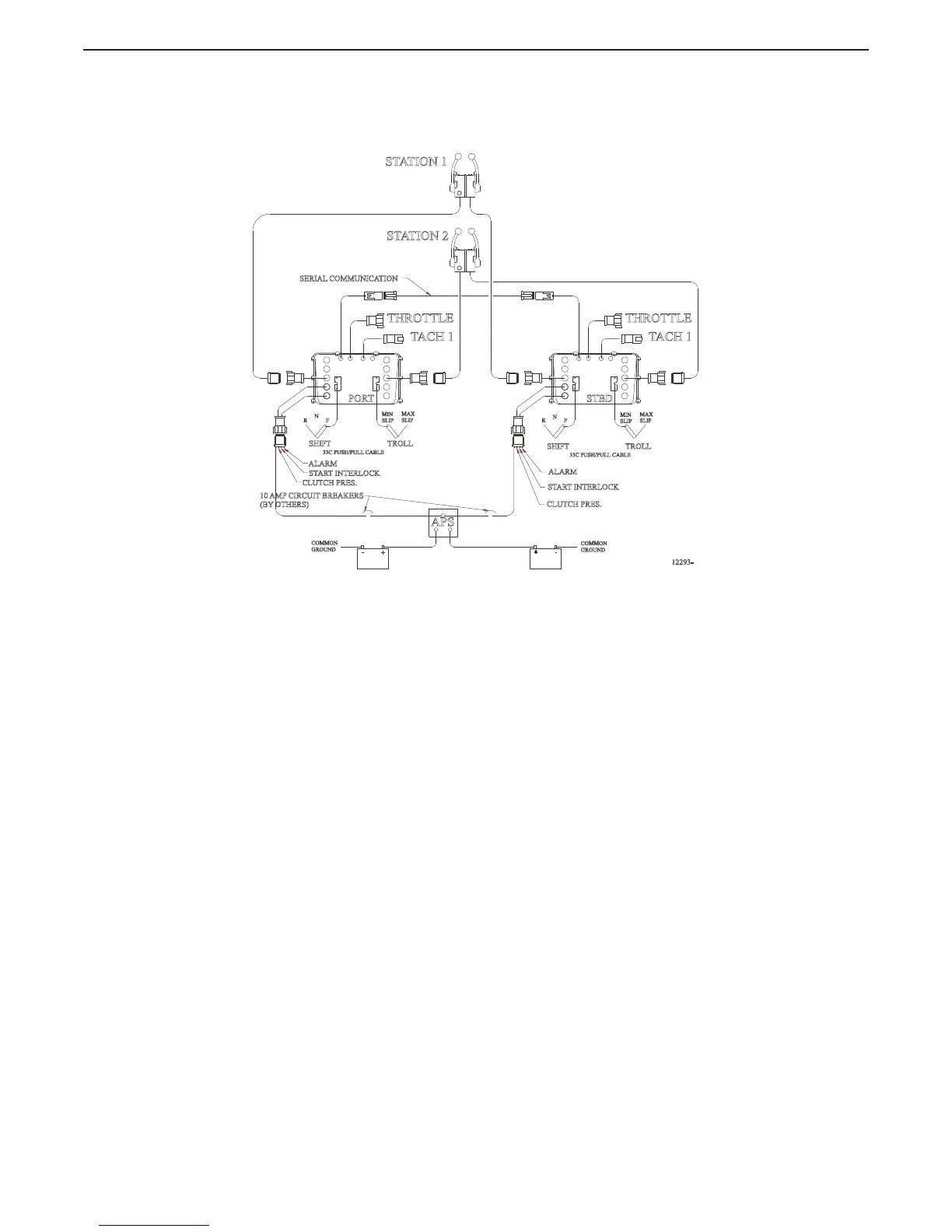

Figure 10-4: 9211 Basic Twin Screw, Two Station Diagram.
33C PUSH/PULL CABLE
33C PUSH/PULL CABLE
TROLLSHIFT
F
N
RFR
N
TROLLSHIFT
STBD
STATION 2
STATION 1
PORT
12293-
SERIAL COMMUNICATION
10 AMP CIRCUIT BREAKERS
(BY OTHERS)
COMMON
GROUND
COMMON
GROUND
+
-
+
-
APS
CLUTCH PRES.
START INTERLOCK
ALARM
START INTERLOCK
CLUTCH PRES.
ALARM
TACH 1 TACH 1
THROTTLETHROTTLE
MIN
SLIP
MAX
SLIP
MIN
SLIP
MAX
SLIP
