5.7.1.2.3 Function Code C7 – Clutch Astern Travel
This function is only required when the distance from Neutral to Astern differs from Neutral
to Ahead.
This Function Code allows the independent adjustment of Astern travel. Otherwise, the
Value selected in Function Code C6 is automatically entered for Function Code C7.
The available Values are 00.0 to 100.0 percent of the available travel from Neutral to Astern.
The Default Value is 80%.
To determine, and if required, change the Value (Refer to Sections Section 5.2: Activating
Set Up Mode and Section 5.3: Storing Values To Memory):

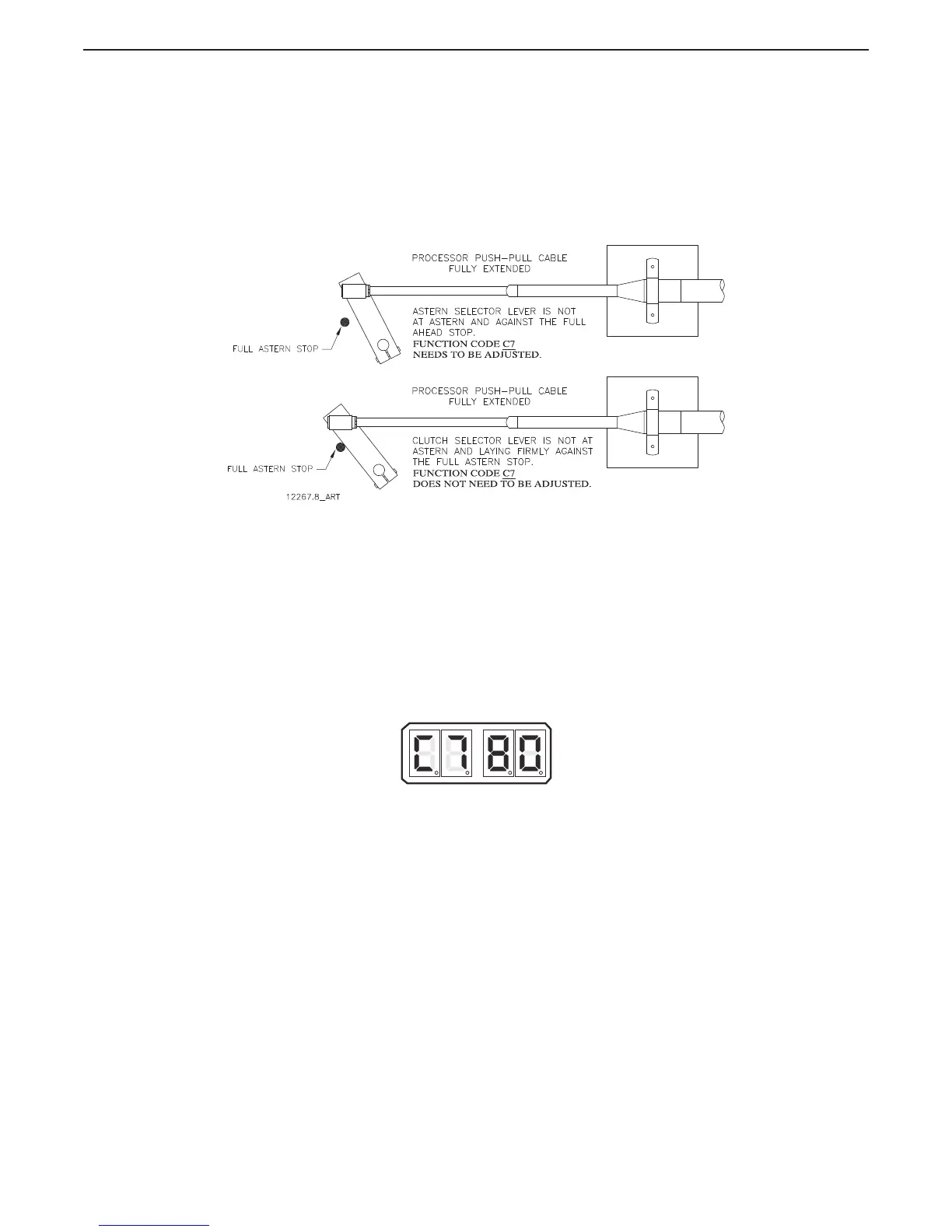

Figure 5-39: Clutch Push-Pull Cable Astern Position
A Move the Control Head lever to the Astern detent.
B Move the Clutch Selector Lever to the Astern stop.
C Does the cable’s ball joint and lever align?
• If yes, no further adjustment of this Function is required.
• If no, continue with the next step.
D Scroll to Function Code C7.
E Activate Set Up Mode.
F Scroll Up or Down until the ball joint and Clutch Selector lever aligns perfectly.
G Connect the ball joint to the Clutch Selector lever.
H Store the Value to memory.
I Return the Control Head lever to the Neutral/Idle position.
Figure 5-40: Display LED Function C7 Set Up Activated
