D Set up the Multimeter to measure current (mA.) and plug the black lead into the Break-out
Box black socket labeled “-” and the red lead into the socket labeled “mA”.
E Turn power ‘On’ to the Processor and take command at any Remote Station.
F Depress and hold the Push-button Switch labeled “mA.” The appropriate Current (mA.) for
the application should be measured.
G Move the Control Head lever to the Full Throttle position while depressing the Transfer
Button (Throttle Only Mode).

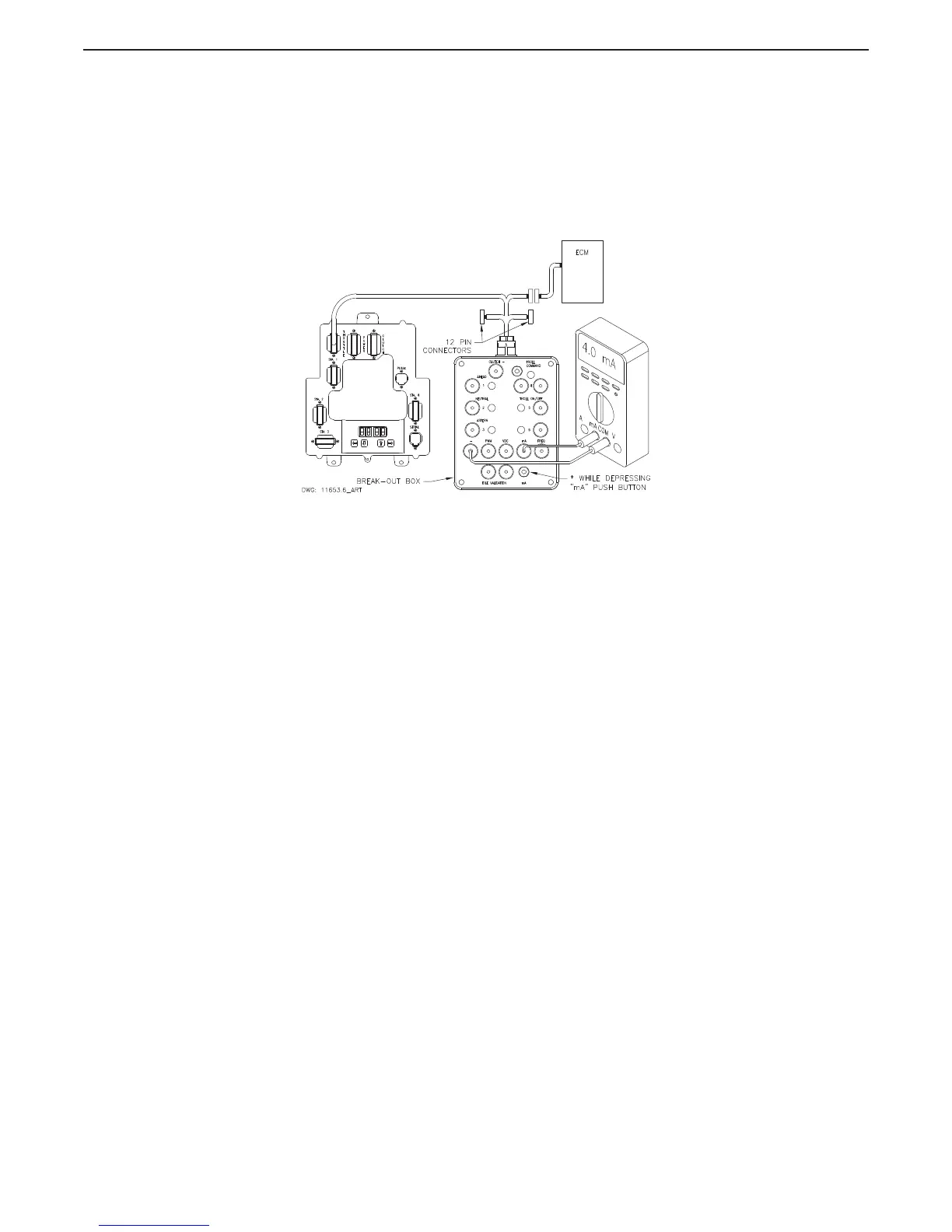

Figure MM13927-5: Throttle Connection (Current mA)
H Depress and hold the “mA.” Push-button. The appropriate Full Throttle Current (mA.) for the
application should be measured at this time.
