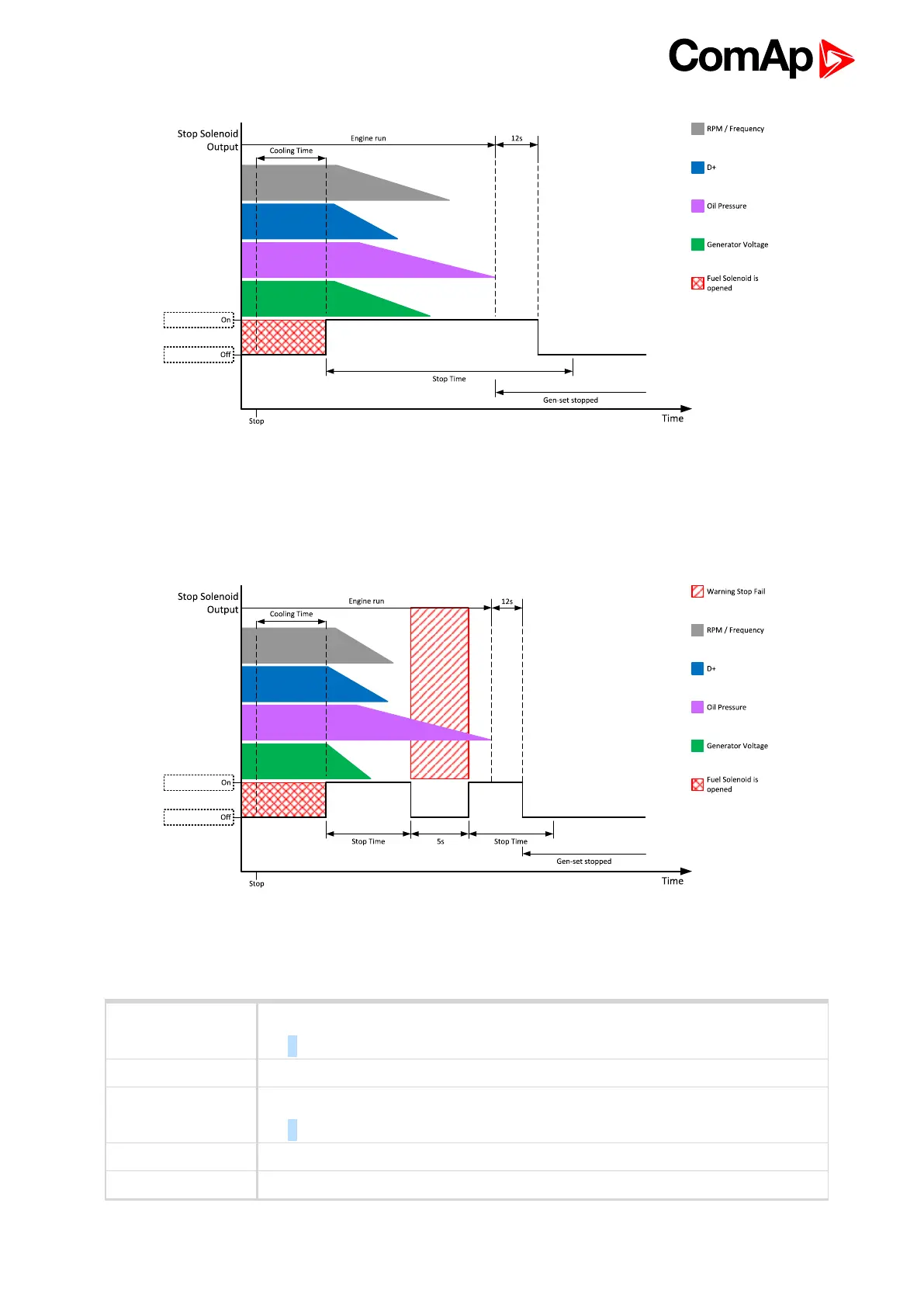

Image 5.27 Engine stops in Stop Time (page 176)
When the total time of stopping will exceed setpoint Stop Time (page 176) than the Wrn Stop Fail (page 368)
and binary outputs are activated. The controller will continuously try to stop the engine.
Image 5.28 Engine stops after first Stop Time (page 176)
Electric state machine
MainsOper
Mains is present and all its values are within limits.
Example: MCB is closed, GCB is opened
MainsFlt Mains fails
IslOper
Island operation
Example: MCB is opened, GCB is closed
MainsRet Mains recover
BrksOff GCB, MCB opened
