InteliLite 9 Global Guide
389
8.3.1 Plug-In modules
Communication modules 389
Extension modules 398
IMPORTANT: 2nd generation of InteliLite 9 controllers does not support new modules and 3rd
generation does not support all old modules.
The available communication plug-in modules are:
CM-RS232-485 - communication module for connection via RS232 or RS485 line
CM-4G-GPS - communication module for connection via 4G
CM-GPRS - communication module for connection via GPRS
CM-Ethernet - communication module for internet connection via Ethernet
The available extension plug-in modules are:
EM-BIO8-EFCP - extension module with 8 binary inputs/outputs
Note: Controller has 1 plug-in module slot.
Communication modules
CM-RS232-485 389
CM-Ethernet 391
CM-GPRS 393
CM-4G-GPS 396
CM-RS232-485
CM-RS232-485 is optional plug-in card to enable InteliLite 9 the RS232 and RS485 communication. This is
required for computer or MODBUS connection. The CM-RS232-485 is a dual port module with RS232 and
RS485 interfaces at independent COM channels. The RS232 is connected to COM1 and RS485 to COM2.

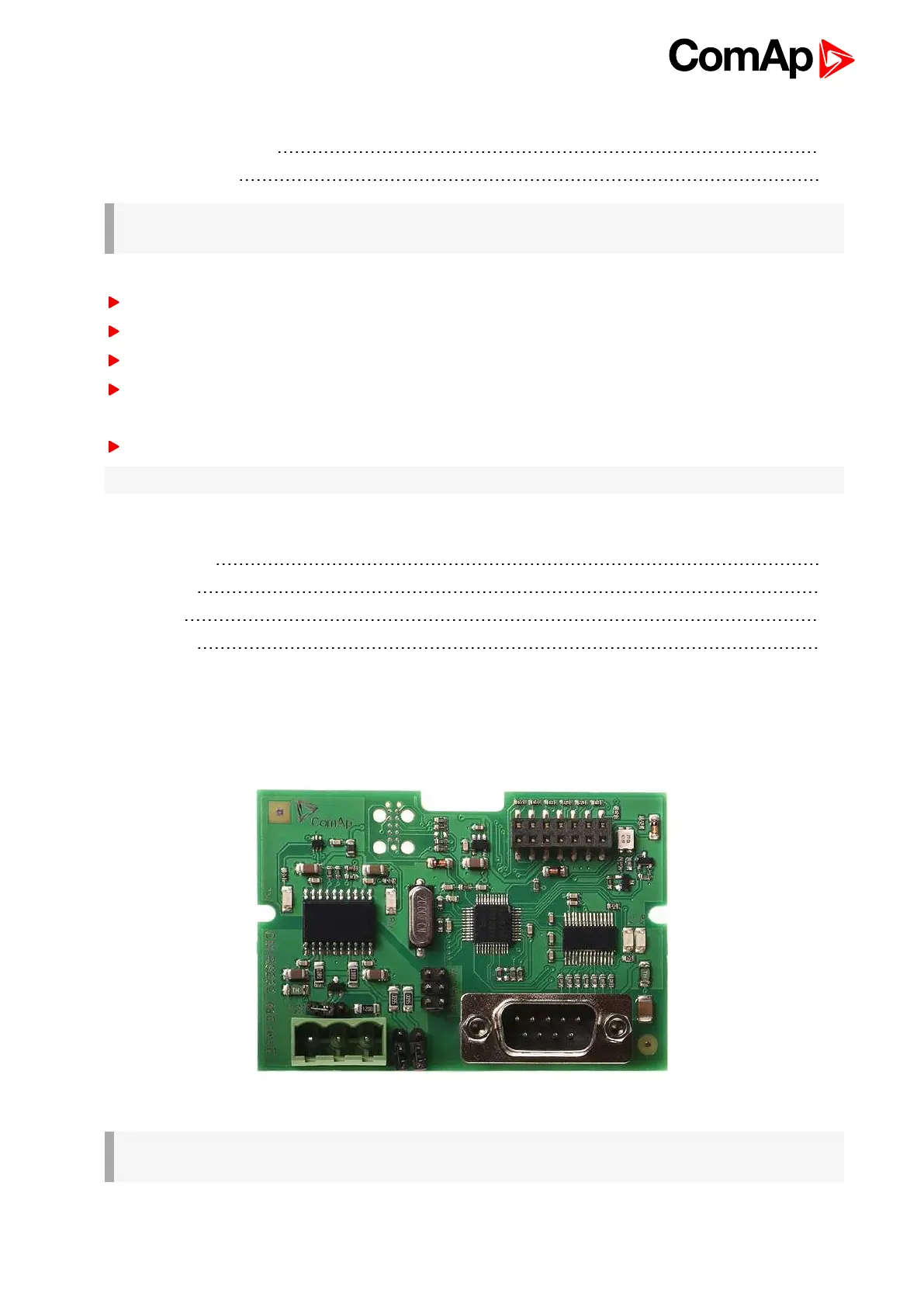

Image 9.2 CM-RS232-485 interface
IMPORTANT: Any manipulation with plug-in module shall be done with disconnected power
supply to controller.
