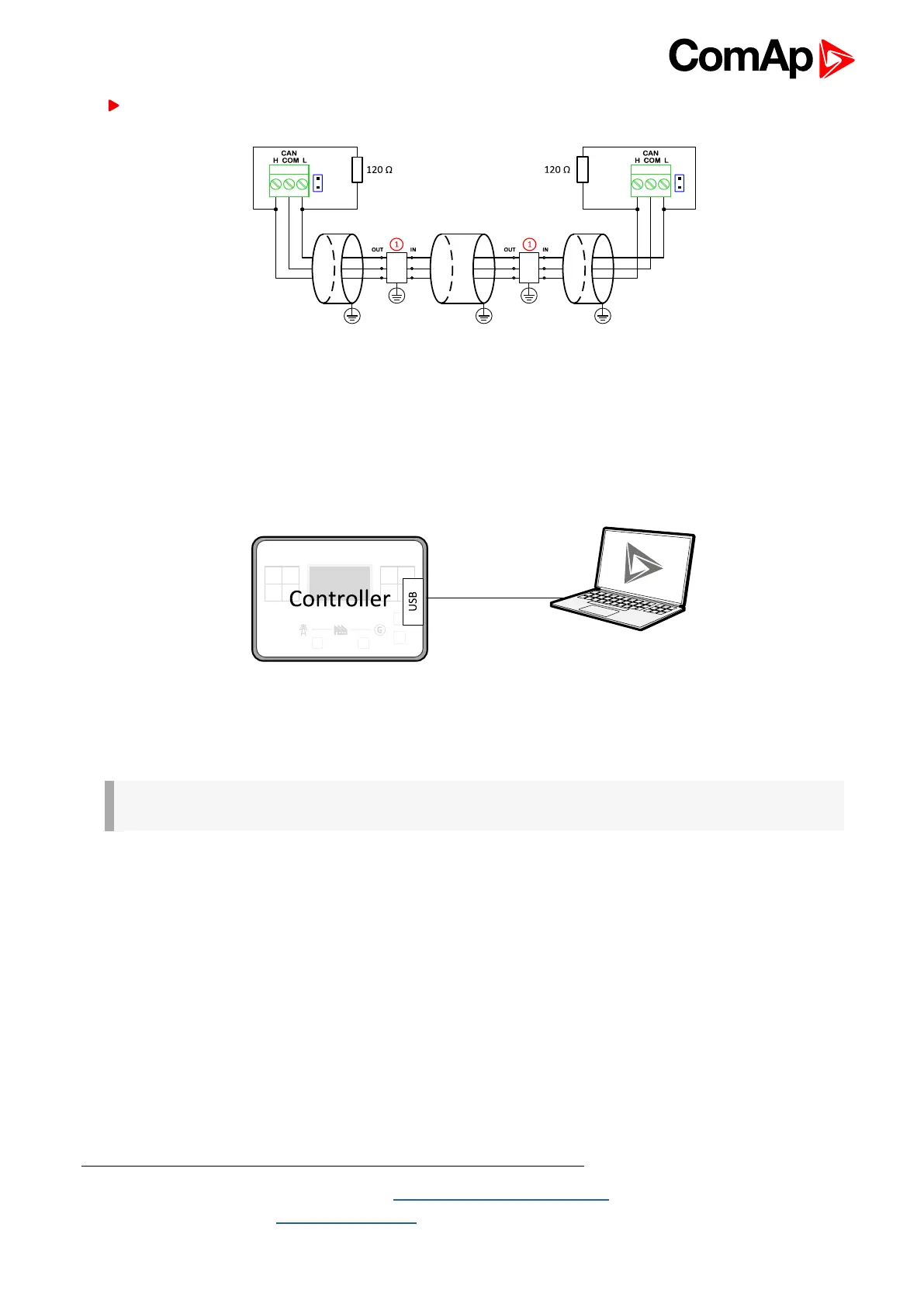

InteliLite 9 Global Guide
40
For longer distances or in case of surge hazard (connection out of building, in case of storm etc.)
Image 4.24 CAN bus wiring for longer distances
Recommended PT5-HF-12DC-ST
1
4.4.11 USB
This is required for computer connection. Use the shielded USB A-B cable.
Image 4.25 USB connection
Controller can by also power by USB (only for service purpose like a uploading firmware, change of
configuration etc.).
IMPORTANT: Power supply by USB is only for service purpose. Binary inputs and outputs are in
logical 0. Also plug-in modules are not working.
1
Protections recommended: Phoenix Contact (http://www.phoenixcontact.com): PT 5-HF-12DC-ST with PT2x2-
BE (base element) or Saltek (http://www.saltek.cz): DM-012/2 R DJ
