InteliLite 9 Global Guide
47

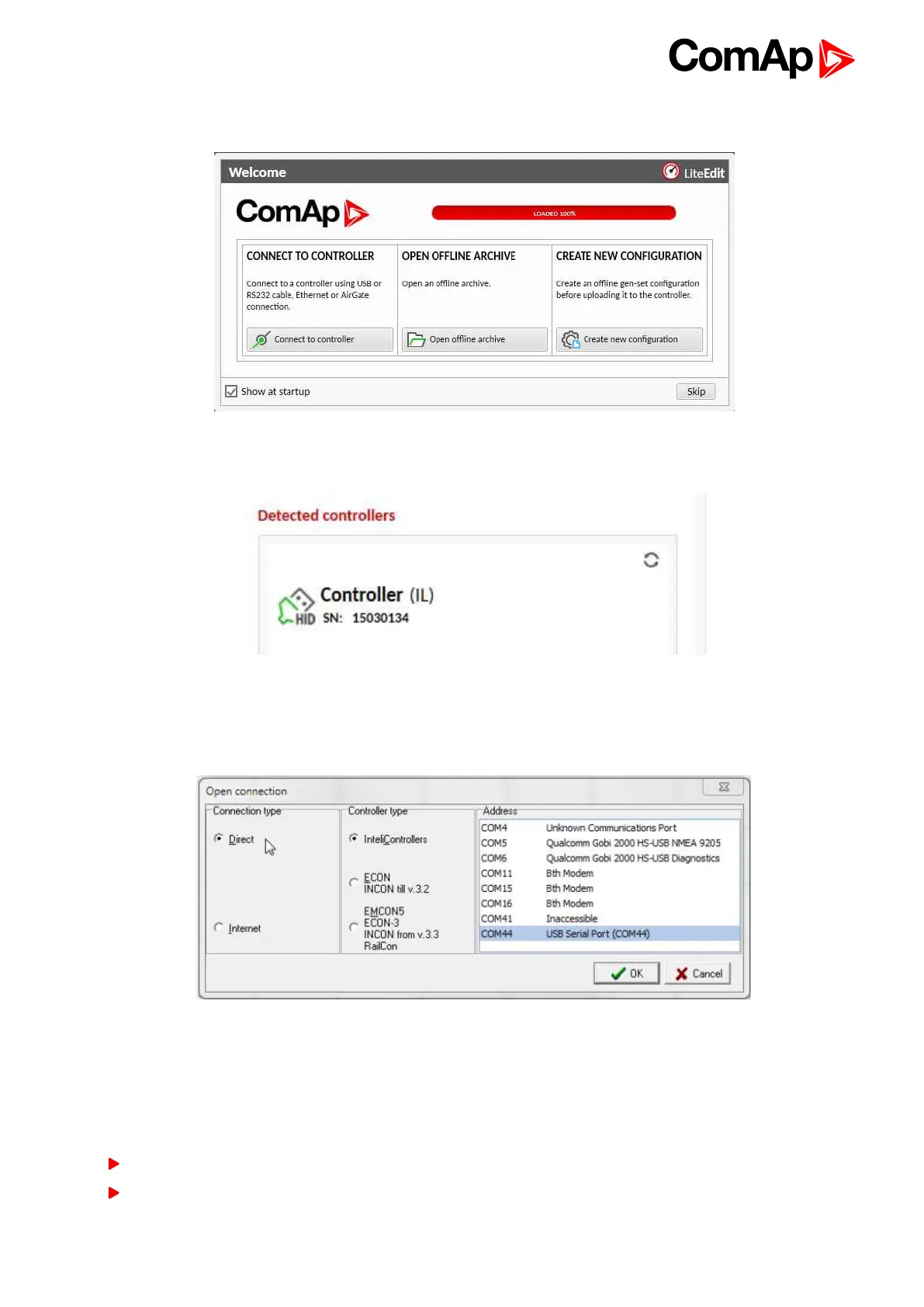

Connection using InteliConfig
Image 5.1 First screen of InteliConfig - select connect to controller
Image 5.2 Second screen of InteliConfig - select detected controllers
Connection using WinScope
Image 5.3 WinScope screen - select direct connection
5.2.2 RS232/RS485
It is possible to connect to the controller using RS232 or RS485 direct connection (serial port or USB to
RS232/RS485 converter may be used). The following settings need to be checked in the controller:
COM1 Mode (page 221) = Direct
Controller Address (page 154) has to be set to the same value as in the PC tool
