Connection using WinScope

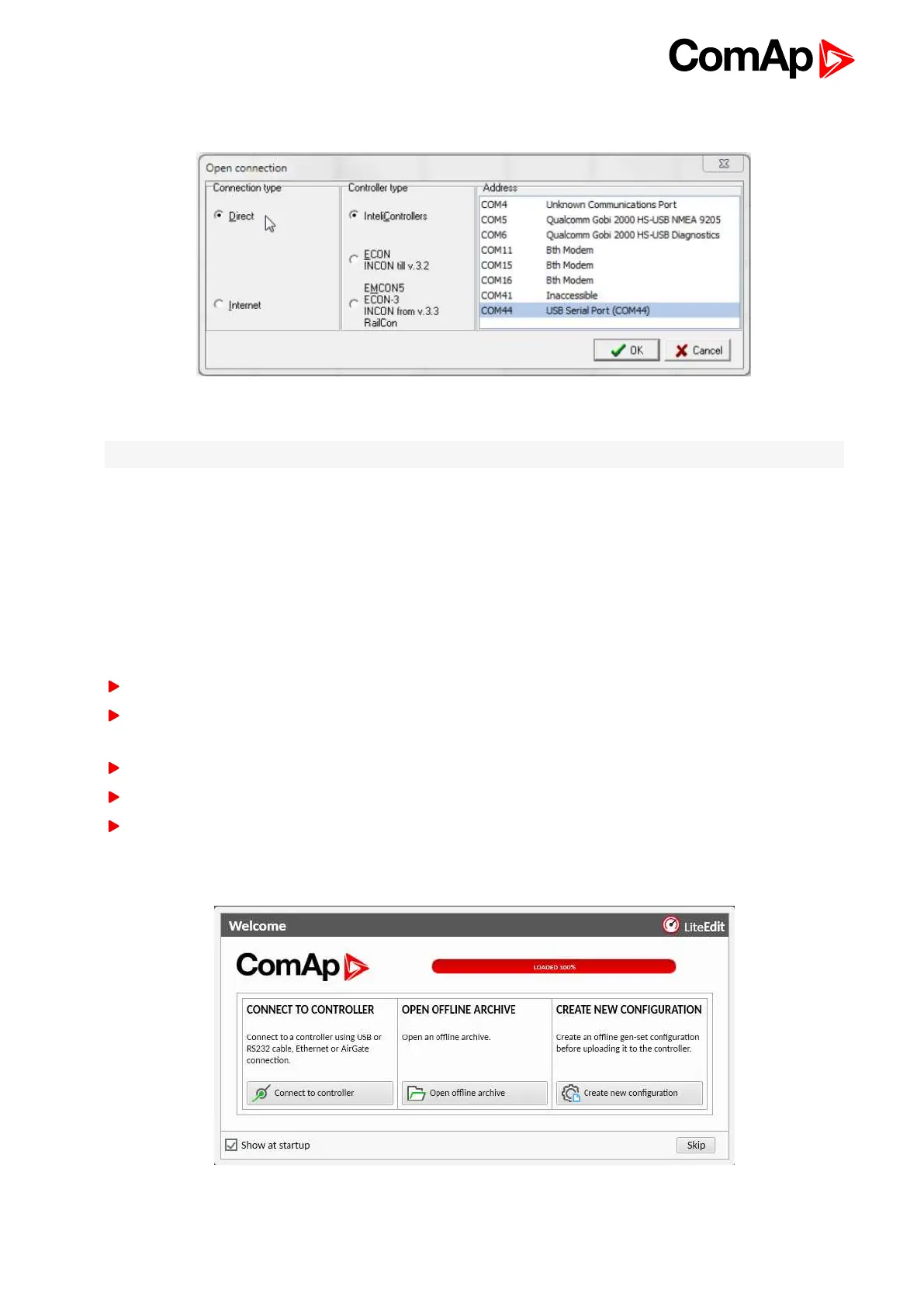

Image 5.6 WinScope screen - select direct connection
Note: Winscope supports only 19200, 38400, 57600 speeds.
5.2.3 Ethernet
It is possible to connect to the controller using ethernet port.
Direct connection
When you use direct connection the controller needs to be reachable directly from the PC you use (i.e. one LAN
or WAN without any firewalls and other points that may not allow the connection). The following settings need to
be checked in the controller:
Controller Address (page 154) has to be set to the same value as in the PC tool
IP Address Mode (page 235) can be set to AUTOMATIC when there is DHCP service is available. Otherwise
it needs to be set to FIXED
IP Address (page 236) is either set automatically or it can be adjusted to a specific requested value
Subnet Mask (page 236) is either set automatically or it can be adjusted to a specific requested
Gateway IP (page 237) can be set here when it is used
Connection using InteliConfig
Image 5.7 First screen of InteliConfig - select connect to controller
