InteliLite 9 Global Guide
393
CM-GPRS

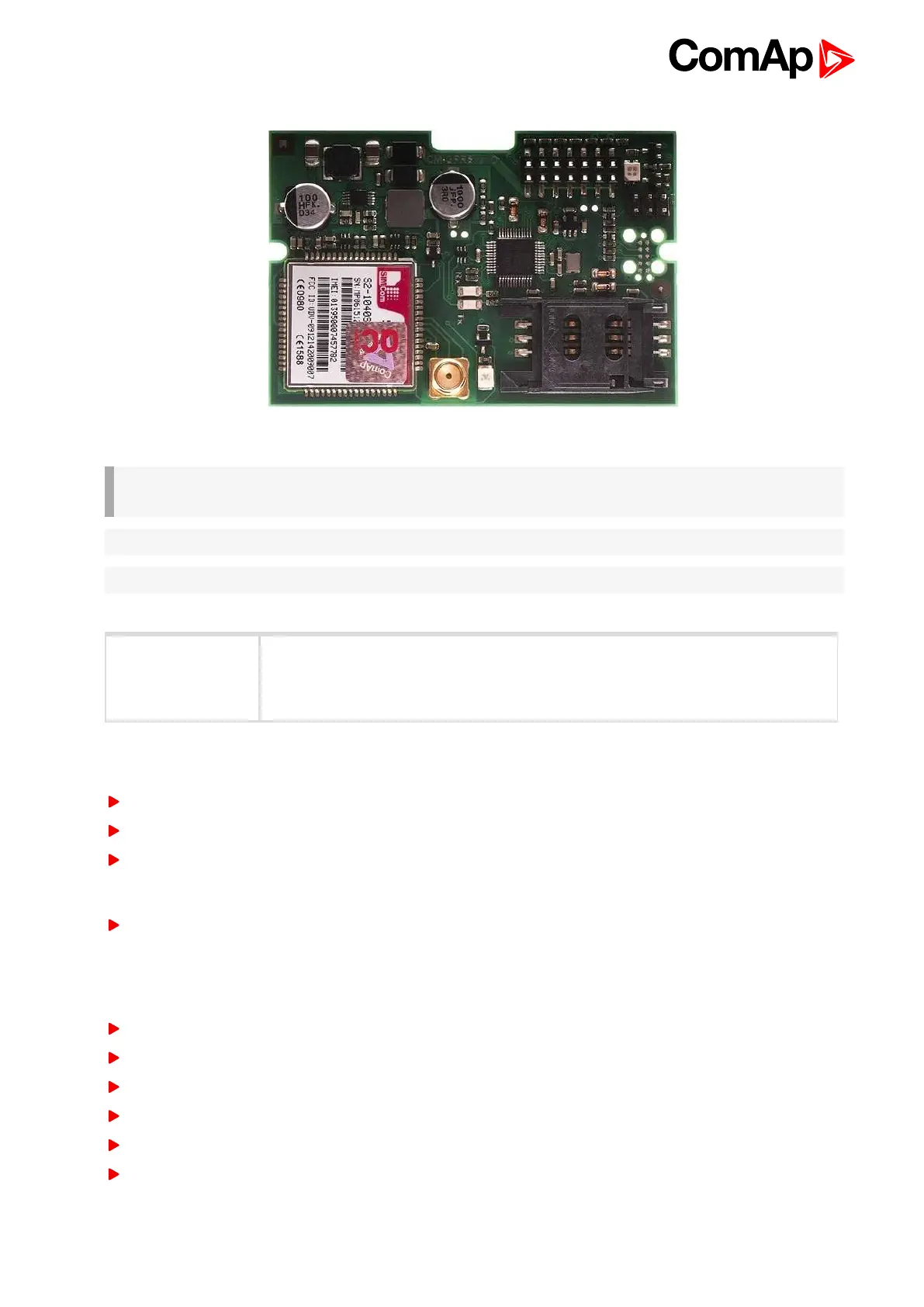

Image 9.8 CM-GPRS module
IMPORTANT: Any manipulation with plug-in module shall be done with disconnected power
supply to controller.
Note: GPRS and CSD services must be provided by your GSM/GPRS operator for successful operation.
Note: The GPRS and CSD connection should not be used for the firmware update process.
Power consumption
32 mA / 8 VDC
18 mA / 12 VDC
10 mA / 24 VDC
12 mA / 36 VDC
Technical data
SIM card settings
SIMcard to be used in CM-4G-GPS or CM-GPRS modules must be adjusted as follows:
SMS service enabled
Packet data (Internet access) enabled (when required for the selected mode of operation)
PIN code security disabled
How to start using CM-GPRS module
You will need a controller, CM-GPRS module, antenna and SIM card with SMS and packet data service.
Make sure that your SIM supports the packet data network type you want to use. I.e. if you want to use the
module in GPRS (2,5G) network you have to confirm with the operator that the particular SIM card does support
2,5G network.
Make sure SIM card does not require PIN code. Use any mobile phone to switch the SIM PIN security off.
Place the SIM card into slot on CM-GPRS card
Connect the antenna to Cellular module antenna connector.
Switch off the controller.
Insert CM-GPRS module into controller
Power up the controller.
