The module is plugged into the slot located on the rear side of the controller. To find more information about
installation of the modules see Plug-in module installation on page 43.
RS485 interface uses COM2 Mode (page 223) port of the controller. Use a cross-wired serial communication
cable with DB9 female connectors and signals Rx, Tx, GND.
Note: Also USB-RS485 convertor can be used.

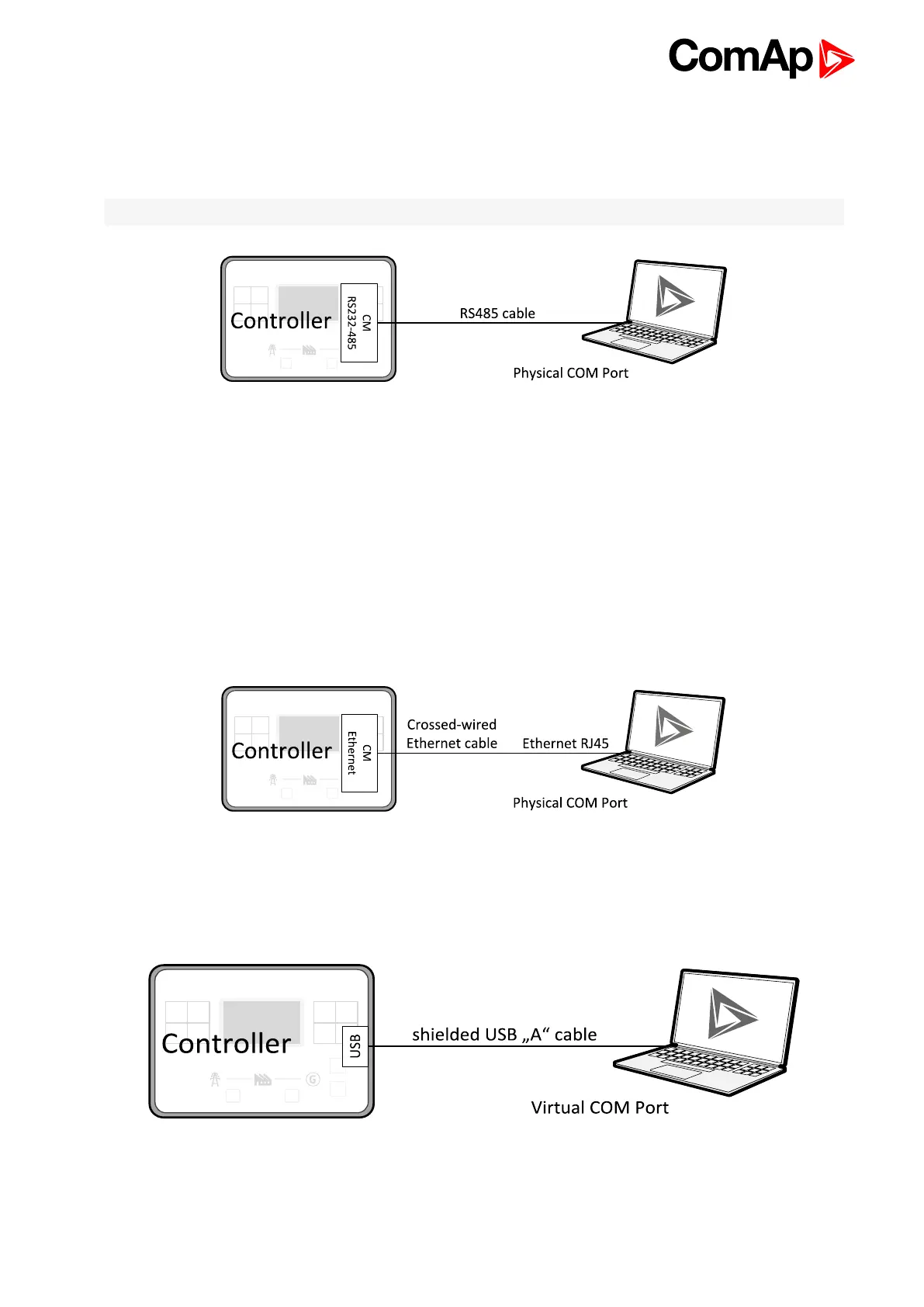

Image 6.3 RS485cable is used
Connection via Ethernet
A plug-in communication module CM-Ethernet is necessary for ethernet connection.
The module is plugged into the slot located on the rear side of the controller. To find more information about
installation of the modules see Plug-in module installation on page 43.
This connection type is used for communication with the controller from InteliConfig or any other PC tool. . Only
three remote clients can be connected at the same time.
To connect your PC tool to the controller use the INTERNET connection type and just put the CM-Ethernet IP
address into the gen-set address box in the PC tool.
Image 6.4 Ethernet cable is used
Connection via USB
USB interface uses HID profile.
Image 6.5 Shielded USBtype A cable is used
