InteliLite 9 Global Guide
399
EM-BIO8-EFCP
EM-BIO8-EFCP is optional plug-in card. Through this card controller can accommodate up to 8 binary inputs or
outputs. In InteliConfig PC configuration tool it is possible to easily choose if particular I/O will be binary input or
output.

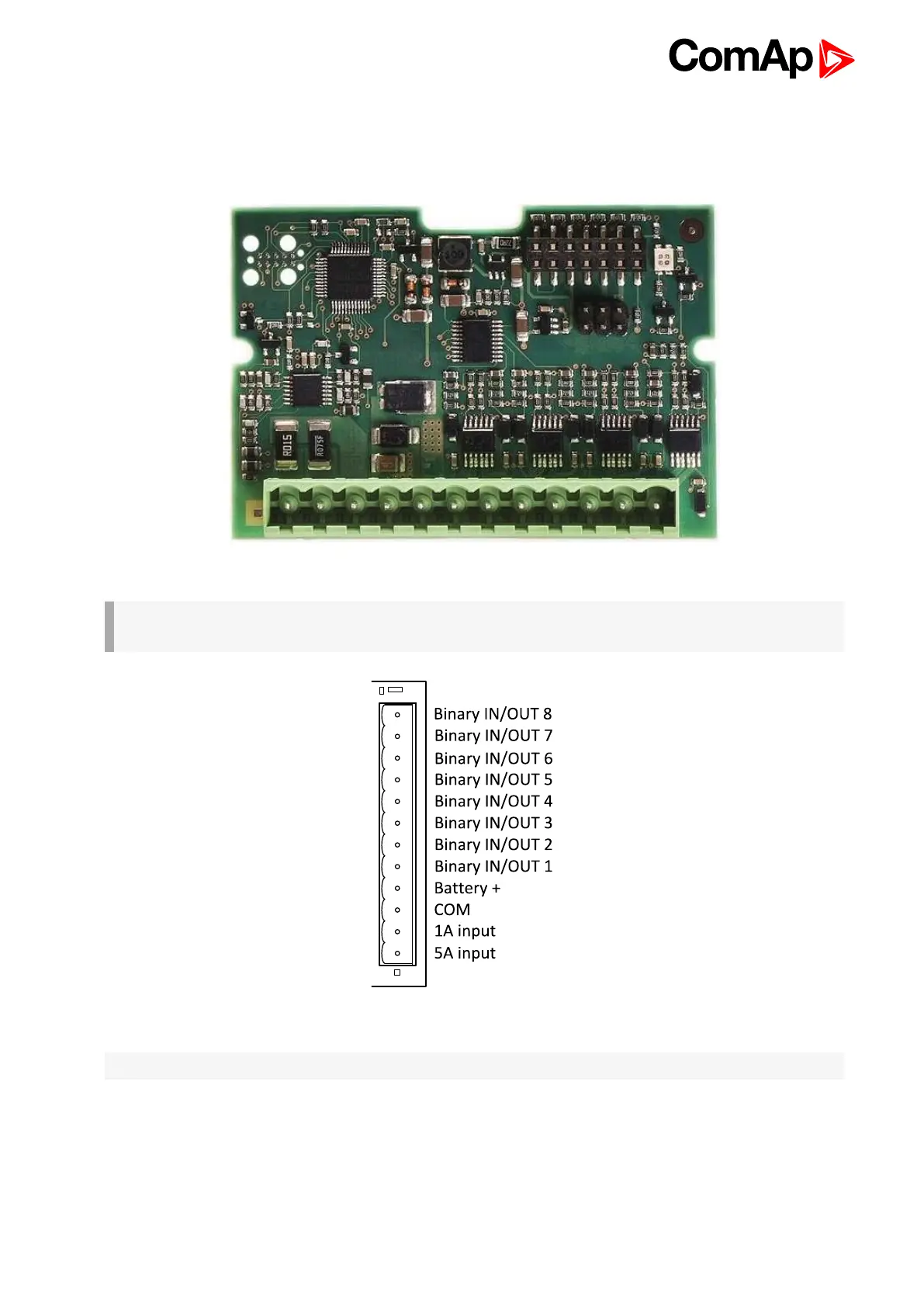

Image 9.12 EM-BIO8-EFCP interface
IMPORTANT: Any manipulation with plug-in module shall be done with disconnected power
supply to controller.
Image 9.13 Overview of EM-BIO8-EFCP
Note: Current inputs are supported only in MRS16 and AMF25 controllers.
