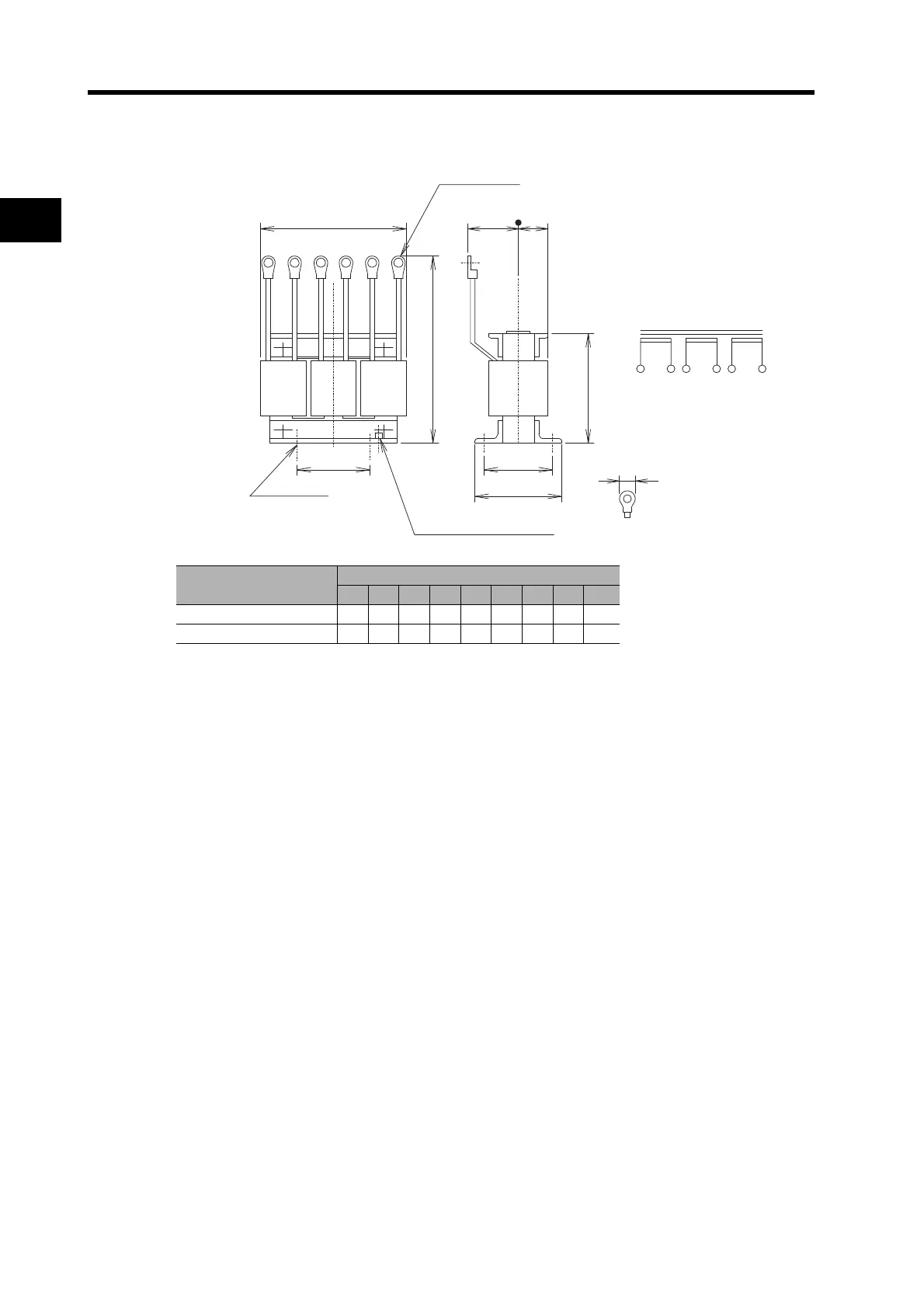

2-2 External and Mounting Hole Dimensions
2
Standard Models and Dimensions
 3G3AX-AL2110/-AL2220
Model
Dimensions (mm)
A C D H H1 X Y K W
3G3AX-AL2110 150 103 70 170 108 60 80 5.3 12
3G3AX-AL2220 180 113 75 190 140 90 90 8.4 16.5
W=Terminal width
H
H1
A
Ro R So S To T
C
Y±1X±1
W
55D
Ro R So S To T
Ground terminal (M6)
Connection Diagram
Four, 6 dia.
(Notch)
Terminal holes:
Six, K dia.
