9-6
9-1 Connection Examples
9
Appendix

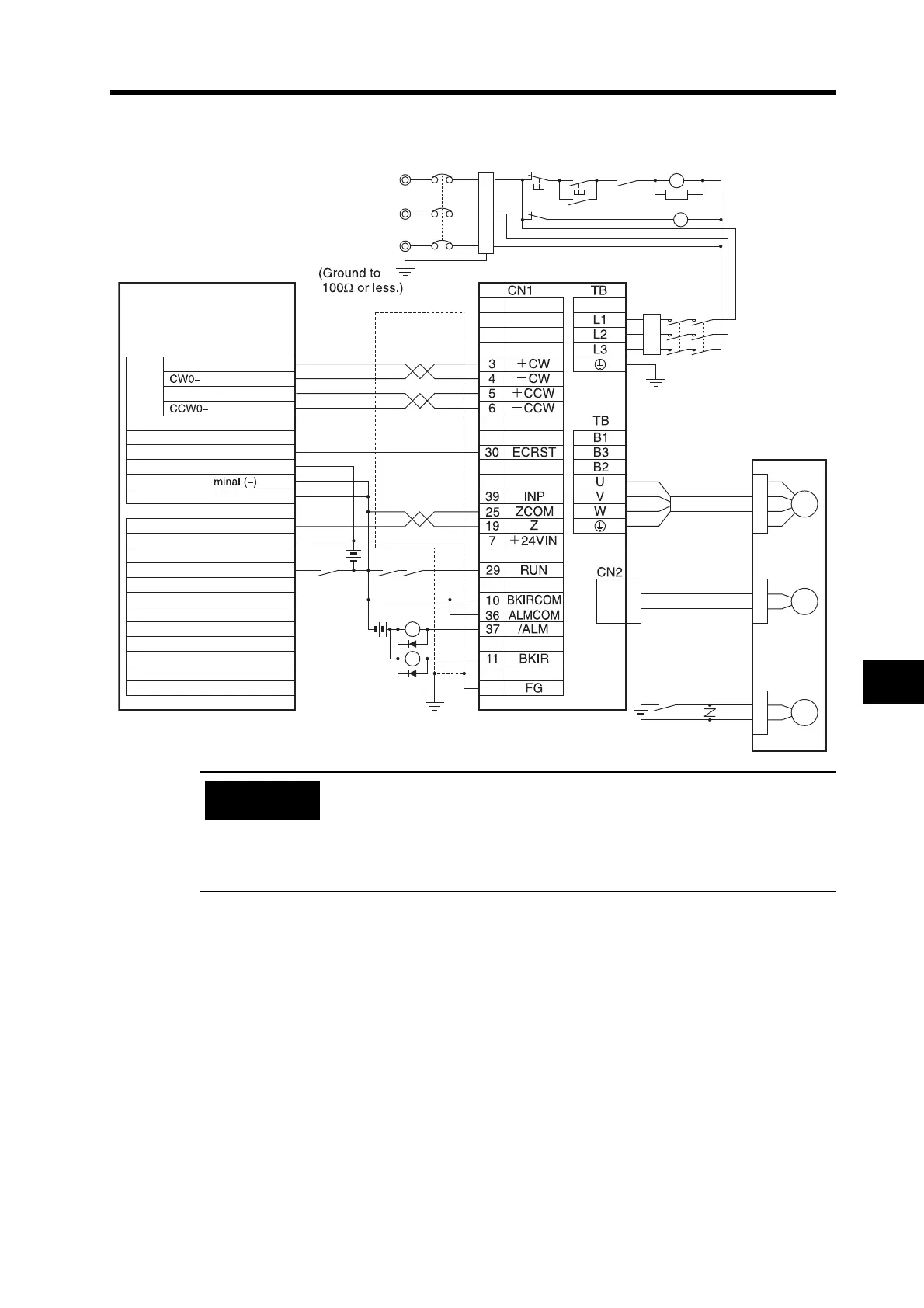

Connection Example 6: Connecting to SYSMAC CP1H-Y@@DT-D
Incorrect signal wiring can cause damage to Units and the Servo Drive.
Leave unused signal lines open and do not wire them.
Do not share the power supply for brakes (24 VDC) with the 24-VDC power
supply for controls.
The diode recommended for surge absorption is the RU 2 manufactured
by Sanken Electric or the equivalent.
S
X1
XB
R
T
NFB
X1
MC1
M
E
B
XB
MC2
24 VDC
24 VDC
24 VDC
Shell
Output terminal block
CW0+
CCW0+
Origin search 0 (CIO 0101.02)
24-VDC input terminal (+)
COM (CIO 0101.00 to CIO 0101.03)
Input terminal block
24-VDC input ter
Pulse 0 origin input signal (CIO 0001.03)
COM (CIO 0000)
Pulse 0 origin proximity input signal (CIO 0001.05)
Reactor
CP1H-Y20DT-D R88-GT@
Noise filter
3-phase 200 to 240 VAC 50/60 Hz
R88M-G@
Servomotor
Power Cable
R88A-CAG@
Red
White
Blue
Green/
Yellow
Encoder Cable
R88A-CRG@
Brake Cable
R88A-CAGA@B
R88A-CAGE@B
Pulse
output 0
Servo error display
X1
PL
ONOFF
X
1MC
Main circuit power supply
Main circuit contactor
1MC
surge suppressor
Precautions
for Correct Use
