3-5 Servo Relay Units and Cable Specifications
3
Specifications
 XW2B-80J7-12A
This Servo Relay Unit connects to the following OMRON Programmable Controllers.

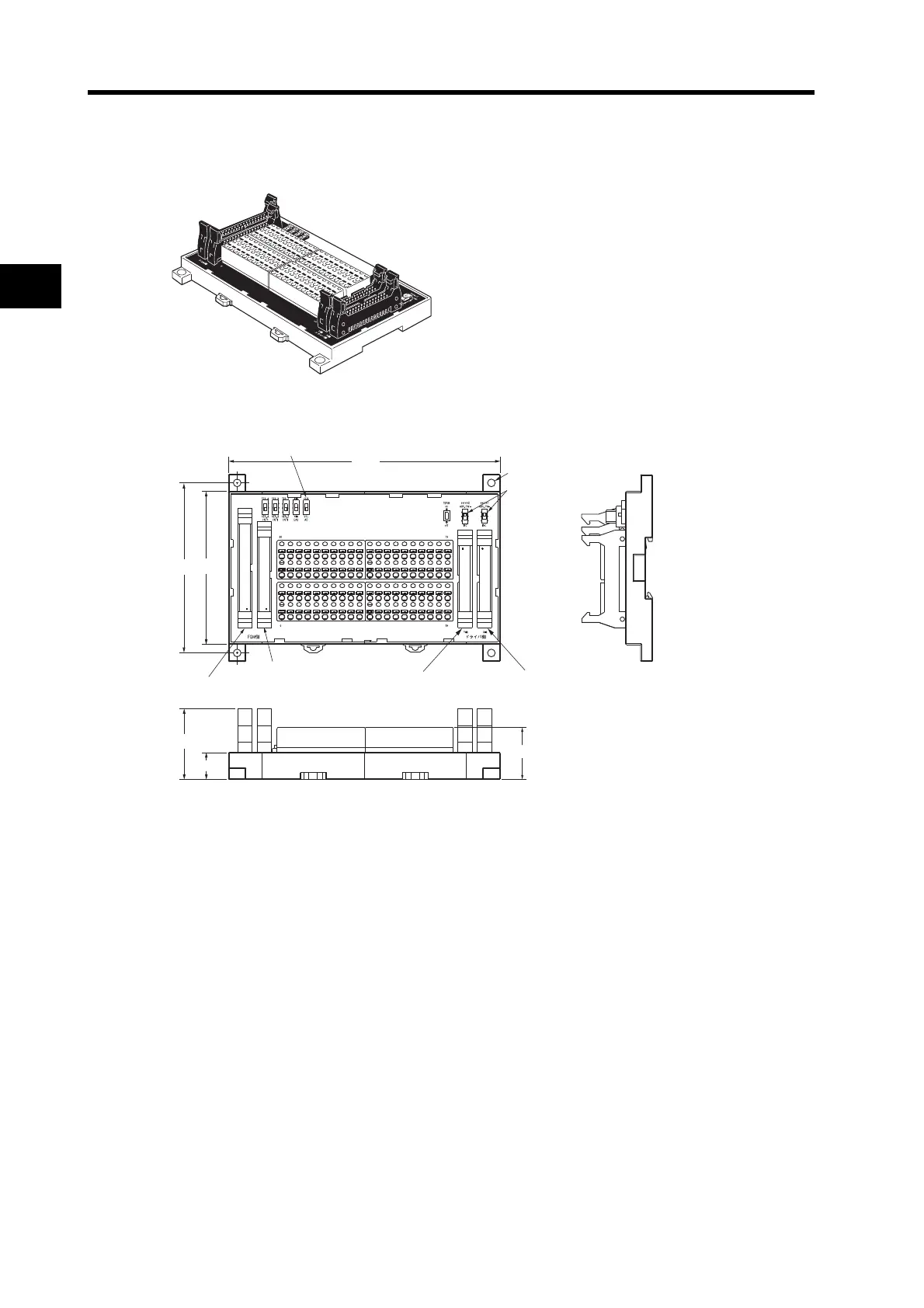

Dimensions
• FQM1-MMA22
• FQM1-MMP22
160
100
90
41.7
15.9
30.7
X-axis Servo Drive
Servo Drive
phase B
selection
switch
Y-axis Servo Drive
Controller general-purpose I/O
Controller special I/O
Signal selection switch
4.5 dia.
