3-5 Servo Relay Units and Cable Specifications
3
Specifications

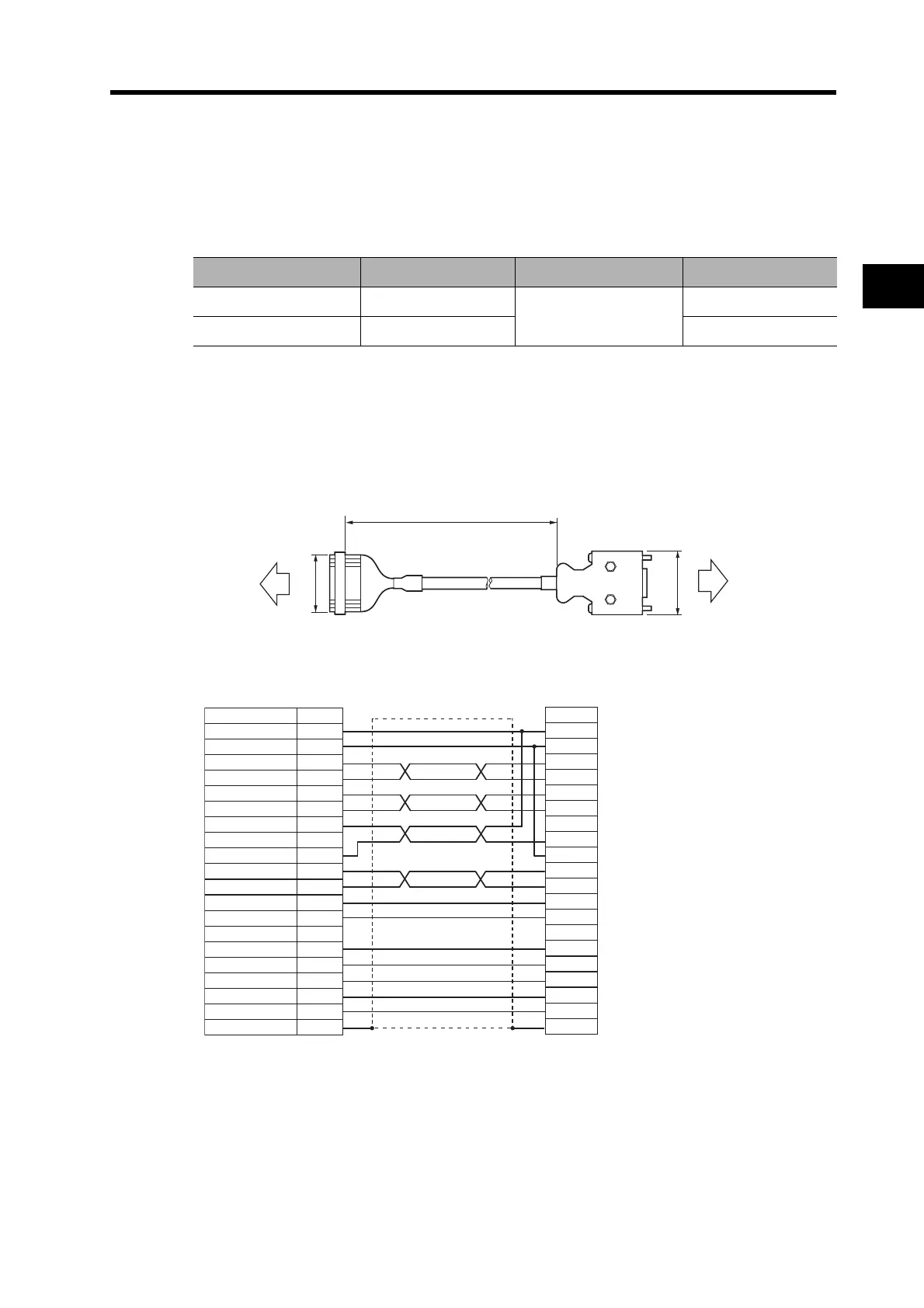

Servo Drive-Servo Relay Unit Cable Specifications
 Servo Drive Cable (XW2Z-@J-B25)
This Cable connects the Servo Drive to a Servo Relay Unit (XW2B-20J6-1B/-3B, XW2B-40J6-2B).
Cable Models
Note Do not use a Servo Relay Unit Cable for line receiver inputs (+CWLD: CN1 pin 44, -CWLD:
CN1 pin 45, +CCWLD: CN1 pin 46, -CCWLD: CN1 pin 47).
Use a General-purpose Control Cable (R88A-CPG@S) and prepare wiring suited for the
controller to be connected.
Connection Configuration and Dimensions
Wiring
Servo Relay Unit Connector
Connector socket: XG4M-2030
Strain relief: XG4T-2004
Cable
AWG28 × 10P UL2464
Servo Drive Connector
Connector plug: 10150-3000PE (Sumitomo 3M)
Connector case: 10350-52A0-008 (Sumitomo 3M)
Model Length (L) Outer diameter of sheath Weight
XW2Z-100J-B25 1 m
8.1 dia.
Approx. 0.1 kg
XW2Z-200J-B25 2 m Approx. 0.2 kg
52.4
30
Servo Drive
Servo Relay Unit
XW2B-20J6-1B
XW2B-40J6-2B
XW2B-20J6-3B
L
R88D-
GT@
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
No.
Servo Relay Unit Servo Drive
Wire/mark color
Blue/Red (1)
Pink/Red (1)
Pink/Black (1)
Blue/Red (2)
Blue/Black (2)
Green/Red (1)
Green/Black (1)
Pink/Red (2)
Pink/Black (2)
−
−
Orange/Red (1)
Green/Black (2)
Green/Red (2)
Orange/Black (1)
Orange/Red (2)
Not specified
Blue/Black (1)
Gray/Red (1)
Gray/Black (1)
7
38
5
6
3
4
30
10
23
24
39
29
27
31
11
37
36
Shell
No.
