3-99
3-5 Servo Relay Units and Cable Specifications
3
Specifications
3-5 Servo Relay Units and Cable Specifications
This section provides the specifications for the Servo Relay Units and Cables used for connecting
to Position Control Units for OMRON Programmable Controllers (SYSMAC). Select the models that
match the Position Control Unit to be used.
Servo Relay Units Specifications

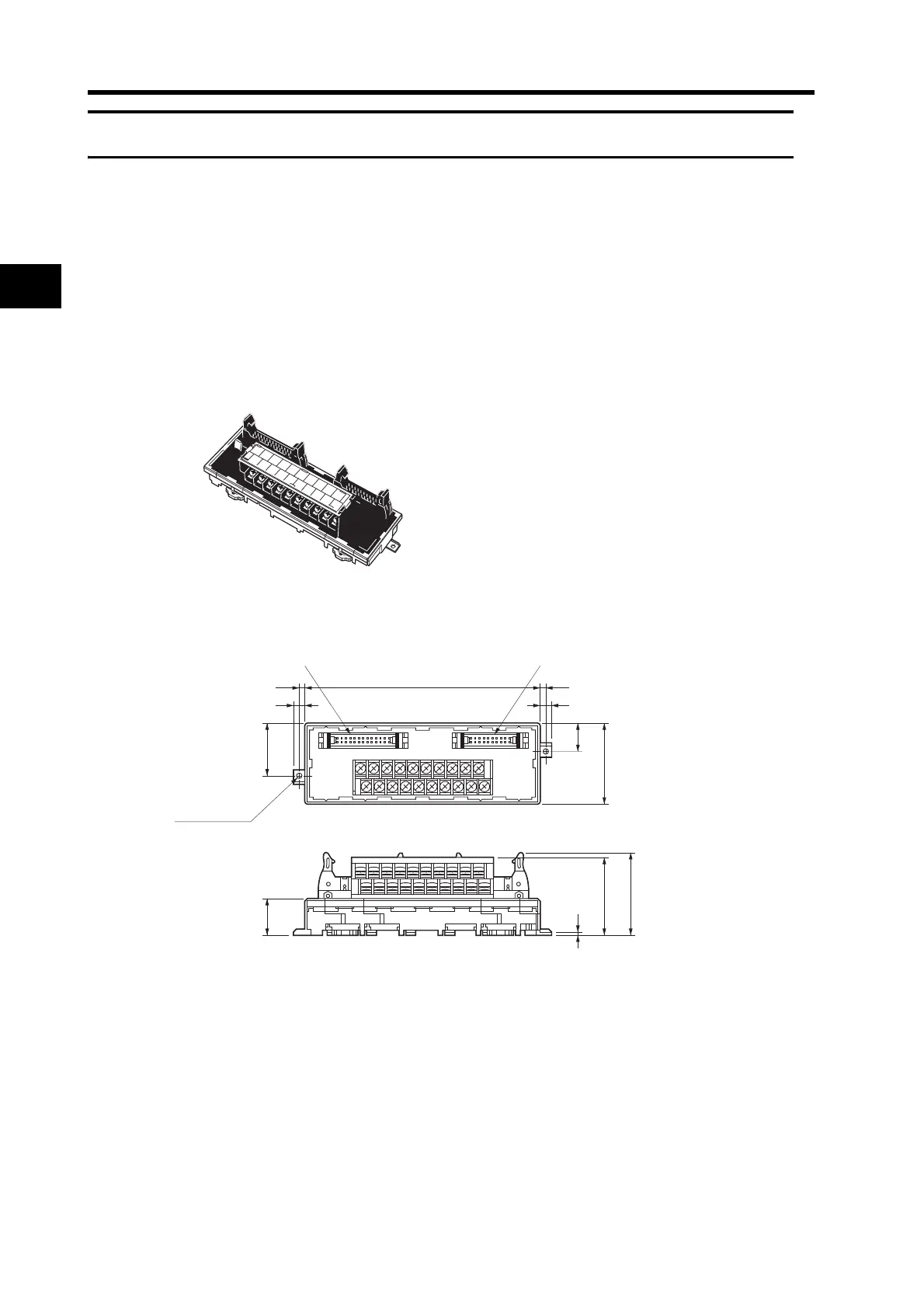

XW2B-20J6-1B
This Servo Relay Unit connects to the following OMRON Position Control Units.
Dimensions
• Terminal Block pitch: 7.62 mm.
• CJ1W-NC113/-NC133
• CS1W-NC113/-NC133
• C200HW-NC113
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
29.5
7
3.5
7
3.5135
15.5
45
20.5
44.3
2
0
10
9
19
Position Control Unit connector Servo Drive connector
(46)
Two, 3.5 dia.
To Next Page
