6-4 Setting the Mode
6
Operation
Copy Mode
In Copy Mode, user parameters set in the Servo Drive can be copied to the Parameter Unit, and
user parameters stored in the Parameter Unit can be copied to the Servo Drive.
This function can be used to easily set the same user parameters for more than one Servo Drive.
Copying from the Servo Drive to the Parameter Unit
1. Displaying Copy Mode
2. Executing Copying
3. Returning to Copy Mode

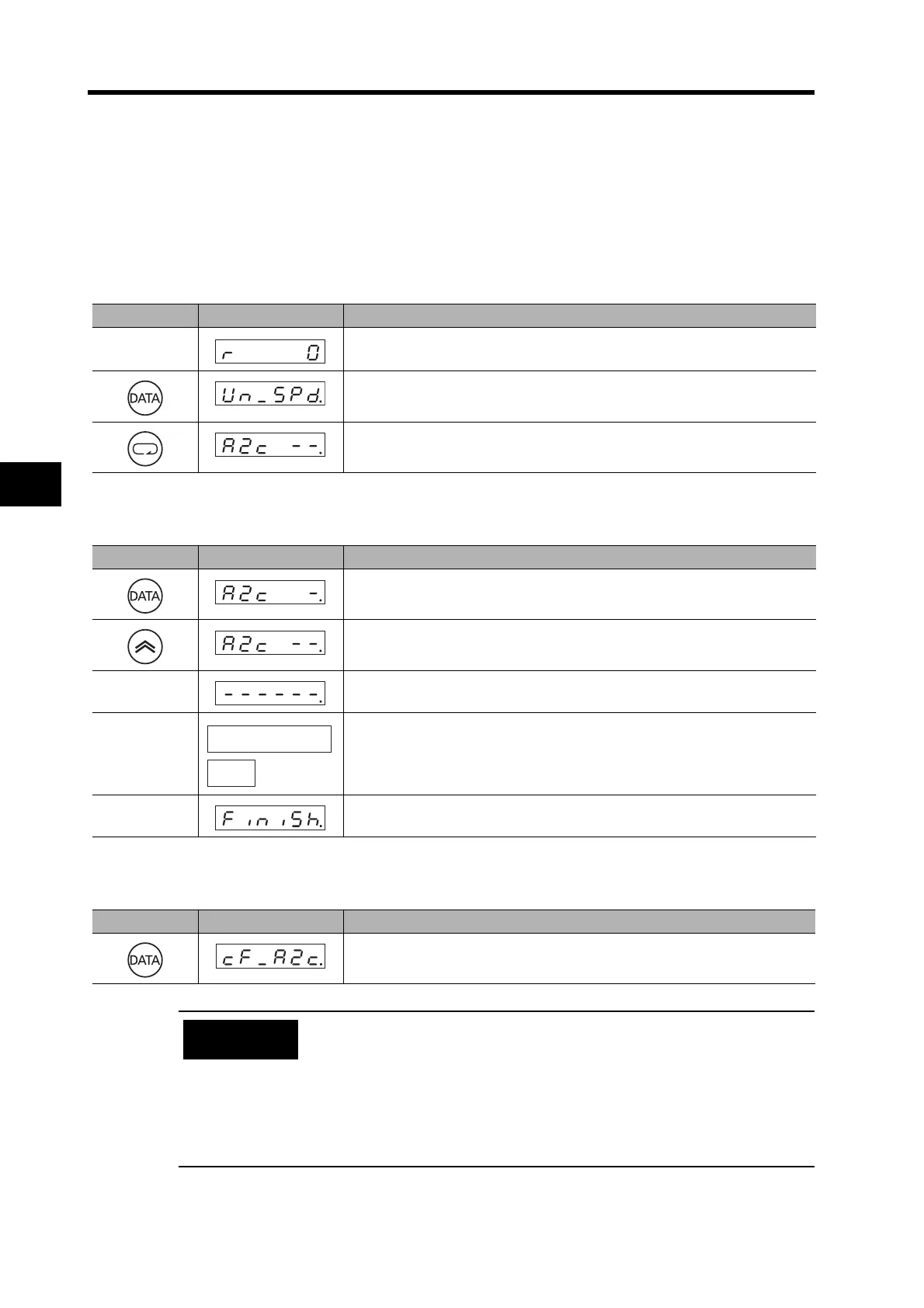

Key operation Display example Explanation
The item set for the Default Display (Pn01) is displayed.
Press the Data key to display Monitor Mode.
Press the Mode key five times to display Copy Mode.
Key operation Display example Explanation
Press the Data key to enter Copy Mode.
Press and hold the Increment key until “EEPCLR” is displayed.
The bar indicator will increase when the key is pressed for 3 s or longer.
The bar indicator will increase.
Initialization of the EEPROM in the Parameter Unit will start.
This display indicates a normal completion.
Key operation Display example Explanation
Press the Data key to return to Copy Mode.
If “Error” is displayed before completion, repeat the procedure from the
beginning. Press the Data key to clear the error.
Do not disconnect the Parameter Unit from the Servo Drive while copying
is being performed. If the Parameter Unit is disconnected, connect it and
then repeat the procedure from the beginning.
If errors are repeatedly displayed, the following may be the cause: cable
disconnection, connector contact failure, incorrect operation due to noise,
or EEPROM fault in the Parameter Unit.
