Omron R88D-GT series User Manual

3-19
3-1 Servo Drive Specifications
3
Specifications

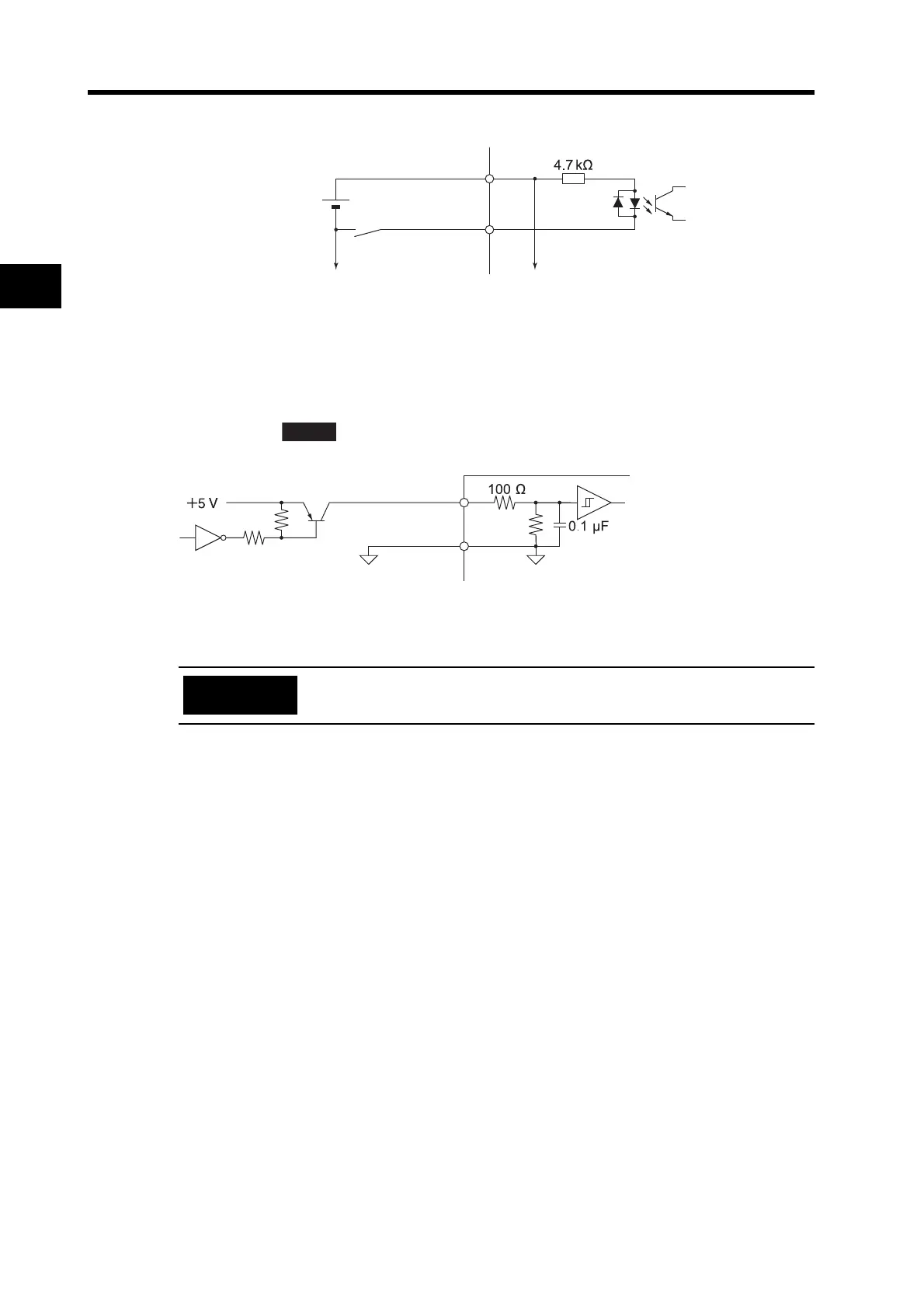

 Sequence Input
 Sensor Input
Sensor ON Input
A PNP transistor is recommended.
29RUN
7+24VIN
Minimum ON time:
40 ms
Signal Levels ON level: 10 V min.
OFF level: 3 V max.
External power supply:
12 VDC ±5% to
24 VDC ±5%
Power supply capacity:
50 mA min. (per Unit)
Photocoupler input
To other input circuit ground commons
To other input circuits
ABS
13
SENGND
20SEN
0 V
High level: 4 V min.
Low level: 0.8 V max.
4.7 k
Servo Drive
Input voltage:
5 VDC - 1 mA
When at high level:
Approx. 1 mA
7406 or the equivalent
Signal Levels
Precautions
for Correct Use

Omron R88D-GT series Specifications
