1VesselViewappoverview
EnginedatafromMercuryenginescanbedisplayedintheVesselViewappwhentheMFDis
connectedtothesameSeaTalkng®/NMEA2000backboneasMercuryenginegateway.
Note:
•AV
esselViewapppageiconwillbeavailableontheHomescreenwhen
Mercuryisselectedas
theEnginemanufacturerduringtheMFD
’sinitialstartupwizard.
•TheVesselViewappcanalsobemadeavailablebychangingtheEnginemanufacturersettingto
MercuryandmanuallyaddingaVesselViewapppageicontotheHomescreen.
–TheEnginemanufacturersettingislocatedintheMFD’sBoatdetailssettings: Homescreen>
Settings>Boatdetails>Enginemanufacturer:.
–TocreateaVesselViewapppageiconmanuallyreferto:
p.63—Creating/CustomizinganApppage
Enginedataforupto4enginescanbedisplayed.Thenumberofenginesdataisdisplayed
forisdeterminedbythenumberofenginesspecifiedintheMFD ’sboatdetailssettingsmenu:
Homescreen>Settings>Boatdetails>Numofengine:.
Dataforportengine(s)isdisplayedintheleftdial,dataforstarboardengine(s)isdisplayedinthe
rightdial.In3enginesystemstherightdialisalsousedtodisplaydatafortheCenterengine .
In3and4engineconfigurationstheRPMdialandtransmissiongraphicsaredynamicandwillswitch
betweenenginesunderdifferentconditions’

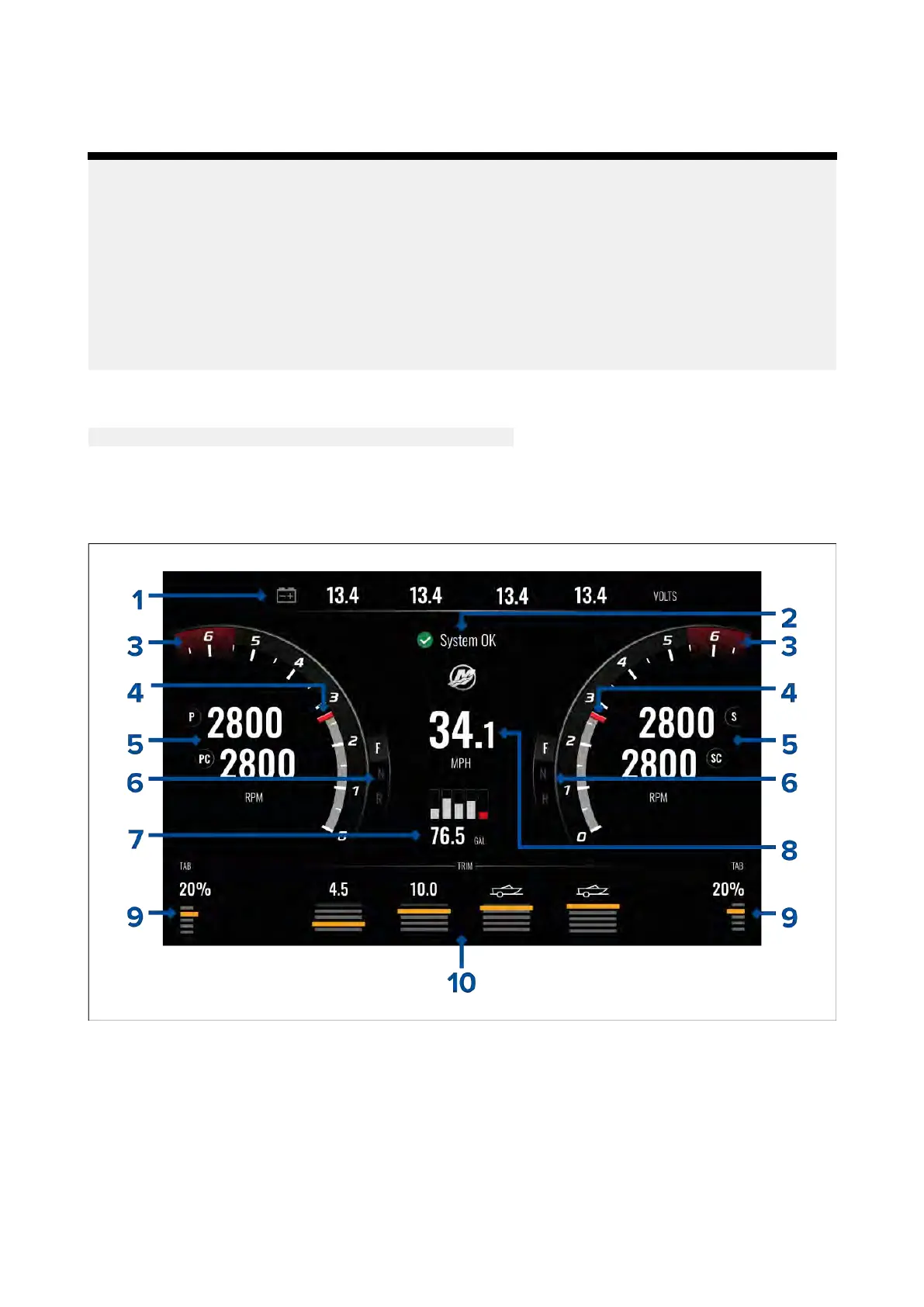

1.Enginebatteryvoltages—Thenumberofbatteriesdisplayedisdeterminedbythenumberof
enginesi. e.:1batteryforeachengine.
2.Systemstatus—Enginestatus,andstartupsequenceisdisplayed.
3.DynamicengineRPMredzone—TheRPMredzoneisdeterminedautomaticallybasedon
enginetype.WhenanenginereachestheRPMredzonetheredzonecolorwillchangefrom
darkredtobrightred.
4.DynamicengineRPMindicator—Indicatestheengine’scurrentRPM.
5.EngineRPMvalue—DisplayscurrentRPMvalues.
6.Dynamictransmissionstatus—Indicatesthecurrenttransmissiongear.
