6. Function blocks
6.1 Manufacturer function blocks
6.1.1.4 RC - Real-time clock

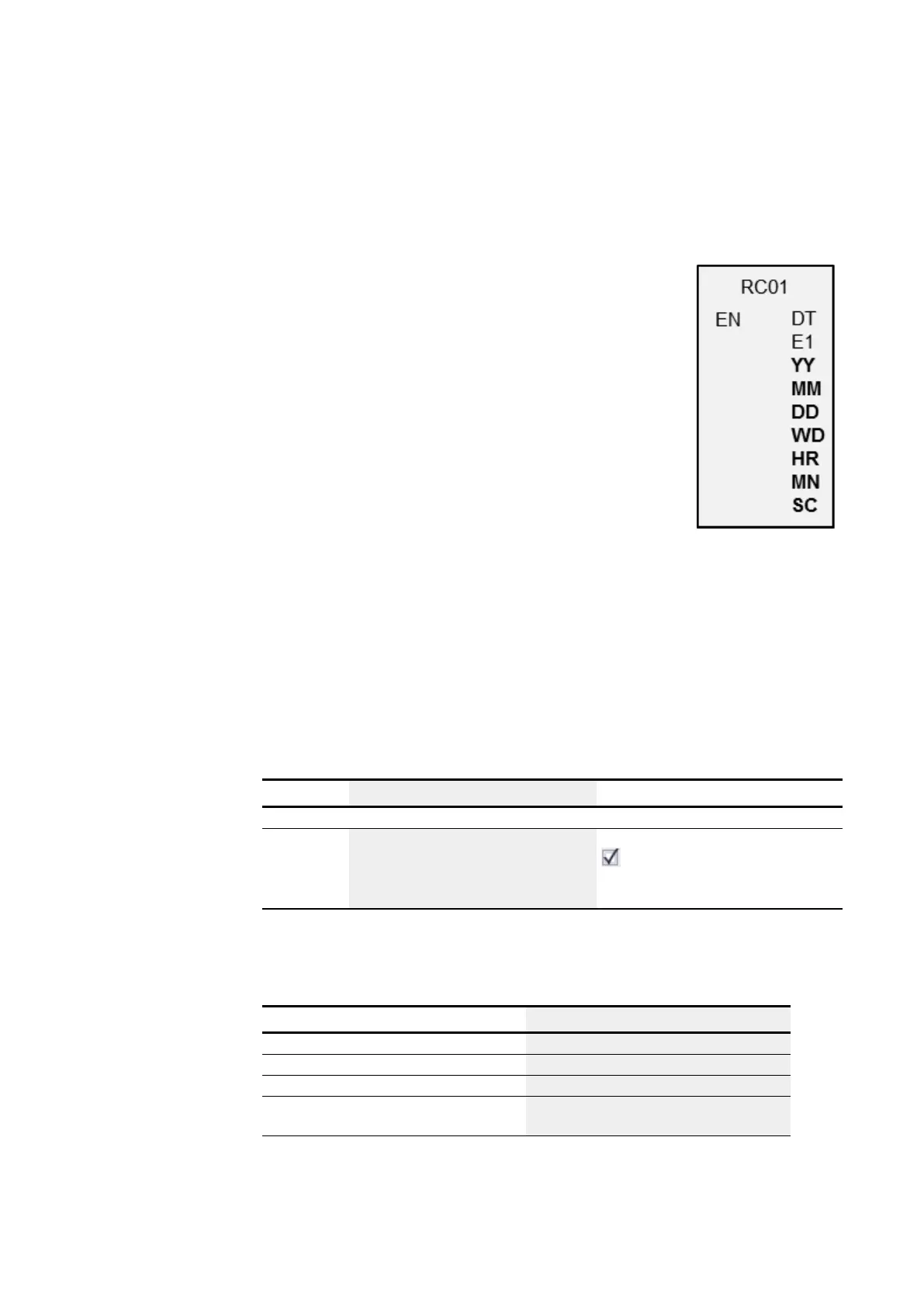

General
easyE4 base devices provide exactly one real-time clock
RC01.
This function block can be used to read the date and time value
of the device's real-time clock. This value is output in seven
individual parameters than can each be processed further indi-
vidually. This makes it very easy to select recurring events
with a downstream comparator function block.
Operating principle
If the function block is enabled, the date and time value from the device's real-time
clock will be output at the function block outputs: YY (year), MM (month), DD (day), WD
(day of the week), HR (hours), MN (minutes), SC (seconds).
Function block output DT signals whether the clock has been switched to daylight sav-
ing time.
The function block and its parameters
Function block inputs
Description Note
(Bit)
EN 1: Activates the function block. The checkbox for the
Function block release by EN is
necessary
parameter must first be enabled
Assigning operands
You can assign the following operands to the function block inputs that are numeric
inputs.
Operands Value inputs
Constant, timer constant x
MD, MW, MB - Markers x
NB, NW, ND - NET markers x
nNB, nND, nND- NET markers
NET stations n
x
192
