Eaton easyE4 series User Manual

6. Function blocks
6.3 UF - User function block
Programming view

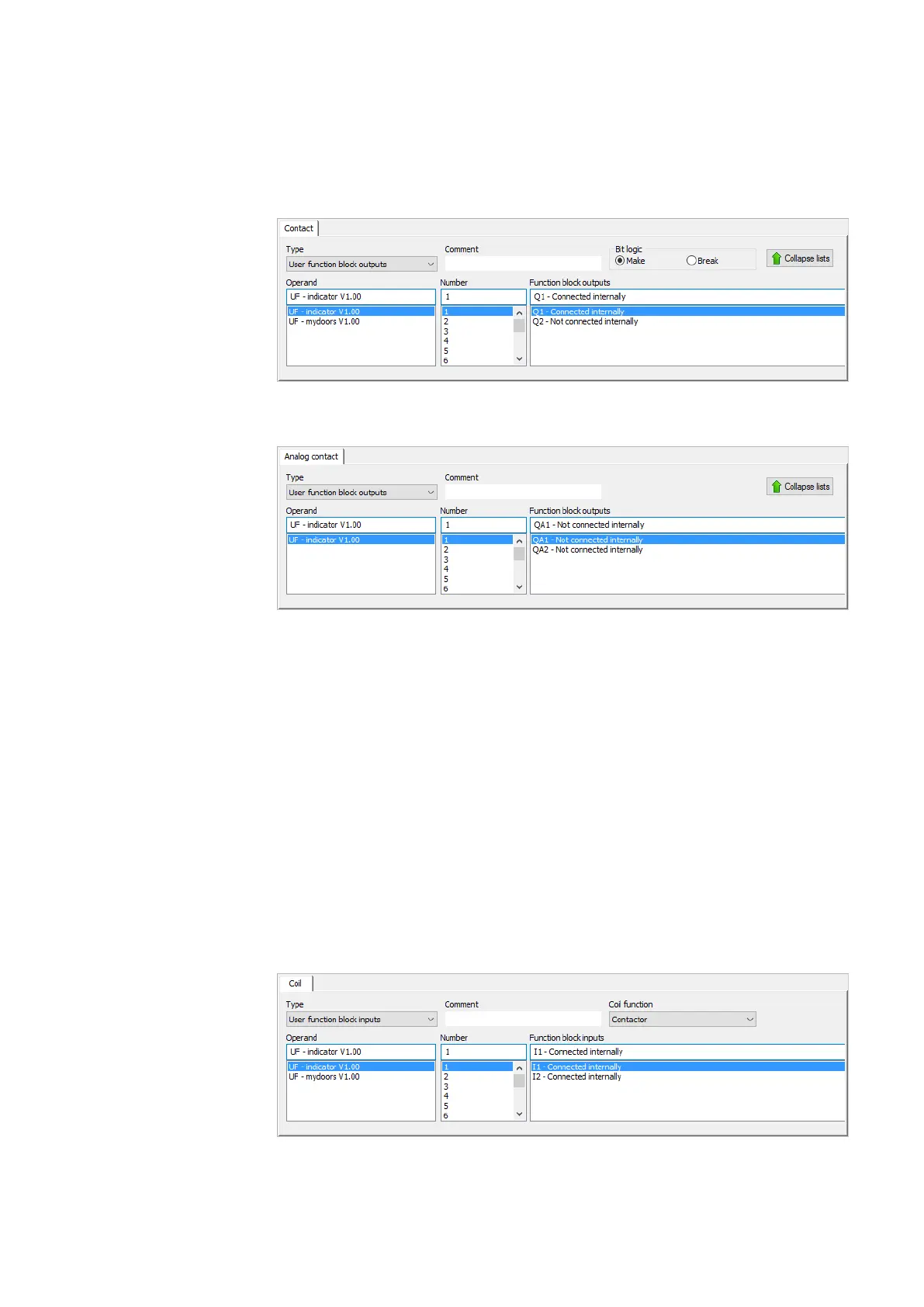

Figure 208: Contact tab
Programming view
Figure 209: Analog contact tab
If there are any user function blocks with bit and/or analog outputs available, you will be
able to select the "User function block outputs" option in the "Type" drop-down menu.
Meanwhile, the "Operand" drop-down menu will contain all registered user function
blocks that have bit and/or analog outputs.
The "Number" drop-down menu will contain all available function block numbers within
a range of 1 to 127, as well as the comment entered for the corresponding number.
Please note that any instance numbers that have already been assigned to other types
of user function blocks will not be available for selection.
Finally, the "Function block outputs" drop-down menu will list the various individual out-
puts, together with information specifying whether the contact is connected internally.
In addition, you will be able to select the bit logic for digital outputs.
Programming view
Figure 210: Coil tab
easyE4 11/18 MN050009 EN www.eaton.com
443
