Eaton easyE4 series User Manual

6. Function blocks
6.1 Manufacturer function blocks
6.1.3.3 CP – Comparator
General
easyE4 base devices provide 32 comparator function blocks
(Compare) CP01 to CP32.
Comparators are used to compare variables and constants
with each other and output the relationship between them:
Less than / Equal to / Greater than.
Operating principle
The function block compares values present at the inputs I1 and I2. The following con-
tacts close depending on the comparison result:
l I1 greater than I2, GT contact closes.
l I1 equal to I2, EQ contact closes.
l I1 less than I2, LT contact closes.

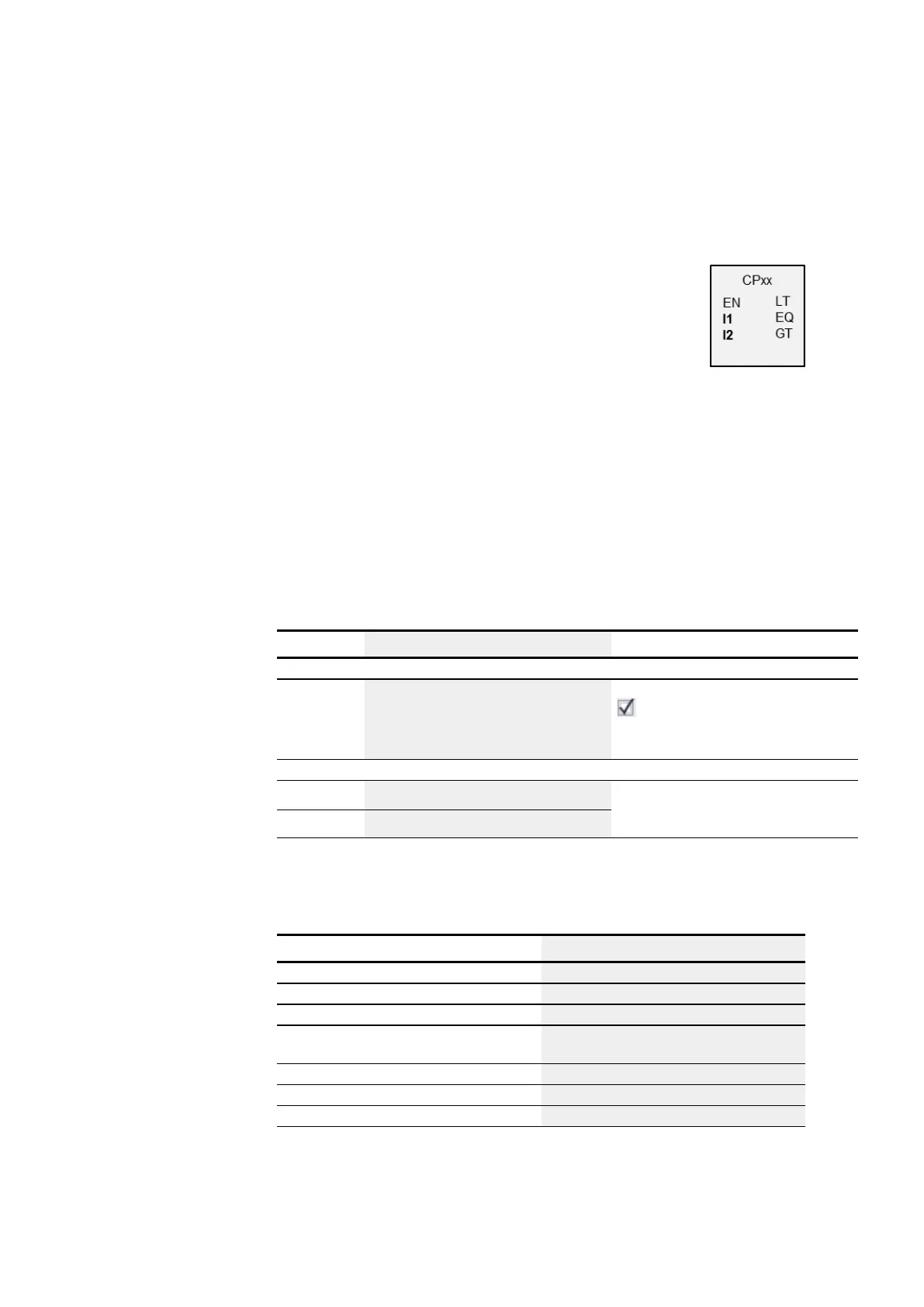

The function block and its parameters
Function block inputs
Description Note
(Bit)
EN 1: Activates the function block. The checkbox for the
Function block release by EN is
necessary
parameter must first be enabled
(DWord)
I1 Comparison reference value Integer value range:
-2,147,483,648 to +2,147,483,647
I2 Comparison value
Assigning operands
You can assign the following operands to the function block inputs that are numeric
inputs.
Operands Value inputs
Constant, timer constant x
MD, MW, MB - Markers x
NB, NW, ND - NET markers x
nNB, nND, nND- NET markers
NET stations n
x
IA - Analog input x
QA - Analog output x
QV - QV - Numeric output of a FB x
You can assign the following operands to the function block inputs that are bit inputs:
easyE4 11/18 MN050009 EN www.eaton.com
255
