8. microSD memory card
8.1 Automatic booting from the card

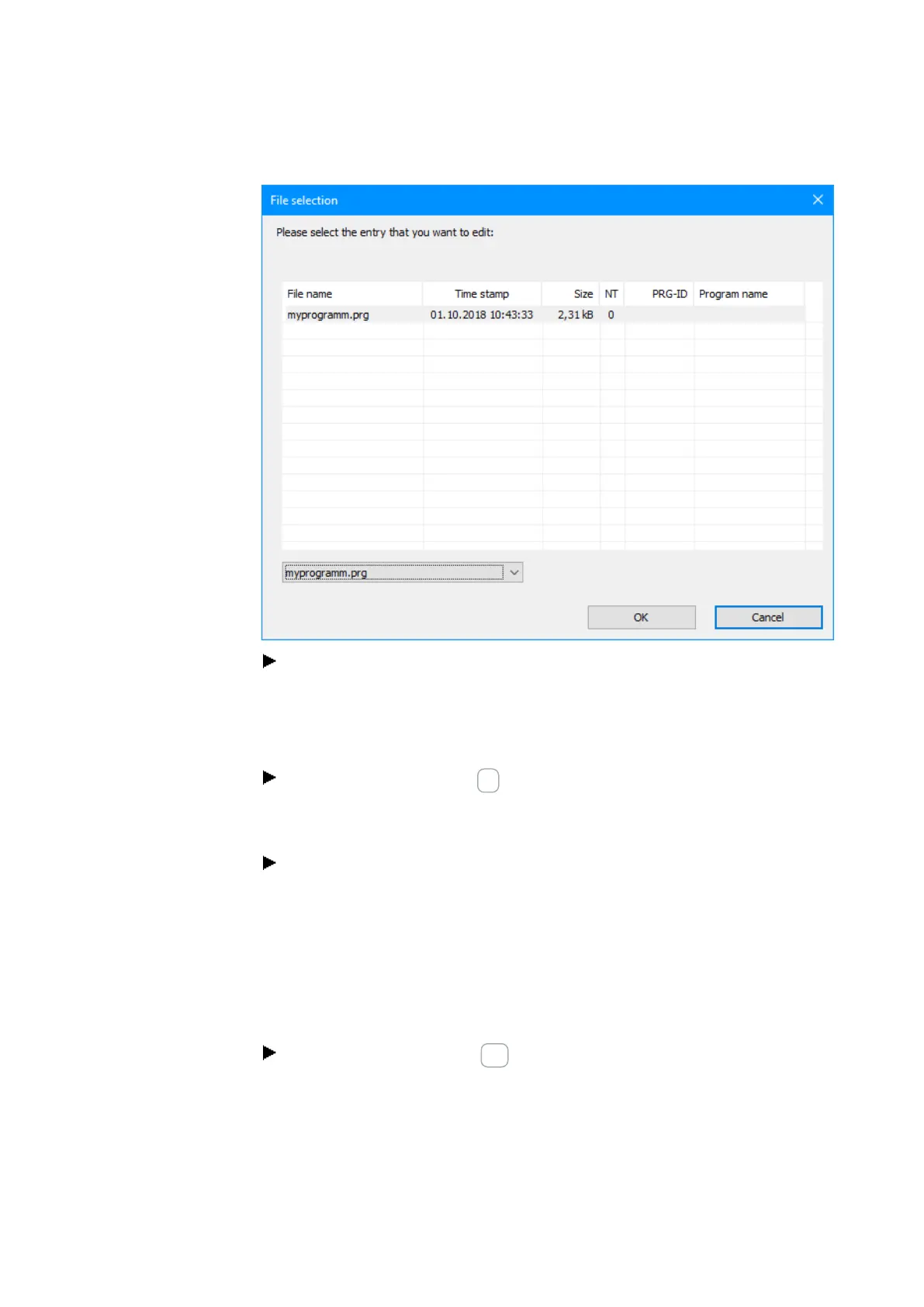

If the list does not show any files, this means that there are no programs on the
card.
Enter the name you want for the program into the drop-down menu, e.g., <test>.
This name can be different from the *.e70 file's name. You can also select a name
from the menu.
Confirm your selection with OK. This will transfer the program for the device selec-
ted in the Project view to the card.
If the project is a NET application, the "Selection of NET station" dialog box will appear.
Select the NET station with the program that you want to transfer to the microSD
memory card, e.g., <NET station NT1>.
A plausibility check will then be run – please refer to → "Running a plausibility check,"
page 1. If this plausibility check is completed successfully, the following prompt will
appear.
Setting a program as the starting program
"Do you want to enter the program as a start program on the card as well?"
If you confirm by clicking on YES, the program will be set as a starting program for
booting. Accordingly, a BOOT.TXT file that contains the name of the starting pro-
gram will be generated. In addition, the name of the starting program will appear in
the "Card setup" dialog box, in the Start program drop-down menu.
The .e70 program will be compiled into a .PRG program and shown in the list.
490
easyE4 11/18 MN050009 EN www.eaton.com
