6. Function blocks
6.1 Manufacturer function blocks

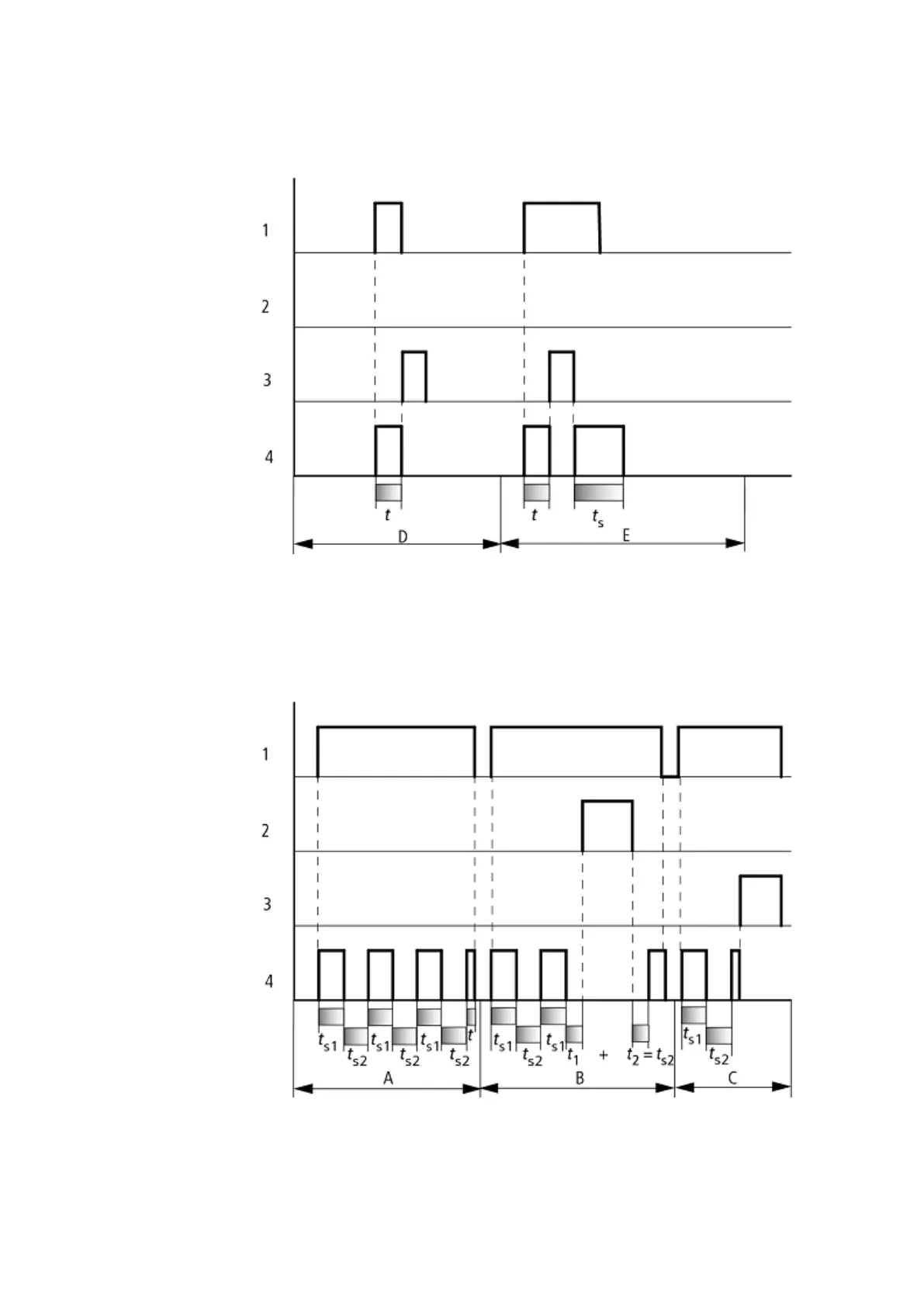

Figure 120: Signal diagram timing relay, single pulse 2
• Range D: The reset coil resets the timing relay.
• Range E: The reset coil resets the timing relay. The trigger coil is still energized after the reset coil is
disconnected, whilst the delay time runs down..
How the timing relay works with the flashing operating mode, synchronous and
asynchronous
Figure 121: Signal diagram timing relay, single pulse 1
1: Trigger coil T…EN
2: Stop coil T…ST
206
easyE4 11/18 MN050009 EN www.eaton.com
