2. Installation
2.3 Mounting
2.3.1.1 Installation on mounting rail
1. Position the base device against the mounting rail's upper lip in an inclined pos-
ition.
2. Lightly push the device down and against the mounting rail until it snaps into
place over the mounting rail's lower lip.
The device will clip into place automatically.

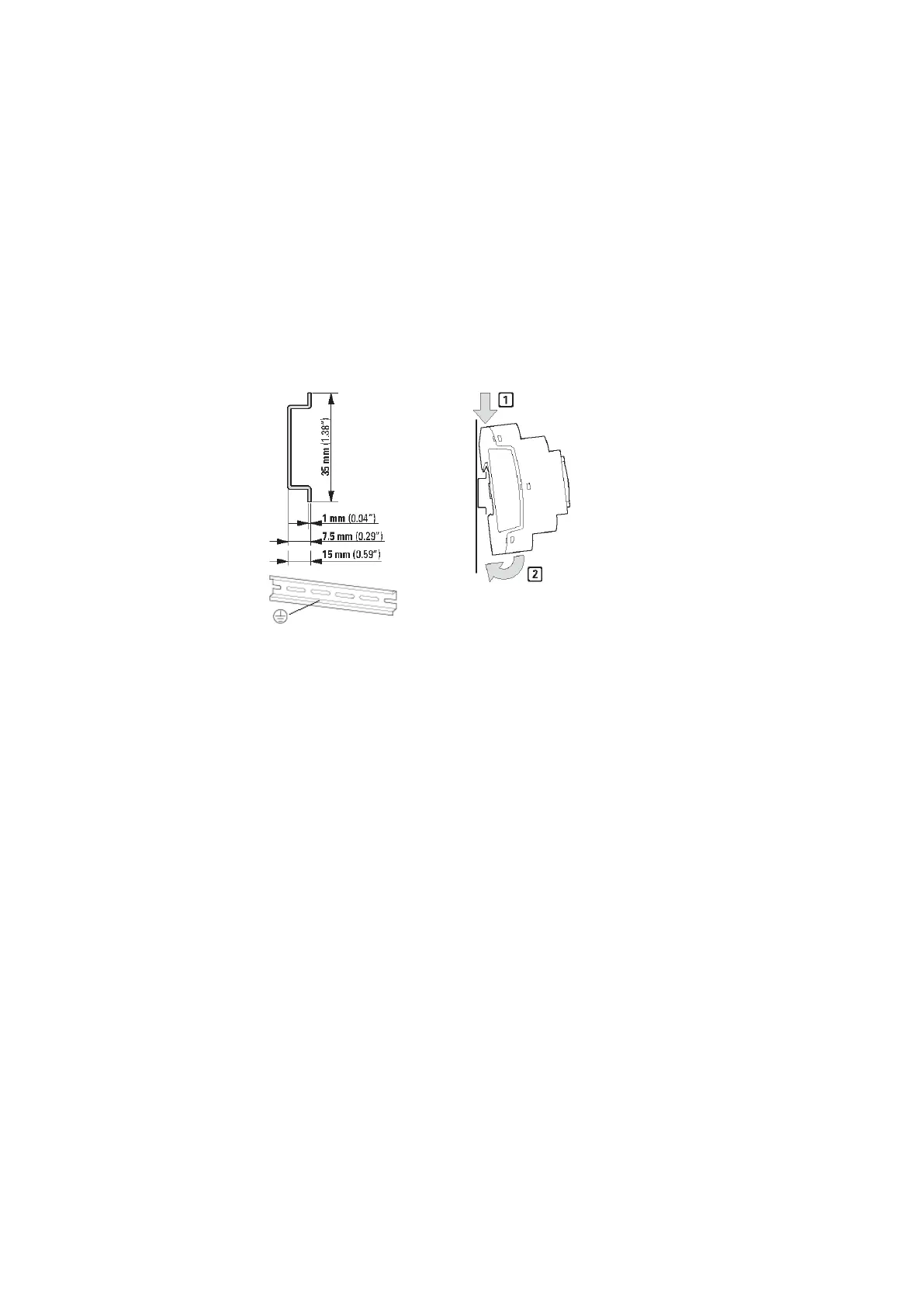

Figure 7: Installation on IEC/EN 60715 mounting rail
3. Check that the device is seated firmly.
The device is mounted vertically on a mounting rail in the same way.
