114 smart.Turn Units
2.9 Units—Milling, Face

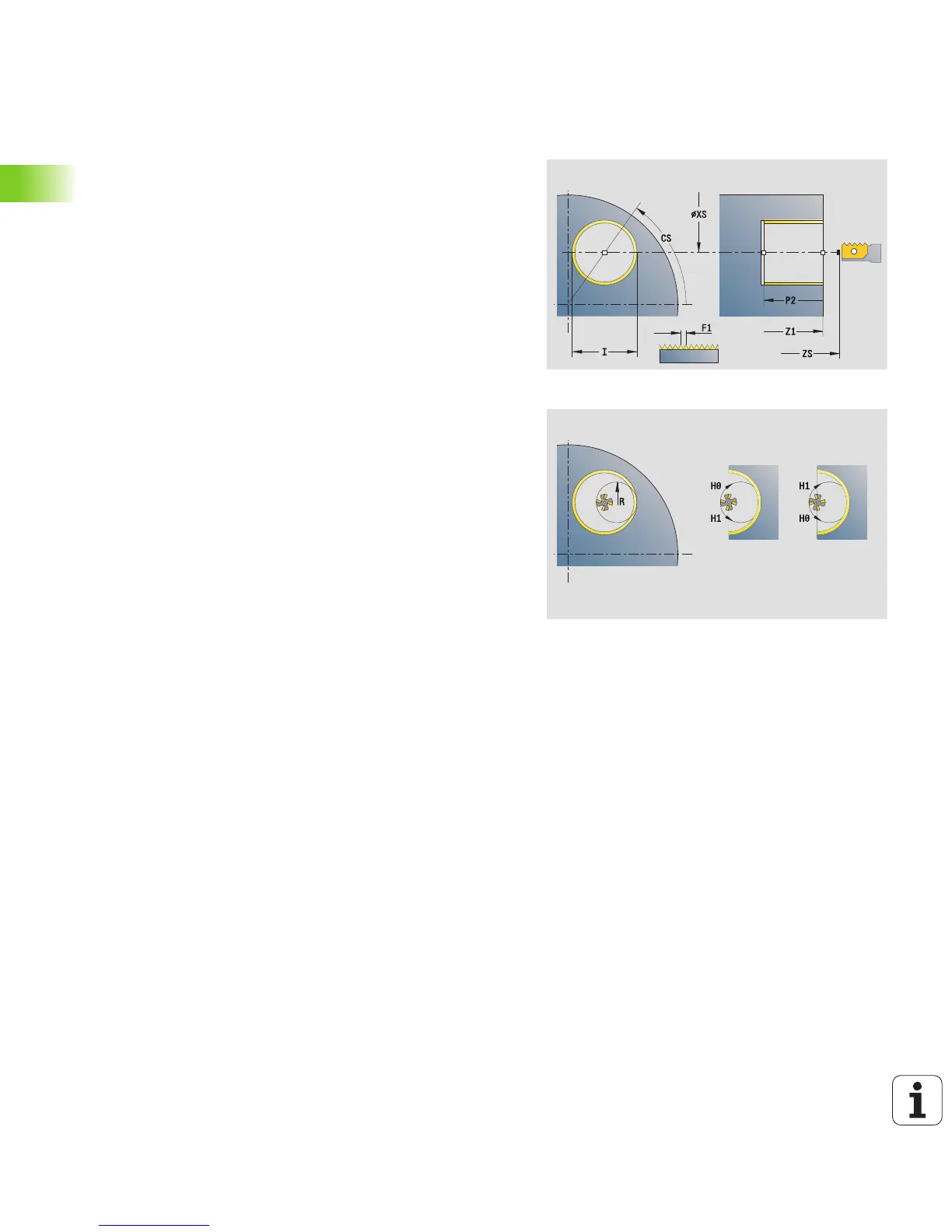

"Thread milling" unit
The unit mills a thread in existing holes.
Unit name: G799_Gewindefr_C / Cycle: G799 (see page 306)
Access to the technology database:
Machining operation: Finish-milling
Affected parameters: F, S
Position form
APP Approach see page 51
CS Approach position C
Z1 Start point drill (starting point of hole)
P2 Thread depth
I Thread diameter
F1 Thread pitch
Cycle form
J Direction of thread
0: Right-hand thread
1: Left-hand thread
H Mill cutting direction
0: Up-cut milling
1: Climb milling
R Approach radius
Further forms: see page 46
