HEIDENHAIN MANUALplus 620 391

5.2 Contours in the XY Plane

Linear slot in XY plane, G371-Geo

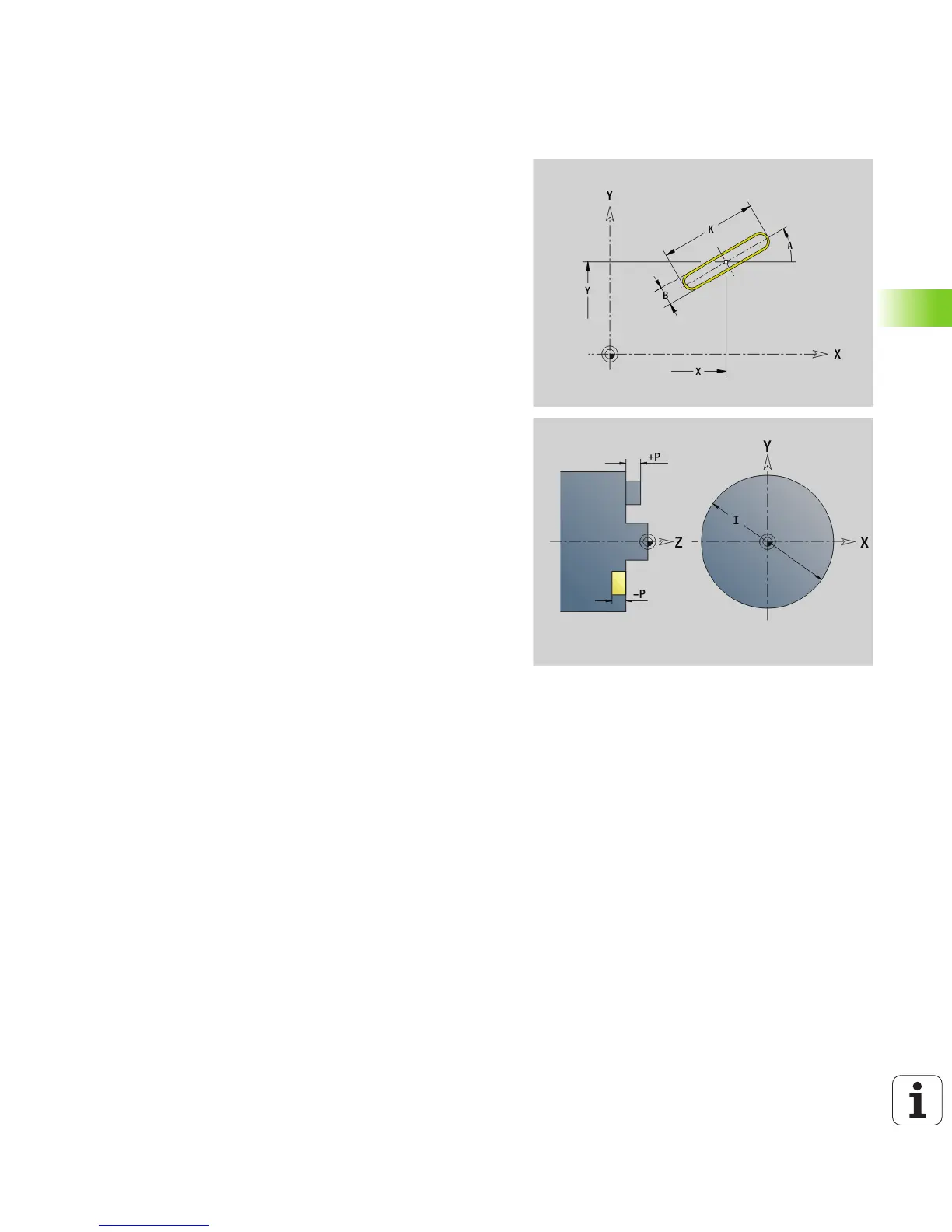

G371 defines the contour of a linear slot in the XY plane.

Parameters

X Center of slot (radius)

Y Center of slot

K Slot length

B Slot width

A Position angle (reference: positive X axis; default: 0°)

P Depth/height (default: “P” from G308)

 P<0: Pocket

 P>0: Island

I Limit diameter (as cutting limit)

 No entry: “X” from section code

 “I” overwrites “X” from section code
