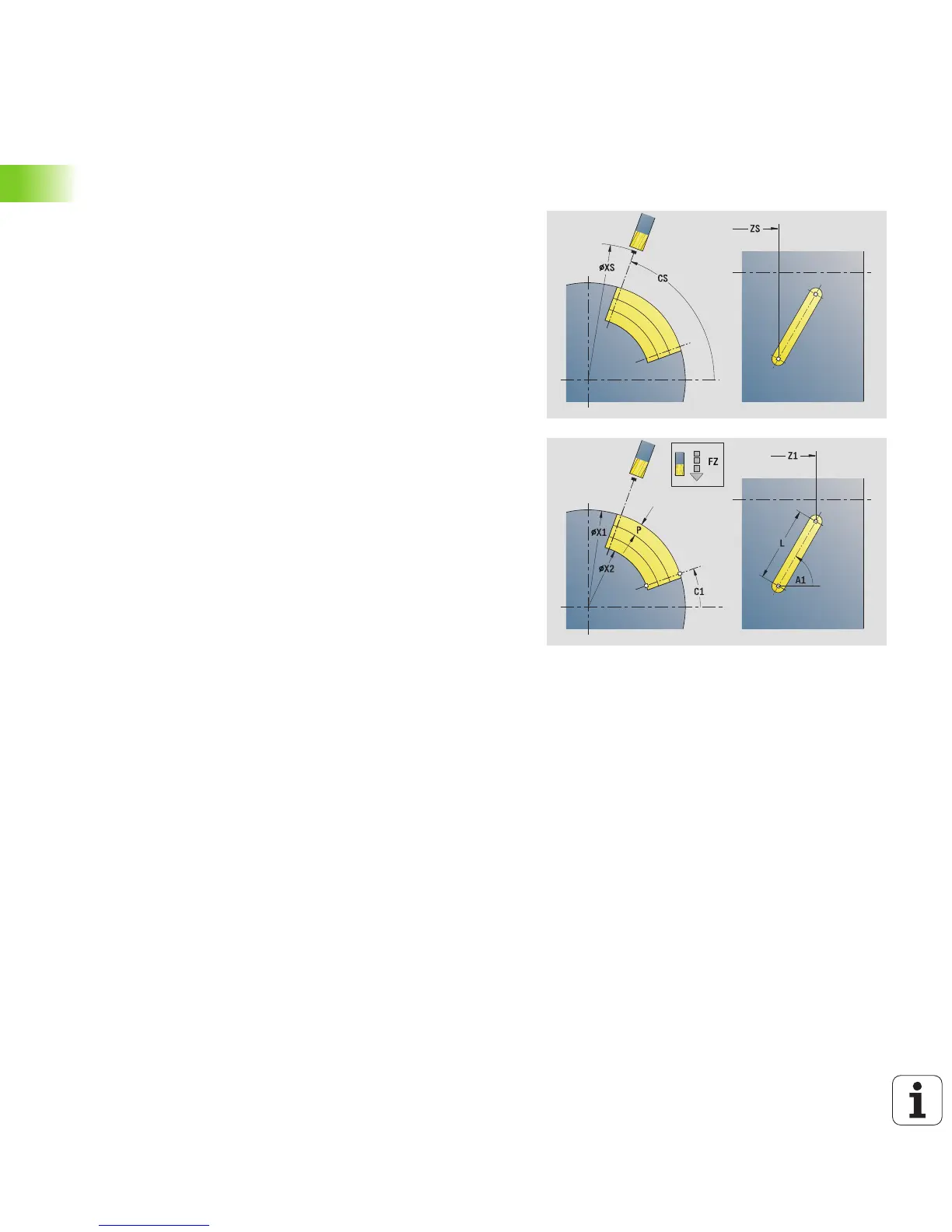

"Slot, lateral surface" unit
The unit mills a slot from the starting position to the end point on the
lateral surface. The slot width equals the diameter of the milling cutter.
Unit name: G792_Nut_MANT_C / Cycle: G792 (see page 318)
Access to the technology database:
 Machining operation: Milling
 Affected parameters: F, S, FZ, P
Pattern form
APP Approach see page 51
Cycle form
X1 Milling top edge (diameter value)
X2 Milling floor (diameter)
L Slot length
A1 Angle to Z axis
X1, C1 Polar slot target point
P Maximum infeed
FZ Infeed rate
Further forms: see page 46
