36 NC Programming
1.3 Program Section Code
1.3 Program Section Code
A new NC program is already provided with section codes. You can
add new codes or delete existing ones, depending on your program
requirements. An NC program must contain at least the MACHINING
and END section codes.

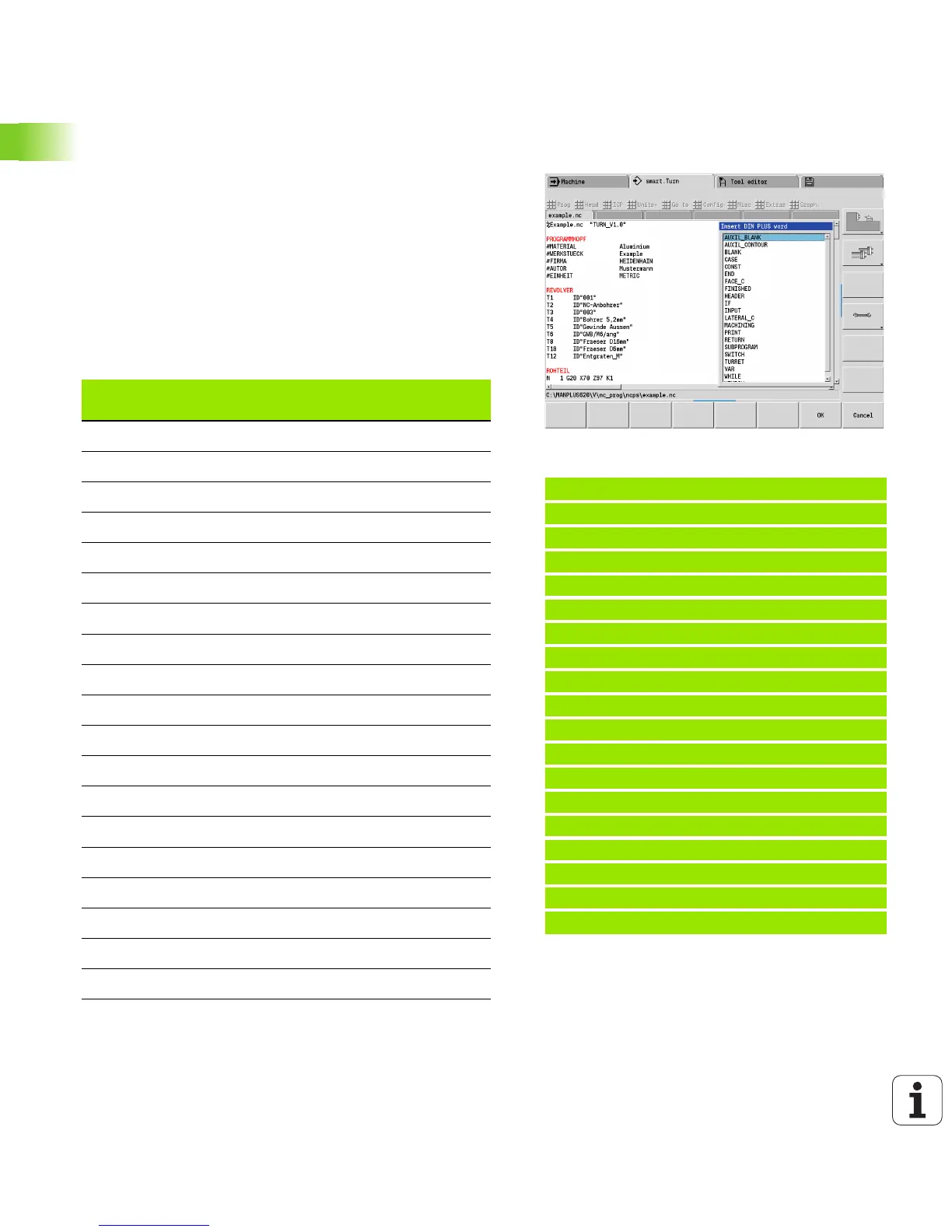

Further program section codes are available in the "Insert DIN PLUS
word" selection list ("Extras > DIN PLUS word" menu item). The
MANUALplus enters the program section code at the correct position
or at the current position.
German program section codes are used when German is set as the
conversational language. All other languages use English program
section codes.
Example: Program section codes
. . . [Sections of the contour description]
BLANK
N1 G20 X100 Z220 K1
FINISHED
N2 G0 X60 Z0
N3 G1 Z-70
. . .
FACE Z-25
N31 G308 ID“01“ P-10
N32 G402 Q5 K110 A0 Wi72 V2 XK0 YK0
N33 G300 B5 P10 W118 A0
N34 G309
FACE Z0
N35 G308 ID“02“ P-6
N36 G307 XK0 YK0 Q6 A0 K34.641
N37 G309
. . .
Overview of program section codes
German English
Program head
PROGRAMMKOPF HEADER Page 37
REVOLVER TURRET Page 37
Contour definition
ROHTEIL BLANK Page 38
FERTIGTEIL FINISHED Page 38
HILFSKONTUR AUXIL_CONTOUR Page 38
HILFSROHTEIL AUXIL_BLANK Page 38
C-axis contours
STIRN FACE_C Page 38
RUECKSEITE REAR_C Page 38
MANTEL LATERAL_C Page 38
Y-axis contours
STIRN_Y FACE_Y Page 39
RUECKSEITE_Y REAR_Y Page 39
MANTEL_Y LATERAL_Y Page 39
Workpiece machining
BEARBEITUNG MACHINING Page 39
ENDE END Page 39
