166 smart.Turn Units for the Y Axis
3.3 Units—Milling in Y Axis

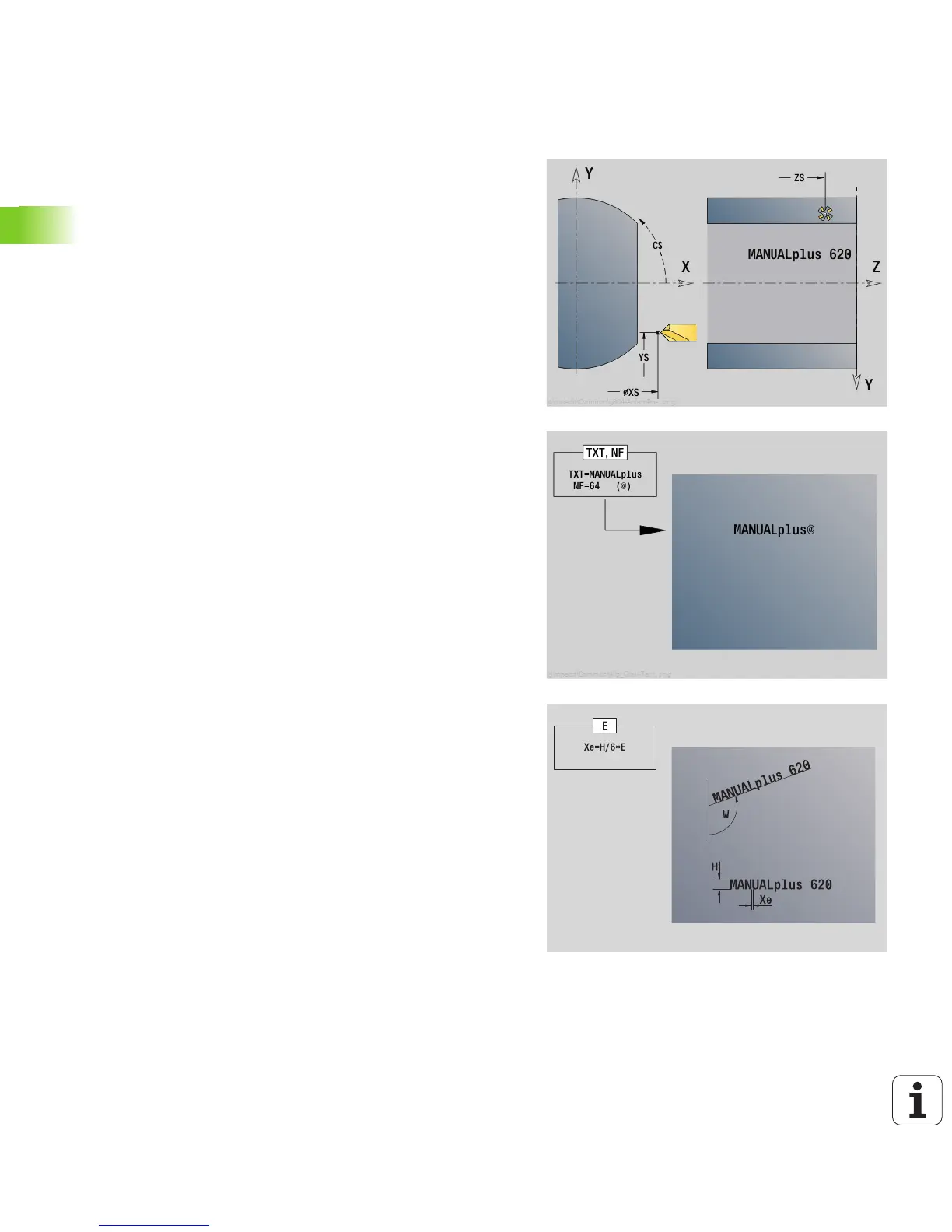

"Engraving in YZ plane" unit
The unit engraves character strings aligned linearly in the YZ plane.
Diacritics and special characters that you cannot enter in the
smart.Turn editor can be defined, character by character, in NF. If you
program "Continue from last text" (Q=1), tool change and pre-
positioning are suppressed. The technological data of the previous
engraving cycle apply.
Unit name: G804_GRA_Y_MANT / Cycle: G804 (see page 424)
Character set: see page 345
Access to the technology database:
 Machining mode: Engraving
 Affected parameters: F, S
Parameters on the Position form
Y, Z Start point
X Final point (diameter). X position, infeed depth during
milling.
RB Return plane
APP Approach: see page 51
DEP Departure: see page 51
Parameters on the Cycle form
TXT Text to be engraved
NF Character number (character to be engraved)
H Font height
E Distance factor (for calculation see figure)
W Inclination angle
Q Continue from last text
 0 (No): Engraving starts at the starting point
 1 (Yes): Engraving starts at the tool position
Further forms: see page 46
