4.7 Front and Rear Face Contours
Eccentric polygon on front/rear face G307-Geo

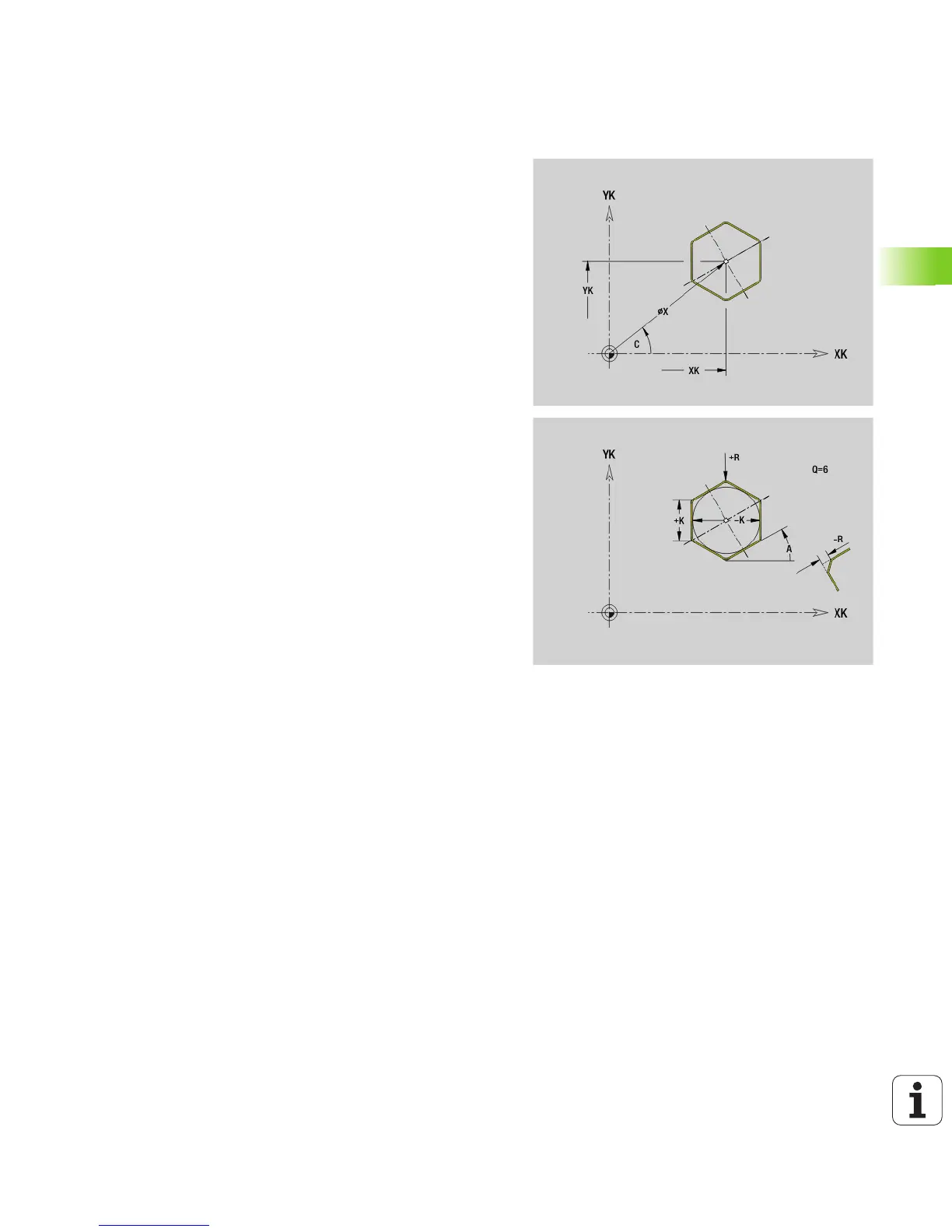

G307 defines a polygon in a contour on the front face/rear face.
Parameters
XK Center in Cartesian coordinates
YK Center in Cartesian coordinates
X Diameter (center point in polar coordinates)
C Angle (center point in polar coordinates)
A Angle of a polygon edge to XK axis (default: 0°)
Q Number of edges (Q > 2)
K Edge length
 K>0: Edge length
 K<0: Inside diameter of circle
R Chamfer/rounding arc (default: 0°)
 R>0: Radius of rounding arc
 R<0: Chamfer width
P Depth/height (default: “P” from G308)
 P<0: Pocket
 P>0: Island
