80 smart.Turn Units
2.5 Units—Drilling in C axis
"ICP boring/countersinking, C axis" unit
The unit machines a single hole or a hole pattern on the face or lateral
surface. Using ICP, you define the hole positions as well as further
details for boring or countersinking.
Unit name: G72_ICP_C / Cycle: G72 (see page 295)
Access to the technology database:
 Machining operation: Drilling
 Affected parameters: F, S
Pattern form
FK see page 48
APP Approach: see page 51
DEP Departure: see page 51

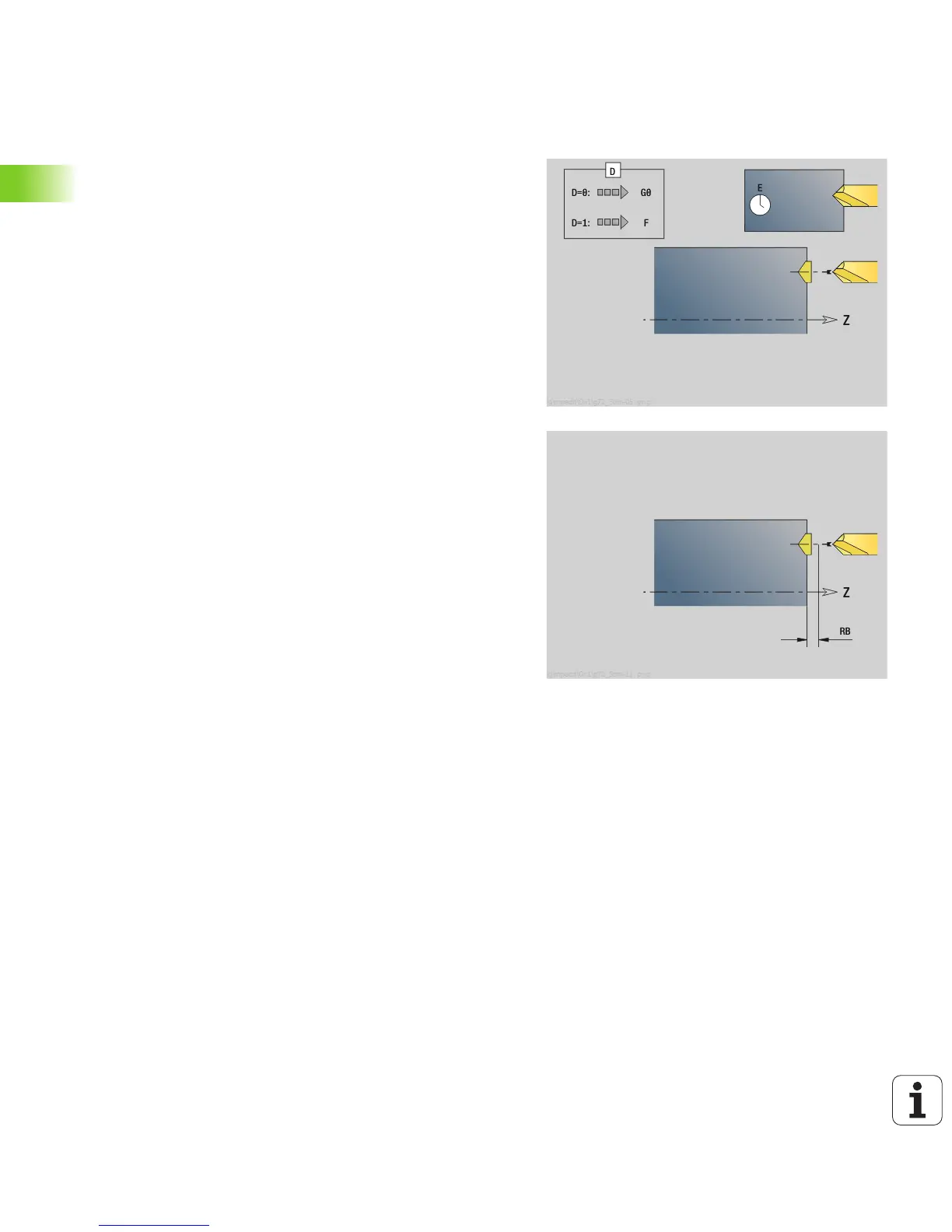

Cycle form
E Delay (dwell time at end of hole) (default: 0)
D Retraction at
 0: Rapid traverse
 1: Feed rate
RB Return plane (default: return to the starting position or to
the safety clearance)
Further forms: see page 46
