4.18 Contour Definitions in the Machining Section
Circular slot on lateral surface G312/G313

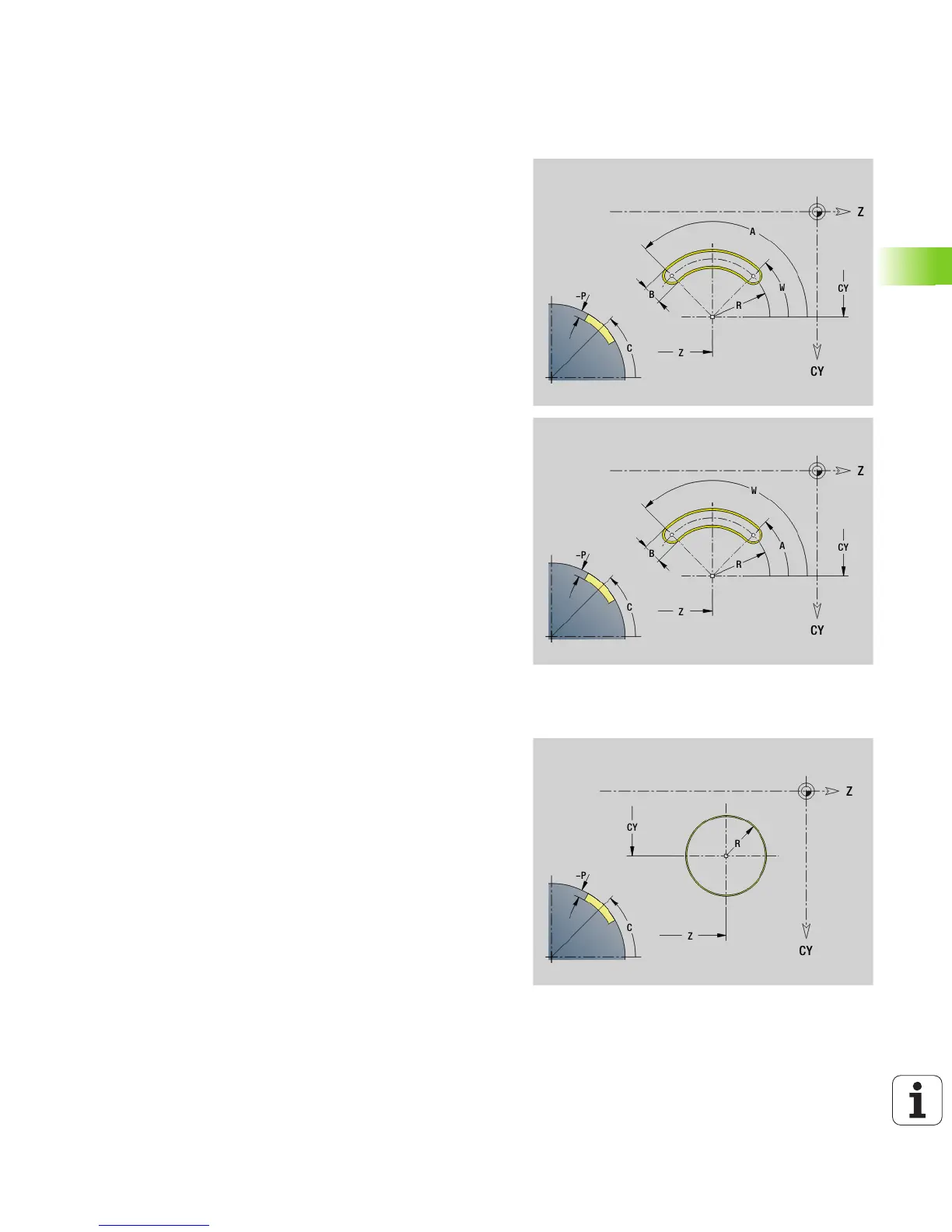

G312/G313 defines a circular slot in a lateral-surface contour. Program
this figure in conjunction with G840, G845 or G846.
 G312: Circular slot clockwise
 G313: Circular slot counterclockwise
Full circle, lateral surface G314
G314 defines a full circle in a lateral-surface contour. Program this
figure in conjunction with G840, G845 or G846.
Parameters
ZCenter
CY Center as linear value; reference: unrolled reference diameter
C Center (angle)
R Radius; reference: center point path of the slot
A Starting angle; reference: Z axis (default: 0°)
W Final angle; reference: Z axis
B Slot width
P Depth of pocket
Parameters
ZCenter
CY Center as linear value; reference: unrolled reference diameter
C Center (angle)
R Radius
P Depth of pocket
