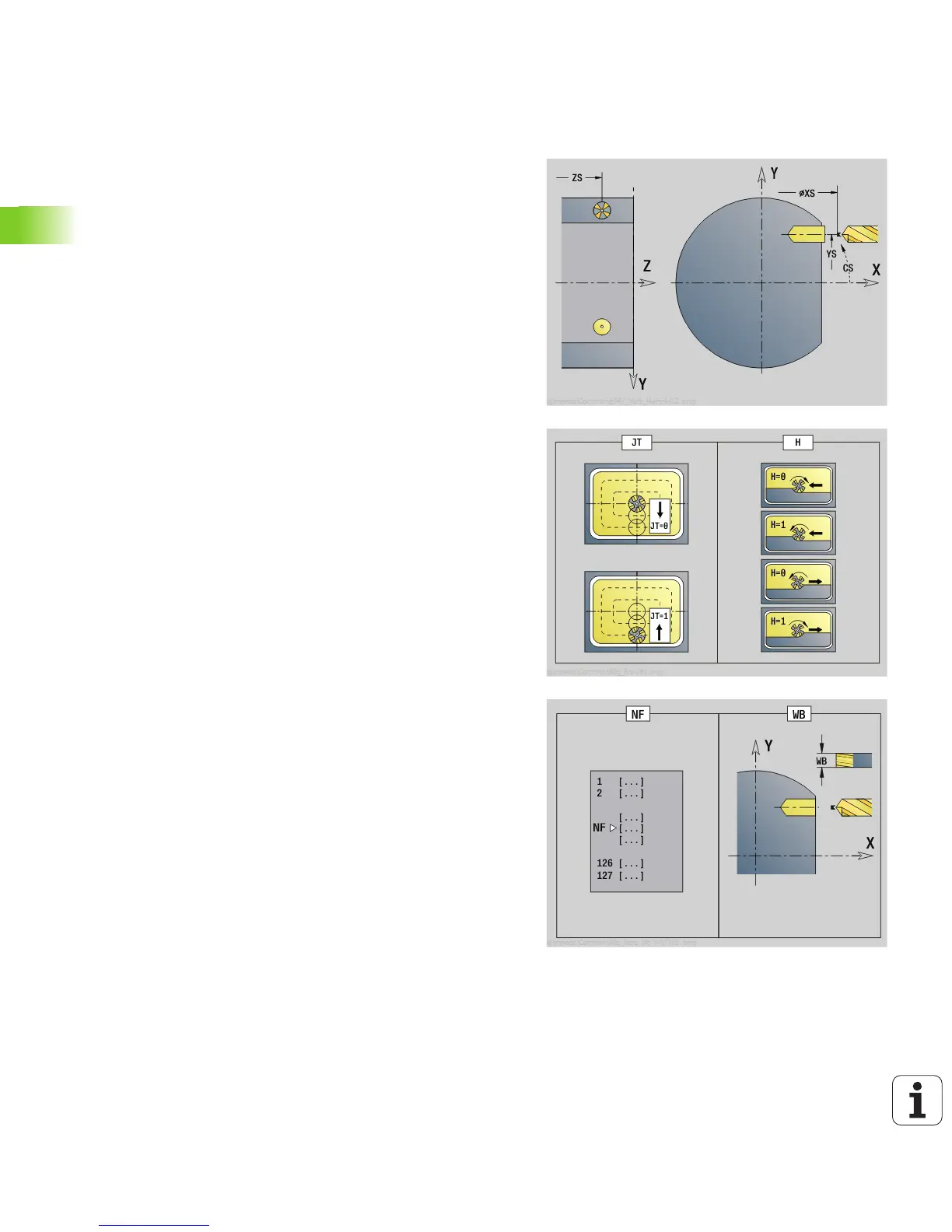

152 smart.Turn Units for the Y Axis
3.2 Units—Predrilling in Y axis
"Predrill, pocket mill, ICP in YZ plane" unit
The unit determines the hole position and machines the hole. The
subsequent milling cycle obtains the hole position from the reference
stored in NF. If the pocket consists of multiple sections, the unit
machines a hole for each section.
Unit name: DRILL_MAN_845_Y / Cycles: G845 A1 (see page 338)
Access to the technology database:
Machining mode: Drilling
Affected parameters: F, S
Parameters on the Contour form
FK see page 48
X1 Milling top edge (diameter value)
P2 Depth of contour
APP Approach: see page 51
DEP Departure: see page 51
Parameters on the Cycle form
JT Machining direction:
0: From the inside out (from the inside towards the
outside)
1: From the outside in (from the outside towards the
inside)
H Mill cutting direction
0: Up-cut milling
1: Climb milling
P Maximum approach (infeed)
I Infeed-direction oversize
K Contour-parallel oversize
U Overlap factor (default: 0.5)
WB Cutter diameter
NF Position mark
E Delay (dwell time at end of hole) (default: 0)
D Retraction at
0: Rapid traverse
1: Feed rate
V Feed rate reduction
0: Without reduction
1: At end of the hole
2: At start of the hole
3: At start and end of the hole
AB Spot drilling / through drilling length (distance for feed rate
reduction)
RB Return plane (diameter value)
Further forms: see page 46
