HEIDENHAIN MANUALPLUS 620 User Manual

270 ISO Programming
4.18 Contour Definitions in the Machining Section

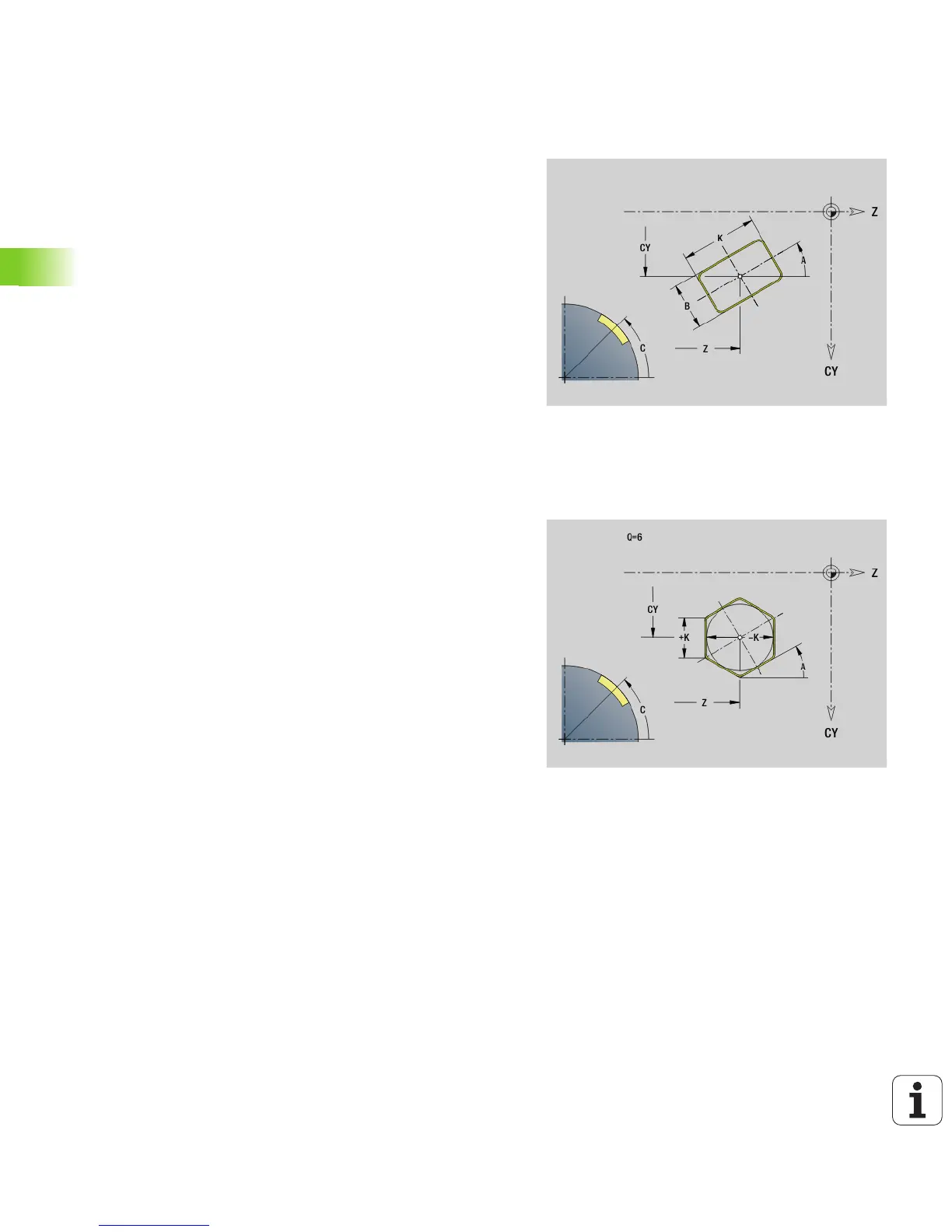

Rectangle, lateral surface G315
G315 defines a rectangle in a lateral-surface contour. Program this
figure in conjunction with G840, G845 or G846.
Eccentric polygon, lateral surface G317
G317 defines a polygon in a lateral-surface contour. Program this
figure in conjunction with G840, G845 or G846.
Parameters
Z Center
CY Center as linear value; reference: unrolled reference diameter
C Center (angle)
A Angle to Z axis (default: 0°)
K Length
BWidth
R Chamfer/rounding arc (default: 0°)
 R>0: Radius of rounding arc
 R<0: Chamfer width
P Depth of pocket
Parameters
Z Center
CY Center as linear value; reference: unrolled reference diameter
C Center (angle)
Q Number of edges (Q > 2)
A Angle to Z axis (default: 0°)
K Edge length
 K>0: Edge length
 K<0: Inside diameter of circle
R Chamfer/rounding arc (default: 0°)
 R>0: Radius of rounding arc
 R<0: Chamfer width
P Depth of pocket
