HEIDENHAIN MANUALplus 620 289
4.21 Undercut Cycles
Blocks following the cycle call

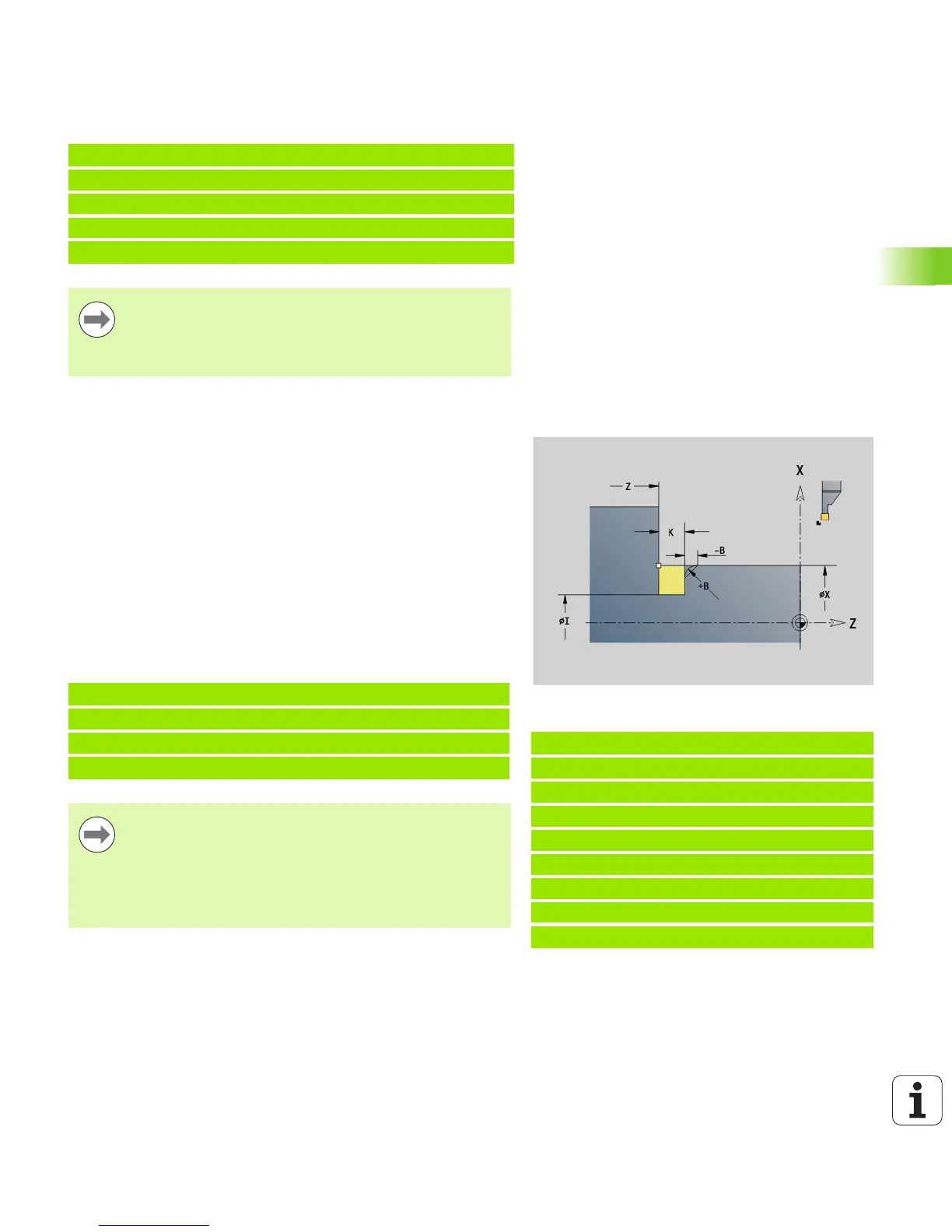

Undercut type U G856
G856 machines an undercut and finishes the adjoining plane surface.
A chamfer or rounding (optional) can be machined.
Tool position at the end of the cycle: Cycle starting point
Blocks following the cycle call
N.. G853 FP.. I.. K.. W.. /Cycle call
N.. G0 X.. Z.. /Corner point of cylinder start chamfer
N.. G1 Z.. /Undercut corner
N.. G1 X.. /End point of plane surface
N.. G80 /End of contour definition
 Undercuts can only be executed in orthogonal, paraxial
contour corners along the longitudinal axis.
 Cutting radius compensation: Active.
 Oversizes: are not taken into account.
Example: G856
%856.nc
[G856]
N1 T3 G95 F0.23 G96 S248 M3
N2 G0 X60 Z2
N3 G856 I47 K7 B1
N4 G0 X50 Z-30
N5 G1 X60
N6 G80
END
Parameters
I Undercut depth (default: value from standard table)
K Undercut length (default: value from standard table)
B Chamfer/rounding:
 B>0: Radius of rounding
 B<0: Chamfer width
N.. G856 I.. K.. /Cycle call
N.. G0 X.. Z.. /Undercut corner
N.. G1 X.. /End point of plane surface
N.. G80 /End of contour definition
 Undercuts can only be executed in orthogonal, paraxial
contour corners along the longitudinal axis.
 Cutting radius compensation: Active.
 Oversizes: are not taken into account.
 If the cutting width of the tool is not defined, the control
assumes that the tool's cutting width equals K.
